DS18® 6PRO300MR-4 - PRO High Sensitivity Professional Mid-Range Loudspeaker

2 reviews|Item # mpn5242749244
Authorized Dealer
$59.95
OUT OF STOCK - Unavailable until further notice
Have a Question? Ask a Specialist
888-584-4732Live Chat

Vehicle Fitment

This part is universal

Specifications

SKU
6PRO300MR-4
Nominal Diameter
6.5" / 165mm
Nominal Impedance
4 Ohms
RMS Power Handling
150W
MAX Power Handling
300W
Sensitivity (1w/1m)
102dB
Frequency Response
100Hz-12.5KHz
Recommended HI Pass Crossover
160Hz
Sold in Pair or Single
Single
Grill Included
No
Interleaved Sandwich Voice coil (ISV)
No
Demodulating Rings
Copper Ring
Improved Heat Dissipation
No
Cone Shape
Curvilinear
Speaker Terminals
Push 8ga
Voice Coil Diameter
1.25" / 31.7mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Paper
Dust Cap Material
Paper
Bullet Material
N/A
Bullet Color/Finish
N/A
Surround Material
Cloth
Spider Diameter
4" / 102mm
Leads Connection Type
Spider Crossed
Basket Material
Steel
Basket Color/Finish
Black
Magnet Material
Ferrite
Magnet Weight
25 Oz
Displacement Volume
0.28L / 0.01ft3
Equivalent Volume Vas
8.85L / 0.312ft3
Excursion (one way) Xmax
0.95mm
Free Air Resonance Fs
118Hz
Mechanical Factor Qms
4.73
Electrical Factor Qes
0.64
Total Factor Qts
0.57
Mechanical Mass Mms
7.36g
Mechanical Compliance Cms
0.25mm/N
BL Factor BL
5.31
Voice Coil Inductance Le
0.03mH
Cone Area Sd
158.37cm2
DC Resistance Re
3.3ohms
Mechanical Mass w/o air Mmd
7.1g

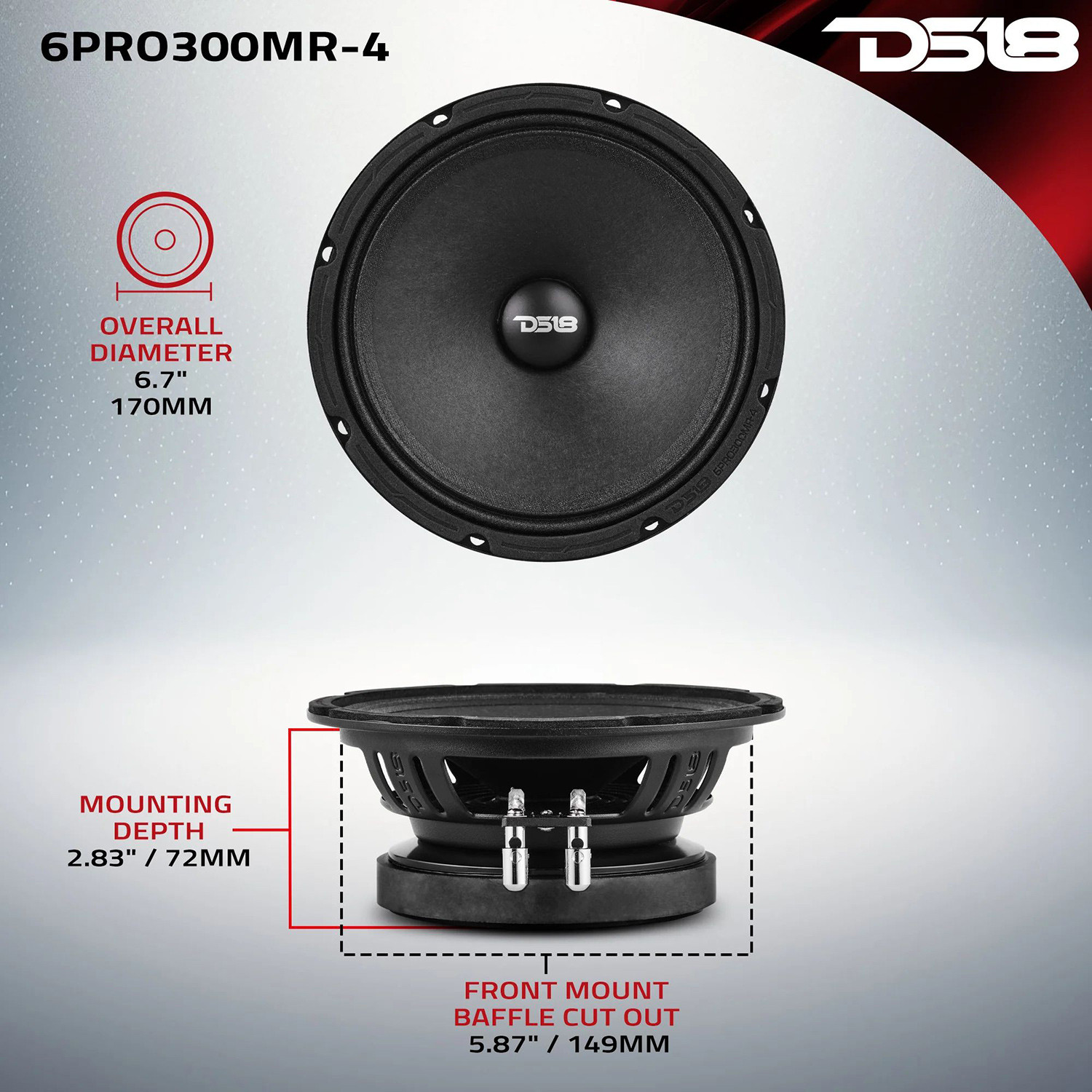

Overall Diameter
6.7" / 170mm
Overall Depth
3" / 78mm
Front Mount Baffle Cutout
5.87" / 149mm
Mounting Depth
2.83" / 72mm
Motor Diameter
4.72" / 120mm

Features

  • 6.5" Mid-Range
  • MAX Power: 300 Watts
  • RMS Power: 150 Watts
  • Impedance: 4 Ohm
  • Ferrite Magnet
  • 102dB

Product Details

Universal PRO High Sensitivity Professional Mid-Range Loudspeaker (6PRO300MR-4) by DS18®. PRO 6.5" High Sensitivity Professional Mid-Range Loudspeaker 150 Watts Rms 4-Ohm. 150 Watts Rms 4-Ohm. DS18 6PRO300MR-4 . Get superior sound with DS18’s 6PRO300MR-4! . With its 6.5" nominal diameter and 4 OHMS nominal impedance, the 6PRO300MR-4 delivers exceptional performance and clarity. The RMS power handling of 150W and MAX power handling of 300W, guarantee powerful sound reproduction. One standout feature of DS18’s 6PRO300MR-4 is its high sensitivity rating of 102 dB, allowing it to effortlessly fill any space with rich, immersive sound. The frequency response range of 100Hz-12.5KHz ensures that every beat is reproduced accurately. What sets the 6PRO300MR-4 apart is its demodulating rings made of copper. These rings play a crucial role in substantially reducing harmonic and intermodulation distortion associated with voice coil displacement. They also minimize the modulation of magnetic flux during the movement of the voice coil, ensuring a more linear variation of system inductances as input current varies. This results in a cleaner sound output, providing an enhanced audio experience. The curvilinear cone shape enhances overall dispersion while maintaining optimal performance. The push speaker terminals make installation hassle-free, allowing for secure connections without compromising on sound quality. DS18’s 6PRO300MR-4 has one of the most impressive motor configurations in our catalog. Its 1.25" voice coil diameter, made of Kapton material, ensures excellent heat dissipation for extended playtime without any compromise in performance. Experience audio excellence with DS18’s 6PRO300MR-4!

Brand:
Part Number:
6PRO300MR-4
UPC:
810097264403
Alternate MPN:
6PRO300MR4

Reviews

(2)
Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.
/5
1-2 of 2 Reviews
5 of 5
Great Speakers
Great speakers, they sound amazing. Originally bought to replace the front speakers in my truck, both blown, the rear speakers still work and sound great. They are factory. But now I'm thinking about replacing them with DS18s as well because they sound so good. Don't fret when you get them delivered, they don't come with a plug. Simply cutting the plug off of the wiring in the truck, stripping the wire and wrapping around the piece of metal on the speaker where you'd think the plug would be does the trick. I would recommend these to anyone, and would be my first choice if I ever get another vehicle. And not to mention the price. I was amazed at how little they cost me, the factory speakers cost more than these! I'm rocking the bumper sticker they came with!
DS18® - Pro GM Series 6-1/2" 580W 8 Ohm Midrange Speaker with Bullet Diffuser
Posted by Braley (Shelbyville, MI) / July 25, 20222000 Chevy Silverado 2500
1 of 5
Sad
It can't handle power sad 500 watts cerwin vaga abt to pop it.
DS18® - Pro Series 8" 500W 4 Ohm Midrange Speaker with Bullet Diffuser
Posted by Anthony J (Eureka, CA) / July 18, 2021
