DS18® - GEN-X 6.5" 2-Way Component Set Speaker System DS18® - GEN-X 6.5" 2-Way Component Set Speaker System DS18® - GEN-X 6.5" 2-Way Component Set Speaker System DS18® - GEN-X 6.5" 2-Way Component Set Speaker System DS18® - GEN-X 6.5" 2-Way Component Set Speaker System

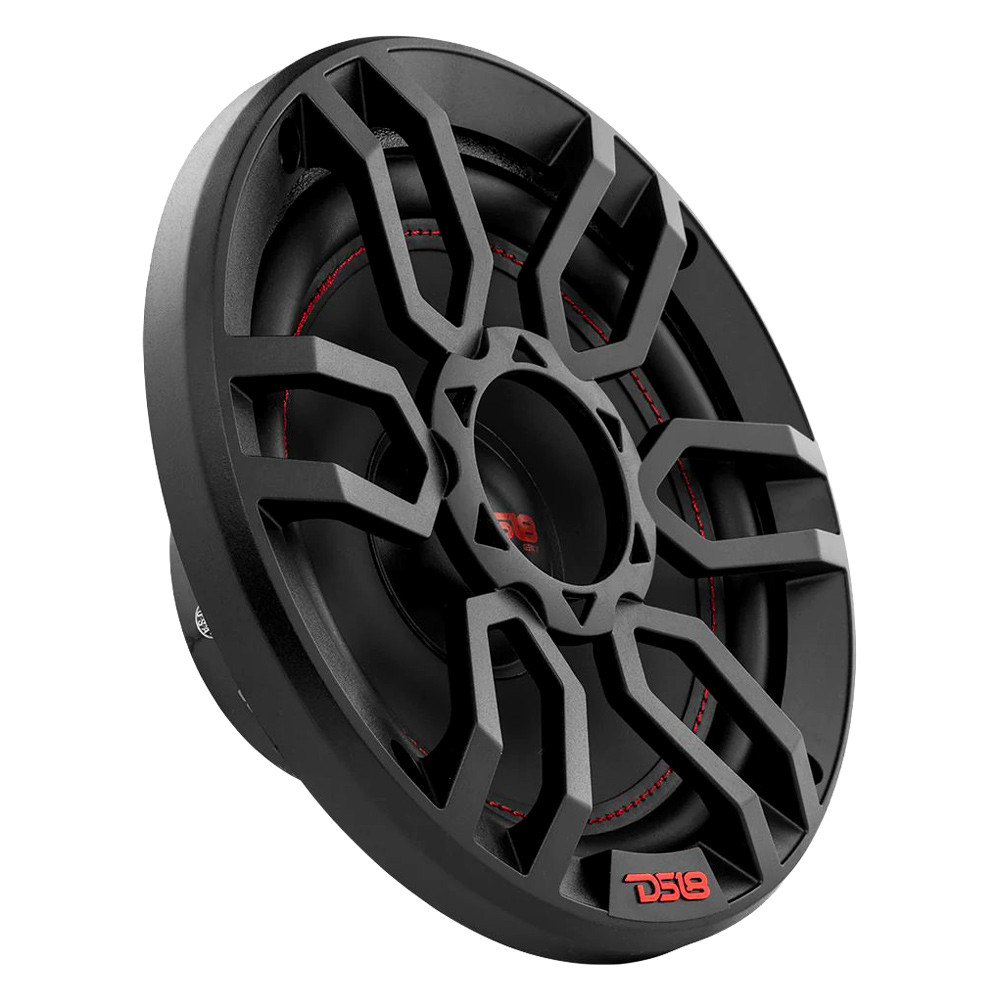

DS18® G6.5XC - GEN-X 6.5" 2-Way Component Set Speaker System

0 reviews|Item # mpn5242749359

Universal Fit

Not Vehicle Specific

Authorized Dealer

$114.95

In Stock (284) - Ships in 2 to 3 days

Have a Question? Ask a Specialist

888-584-4732Live Chat

Vehicle Fitment

This part is universal

Specifications

SKU	G6.5XC
Nominal Diameter	6.5" / 165mm
Nominal Impedance	4 Ohms
RMS Power Handling	50Watts
MAX Power Handling	150Watts
Sensitivity (1w/1m)	86dB
Frequency Response	35Hz-20KHz
Recommended Hi Pass Crossover	60HZ
Number of Ways	2
Pair or Single	Pair
Grill Included	Yes
Voice Coil Diameter	1" / 25.5mm
Voice Coil Former Material	ASV
Winding Material	EISV
Cone Material	Paper
Surround Material	Rubber
Basket Material	Steel
Basket Color	Black Matte
Magnet Material	Barium Ferrite
Magnet Weight	9.87oz / 280g
Voice Coil Diameter_1	1" / 25.5mm
VC Former Material	ASV
Winding Material_1	EISVM

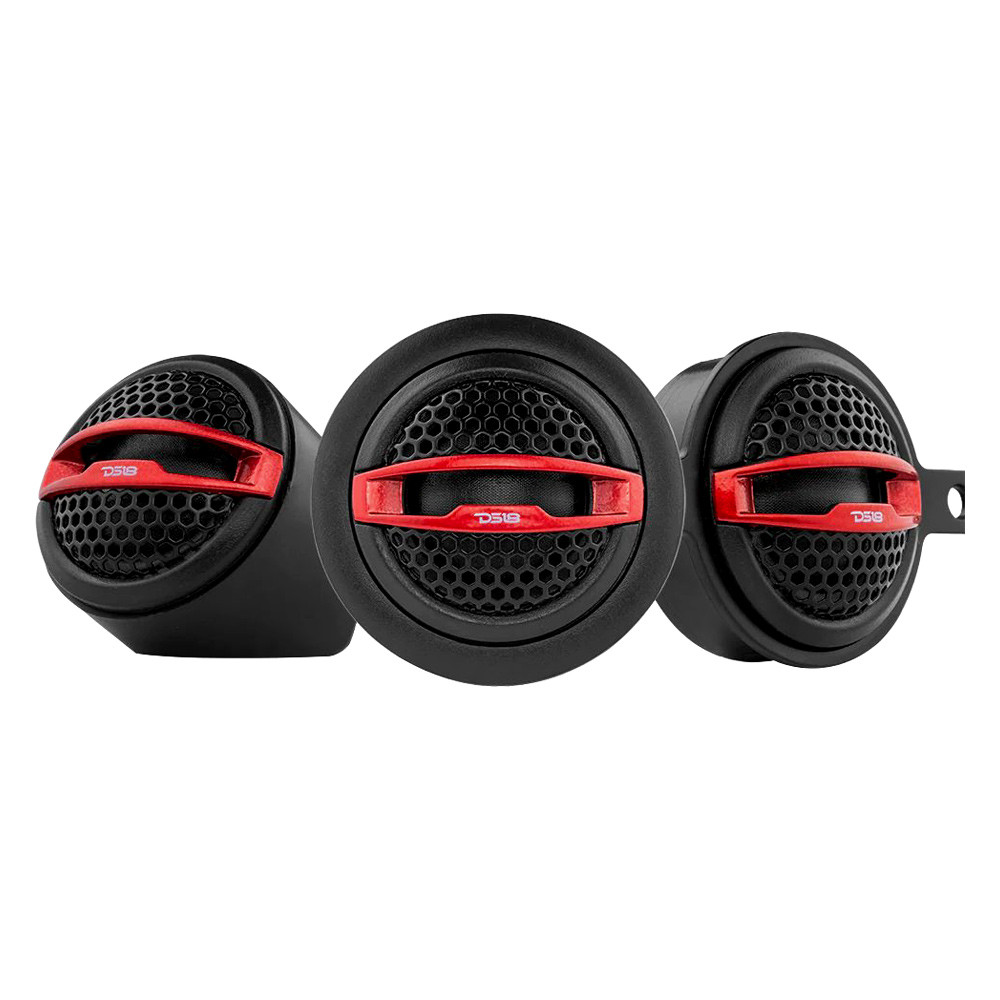

Diaphragm Material	Silk
Magnet Material_1	Neodymium
Magnet Weight_1	8.7g
Vas	9.47L / 0.33ft3
Xmax	2.7mm
Fs	72Hz
Qms	4.5
Qes	1.47
Qts	1.1
Mms	13.8g
Cms	345mm/N
BL	4
Le	172uH
Sd	136.8cm2
Re	3.7 Ohms
Mmd	12g

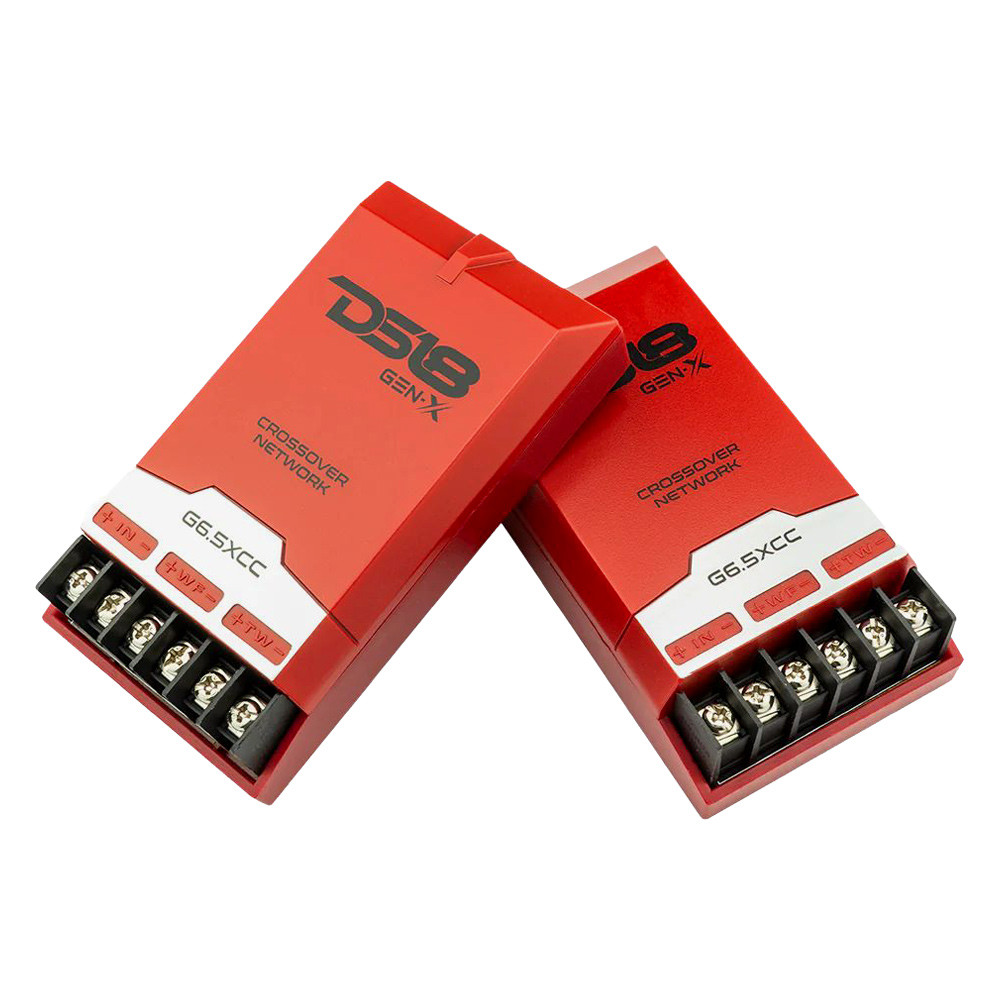

Passive Crossover Ways	2 (Woofer / Tweeter)
Frequency Crossover Point	3.5KHz
Power Handling	400W
Cut-Off Slope	12dB/Oct
Capacitor Type	Metal Film
Coil Type	Inductor
Terminal Type	Screw
Housing Material	ABS

Features

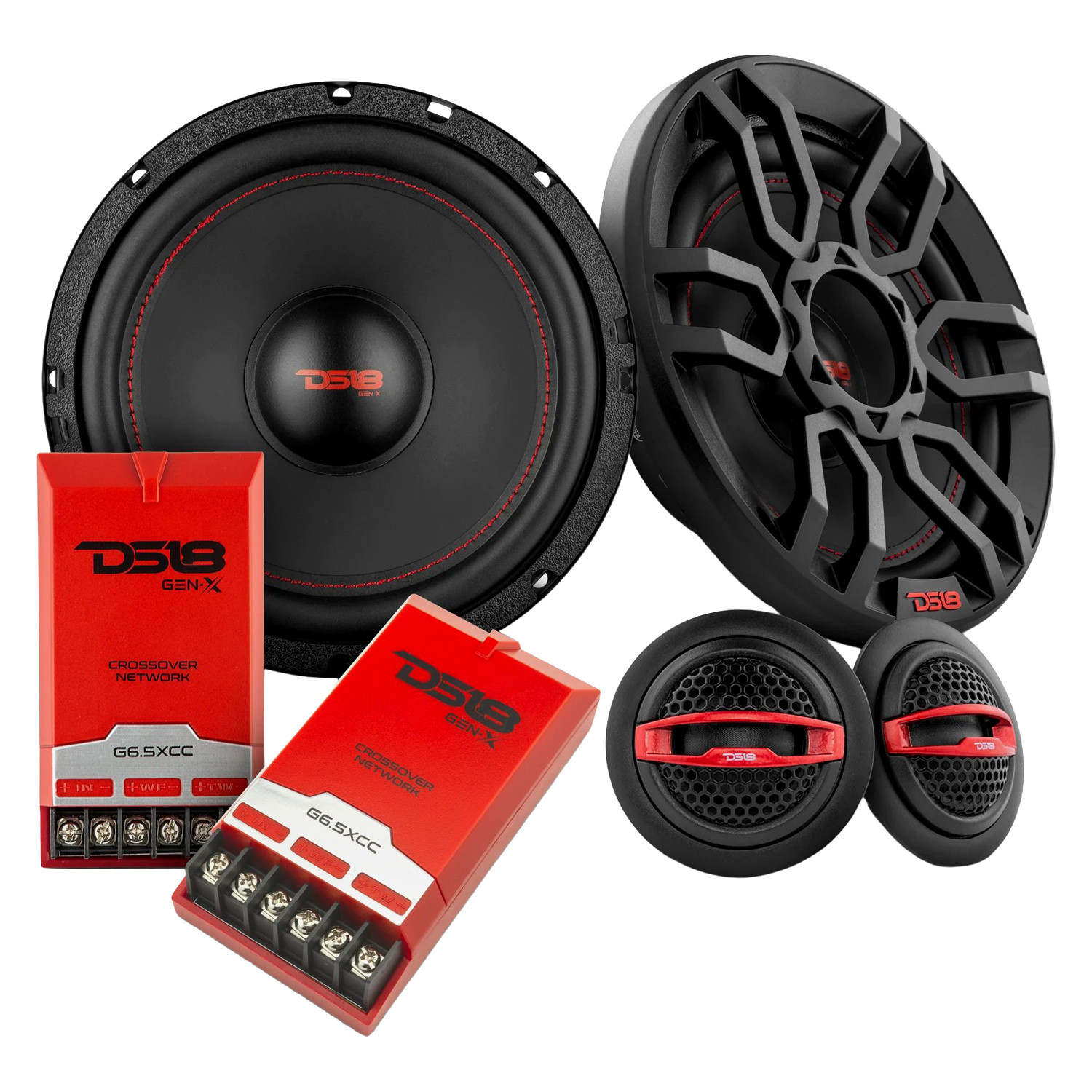

6.5" 2-Way Component
MAX Power: 150 Watts
RMS Power: 50 Watts
Impedance: 4 Ohm ~ 86db
Barium Ferrite & Neodymium Magnets
Pair ~ Crossovers & Grills Included

Product Details

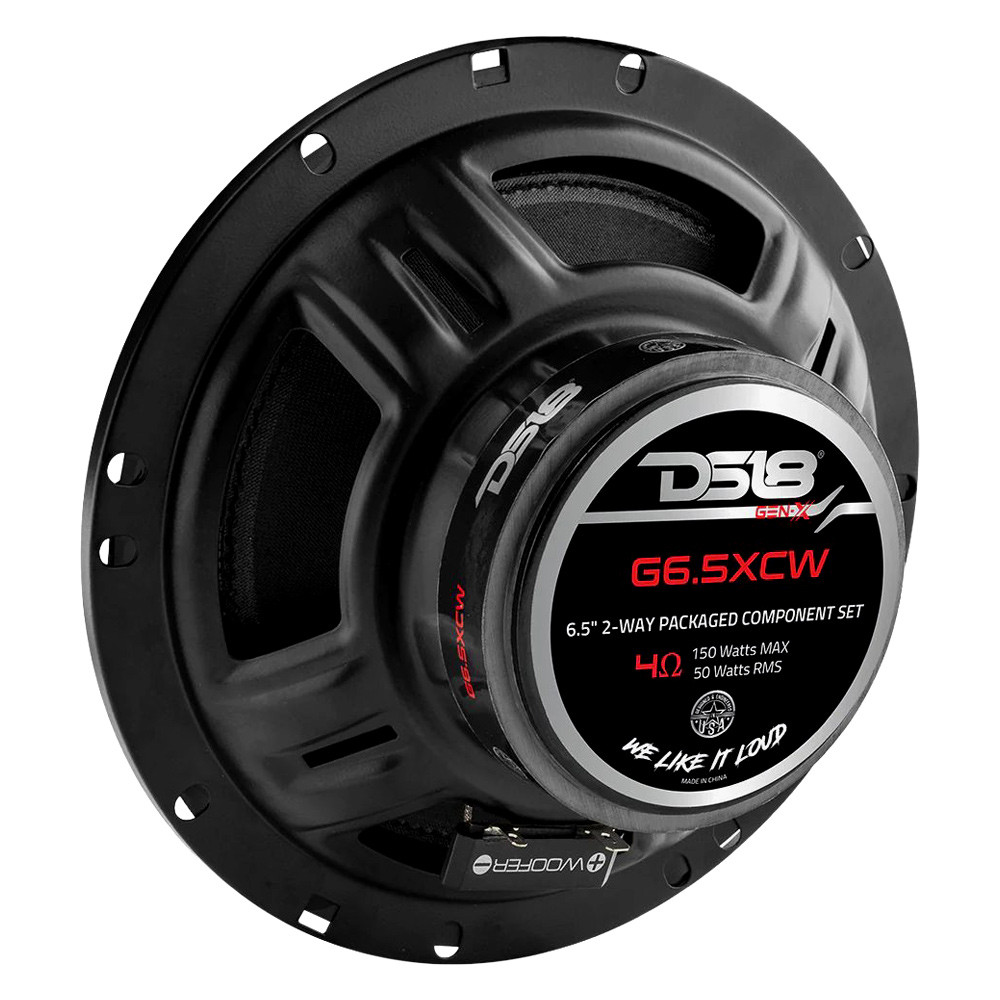

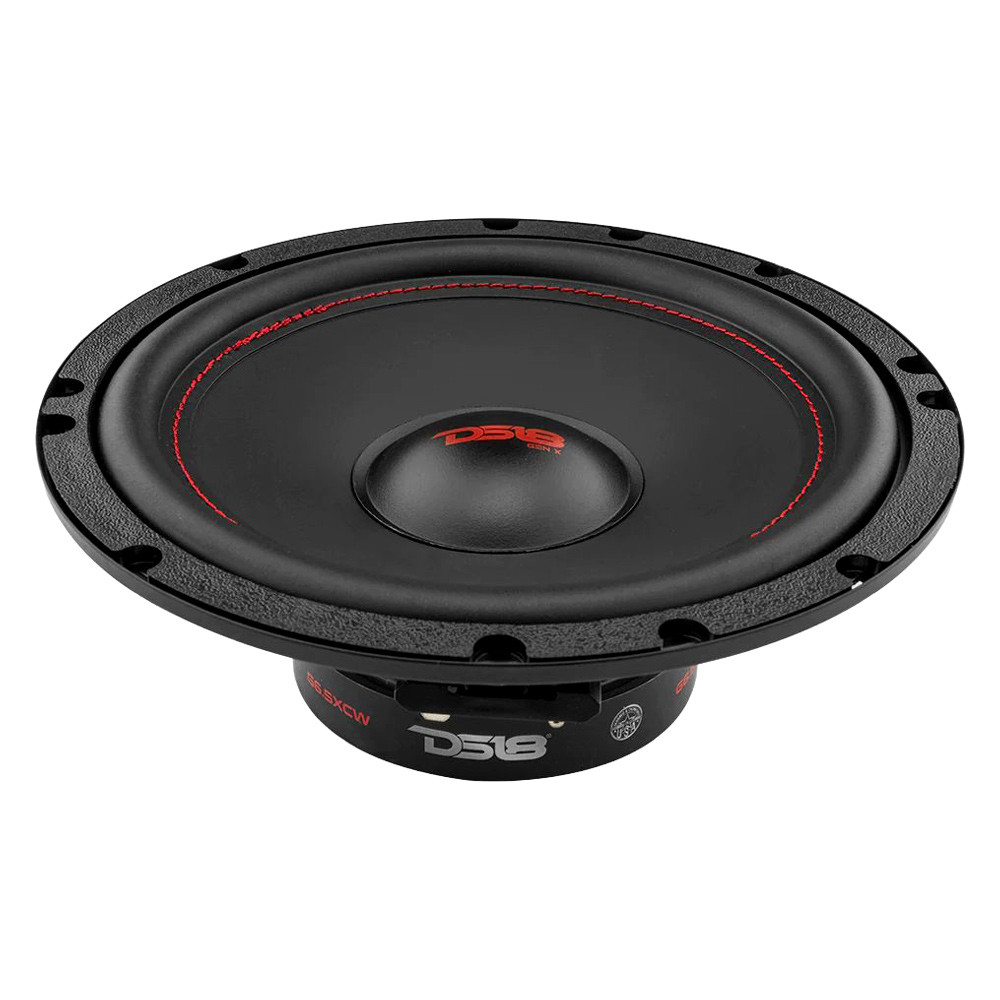

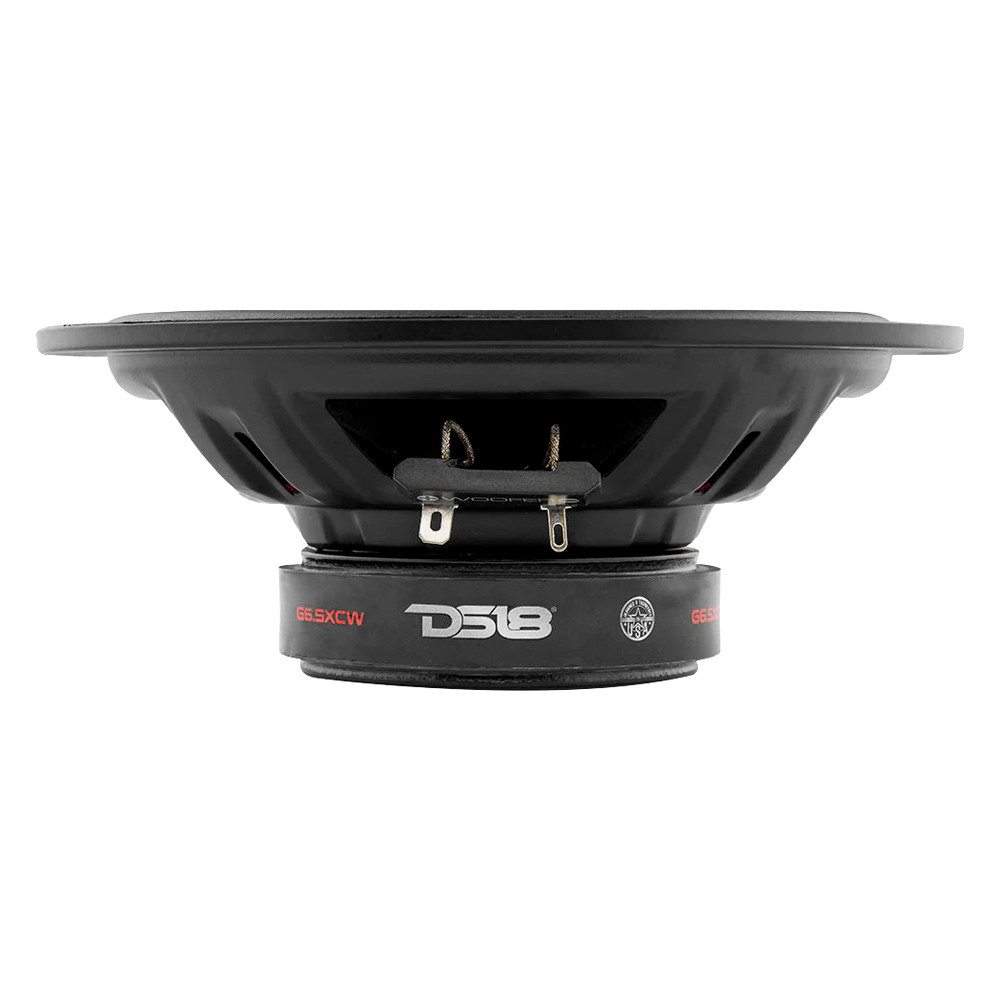

Universal GEN-X 6.5" 2-Way Component Set Speaker System by DS18®. G6.5XC GEN-X 6.5" 2-Way Component Set Speaker System 150 Watts 4-Ohm. DS18 G6.5XC . 2-Way Component Set Speaker System 150 Watts 4-Ohm . Get ready to experience power, clarity, and range like never before! . The legendary GEN-X Coaxial Series is back and stronger than ever with the G6.5XC 2-Way Component Set, delivering an upgraded level of performance that will blow your mind. This set includes a powerful 6.5-inch woofer and a high-quality silk dome tweeter, as well as a 2-way passive crossover to ensure clear and crisp sound. The 6.5-inch woofer delivers power, precision, and punch to your music. The paper cone provides a natural, warm sound, while the rubber surround allows for tight, controlled bass response. This woofer is an essential component for any audiophile who demands uncompromising sound quality.
