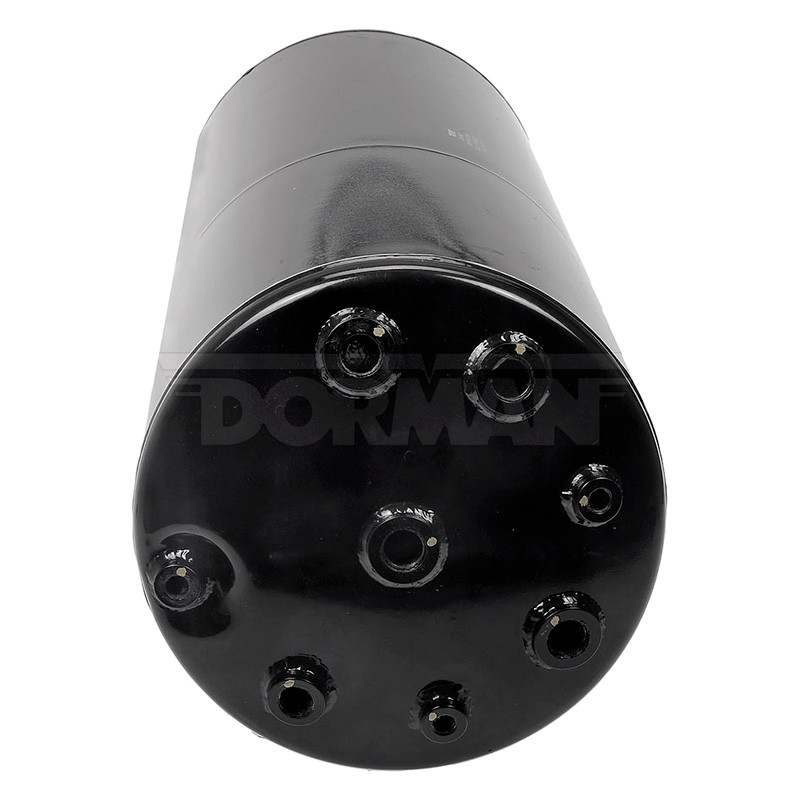

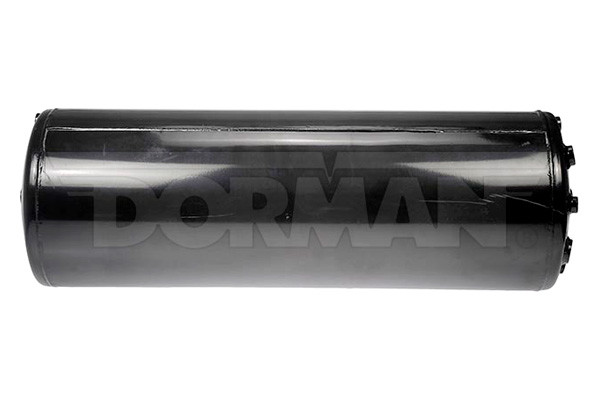

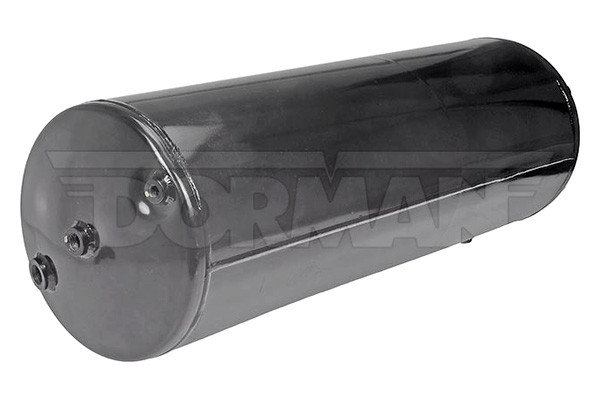

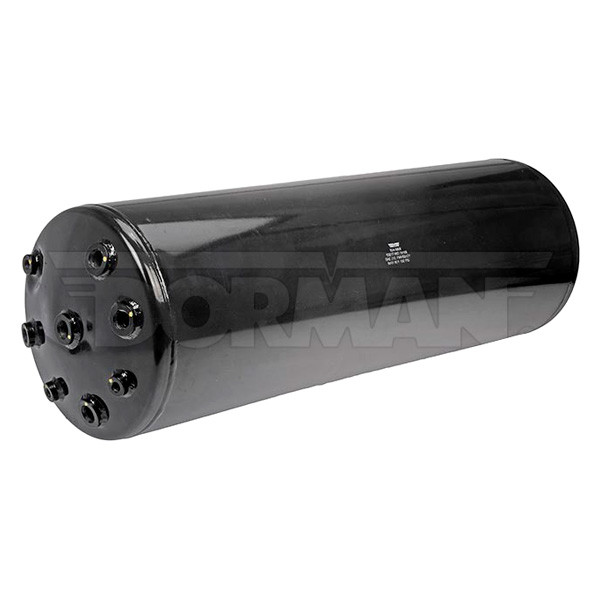

Name: Dorman® 924-5809 - HD Solutions™ Air Brake Reservoir
Brand: Dorman
SKU: mpn5190958154
Price: 381.56 USD
Availability: InStock

Vehicle Fitment

Information is not available

Specifications

Maximum Working Pressure	150 PSI
Mounting Hardware Included	No
Mounting Type	Strap On
Port Quantity	11
Port Thread Diameter	M22; M22; M22; M22; M22; 1/4".; 1/4".; 1/4".; 1/4".; 1/2".; 1/2".
Port Thread Pitch	1.5 mm; 1.5 mm; 1.5 mm; 1.5 mm; 1.5 mm;
Port Threads Per Inch	NPT; NPT; NPT; NPT; NPT; NPT
Tank Chamber Quantity	2
Threaded Mounting Bracket Included	No
Valve Included	No
Volume	53 L
Material	Carbon Steel
Finish	Black
Diameter	11.25"
Thickness	0.13"
Length	34.8"

Includes

1 Air Tank

Features

Direct replacement - this air reservoir features the same port configuration and physical dimensions as the original tank
Quality construction - this tank is made with precise port locations and finished in a corrosion-resistant coating inside and outside
Validation tested - has been salt spray chamber tested internally and externally to meet or exceed the industry standard for corrosion resistance
Excellent value - original equipment quality at a lower cost

Product Details

HD Solutions™ Air Brake Reservoir by Dorman®. Maintain the effectiveness of air-actuated braking and suspension systems by replacing a corroded or leaking air brake reservoir. Designed to fit like the original equipment tank with same port configurations.
