Name: Diode Dynamics® DD3041 - Solid-State Relay Harness Flicker Error Fix
Brand: Diode Dynamics
SKU: mpn5220359011
Price: 29.95 USD
Availability: InStock
Rating: 5 (1 reviews)

Vehicle Fitment

Information is not available

Specifications

Max load	8A at 12V DC, 96 watts
Input voltage (power)	12-16V
Input voltage (signal)	5-16V, PIC microcontroller compatible
Signal input waveform	Minimum 50 percent duty cycle, 100 hz to generate flicker-free on signal
Operating Voltage	5-16V
Polarity	Polarity Specific
Operating Temperature	-40C to 85C (-40F to 185F)
Connector(s)	Deutsch DT Input, T-Tap Inputs
Intrusion Ratings	IP68 Waterproof

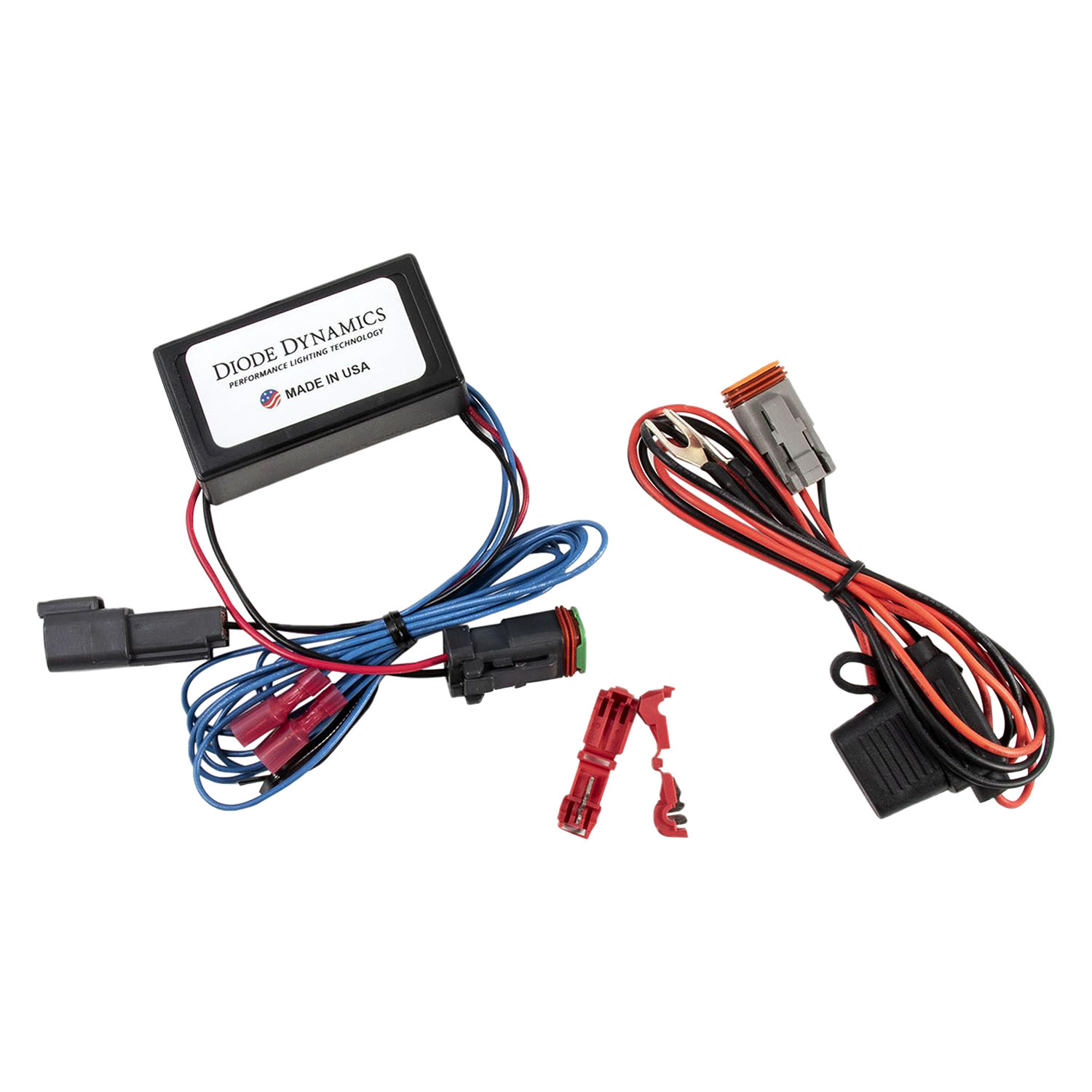

Includes

One (1) Extras:
Solid-State Relay module
Fused battery connection wire
Two (2) T-taps for input signals

Features

Used for any LED installation, in place of standard relay
Activate LEDs from two independent factory signals, with no errors
Designed to power multicolor controllers with Deutsch plugs
Up to 8 amp draw at 12 volts, or 96 watts DC
Fully waterproof and shockproof, validated for -40 to 185F operation
100 percent Satisfaction Guarantee
Warranty: 3 year warranty

Product Details

Solid-State Relay Harness Flicker Error Fix by Diode Dynamics®. Voltage: 5-16V. Quantity: 1 Piece. Looking to maintain the top condition of your electrical system? They are ready to help you! Just choose from their immense selection of premium replacement electrical parts manufactured to strict quality standards. All these parts feature the finest materials and finishes to perform reliably for a long time. They are engineered with precision to fit your vehicle perfectly and install easily.

Installation

Diode Dynamics® - Solid-State Relay Harness Flicker Error Fix Installation Instructions

Diode Dynamics® - Instructions

Diode Dynamics® - Solid-State Relay Harness Flicker Error Fix Installation Instructions Diode Dynamics® - FAQ Diode Dynamics® - Warranty Made In USA Diode Dynamics Authorized Dealer Catalog Additional Information About us

Brand:

Diode Dynamics

Part Number:

DD3041

UPC:

691026116273

Warranty

All Products: 3-Year Replacement Limited Warranty

Diode Dynamics carries a 3-year limited warranty on all products, for manufacturing defects or product failure. If Diode Dynamics determines that your product is defective in material or workmanship, Diode Dynamics will issue an RMA number. For approved warranty claims, Diode Dynamics will replace the defective product with the same product or, if it has been discontinued, one comparable in performance and value. Diode Dynamics product warranty is limited to product replacement only. Diode Dynamics does not offer compensation or coverage of installation labor or time that may be required for replacement of warranty items.

Select Products: 8-Year Limited Warranty

In addition to the above 3-Year Replacement Limited Warranty, Diode Dynamics carries an 8-year Limited Warranty on select products. Currently, this includes and is limited to all Stage Series products. After 3 years of Replacement Limited Warranty, Diode Dynamics will continue to warrant that select products are free of defects for up to 8 years from when the product was ordered. These products will be replaced or repaired, at the sole discretion of Diode Dynamics.

All warranties are non-transferable. Warranty terms and policies are subject to change without notice. All warranties, expressed or implied, are void if the warranty claim department determines that there is sufficient evidence of one or more of the following:

Negligence: Improper installation or improper use, including using or installing any product in a manner not specified by Diode Dynamics, or damage caused by improper installation
Abuse: Damage beyond the limits of "normal wear and tear"
Unauthorized Repair: Repair service performed or attempted by an unauthorized party
Unauthorized Dealer: Purchase of items through any unauthorized party

Some products may be modified in the course of installation or use by the customer to suit a particular need. However, opening, disassembling, cutting wires, or otherwise modifying any product in a manner not specified by Diode Dynamics will void the product warranty.

Replacing lenses on lightbars will void the 3-year limited replacement warranty. However, the 8-year limited warranty will be upheld and in effect. In the case of moisture intrusion, you may be required to open and re-seal the lamp yourself. If issues persist, Diode Dynamics may require that the lightbar is sent for repair.

Magnuson-Moss Warranty Act:

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)) Learn More
