Name: Diode Dynamics® DD7418 - Fog Light Location Mounted Stage Series 6" 2x26.6W Wide Beam LED Light Bar Kit
Brand: Diode Dynamics
SKU: mpn5103565524
Price: 359.95 USD
Availability: Discontinued

Vehicle Fitment

Toyota

Specifications

Size	6"
Watts (per kit)	2x26.6W
LEDs/bulbs quantity	6-LED
Beam pattern	wide beam
LED rows	single row
Bulb type	LED
Series	Stage Series
Location	fog light location
Light Color	white
Material	aluminum
Shape	straight
Voltage	9-16V
Amperage	1.9A
Raw lumens output	2280; Effective lumens: 1400
Color temperature	6000K
Lux @10M	130
Candelas	13000 CD

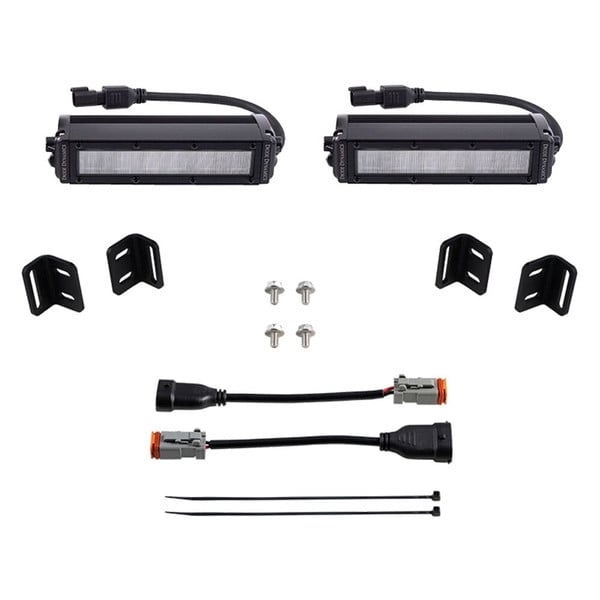

Includes

(2) 6" Stage Series white LED light bars
(4) Application-specific brackets
(2) H11 DT adapters
Installation guide

Features

Direct fitment
Replaces the factory fog lights with two 6" light bars
Road legal output as fog lights
CAD-designed for perfect fitment and OEM-like appearance
Utilizes existing mounting points for simple installation
8-year warranty

Product Details

Fog Light Location Mounted Stage Series 6" 2x26.6W Wide Beam LED Light Bar Kit (DD7418) by Diode Dynamics®. 1 Pair, 6-LED. White light. 9-16V. 1.9A. Raw lumens output: 2280; Effective lumens: 1400. 6000K. With polycarbonate lens. The SAE LED Fog Light Kit for your vehicle from Diode Dynamics allows you to mount a pair of SS6 Stage Series 6" Light Bars in place of the factory fog light housings. These application-specific brackets were CAD-designed to install using factory mounting points.

Diode Dynamics® - FAQ Diode Dynamics® - Warranty Diode Dynamics Authorized Dealer Catalog Additional Information About us

Brand:

Diode Dynamics

Part Number:

DD7418

UPC:

195995129369

Warranty

All Products: 3-Year Replacement Limited Warranty

Diode Dynamics carries a 3-year limited warranty on all products, for manufacturing defects or product failure. If Diode Dynamics determines that your product is defective in material or workmanship, Diode Dynamics will issue an RMA number. For approved warranty claims, Diode Dynamics will replace the defective product with the same product or, if it has been discontinued, one comparable in performance and value. Diode Dynamics product warranty is limited to product replacement only. Diode Dynamics does not offer compensation or coverage of installation labor or time that may be required for replacement of warranty items.

Select Products: 8-Year Limited Warranty

In addition to the above 3-Year Replacement Limited Warranty, Diode Dynamics carries an 8-year Limited Warranty on select products. Currently, this includes and is limited to all Stage Series products. After 3 years of Replacement Limited Warranty, Diode Dynamics will continue to warrant that select products are free of defects for up to 8 years from when the product was ordered. These products will be replaced or repaired, at the sole discretion of Diode Dynamics.

All warranties are non-transferable. Warranty terms and policies are subject to change without notice. All warranties, expressed or implied, are void if the warranty claim department determines that there is sufficient evidence of one or more of the following:

Negligence: Improper installation or improper use, including using or installing any product in a manner not specified by Diode Dynamics, or damage caused by improper installation
Abuse: Damage beyond the limits of "normal wear and tear"
Unauthorized Repair: Repair service performed or attempted by an unauthorized party
Unauthorized Dealer: Purchase of items through any unauthorized party

Some products may be modified in the course of installation or use by the customer to suit a particular need. However, opening, disassembling, cutting wires, or otherwise modifying any product in a manner not specified by Diode Dynamics will void the product warranty.

Replacing lenses on lightbars will void the 3-year limited replacement warranty. However, the 8-year limited warranty will be upheld and in effect. In the case of moisture intrusion, you may be required to open and re-seal the lamp yourself. If issues persist, Diode Dynamics may require that the lightbar is sent for repair.

Magnuson-Moss Warranty Act:

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)) Learn More
