Diode Dynamics® DD8870 - Front Bumper Mounted Stage Series 6" 2x26.6W Fog Beam LED Light Bar Kit

0 reviews|Item # mpn5279067834

Vehicle SpecificCannot Confirm Fitment

We need more information

Confirm Fitment

Notes:

No cutting / No drilling / No welding.

Authorized Dealer

$379.95

In Stock (5) - Ships within 24 hrs

Have a Question? Ask a Specialist

800-505-3274Live Chat

Vehicle Fitment

Ford

Specifications

Size	6"
Watts (per kit)	2x26.6W
LEDs/bulbs quantity	6-LED

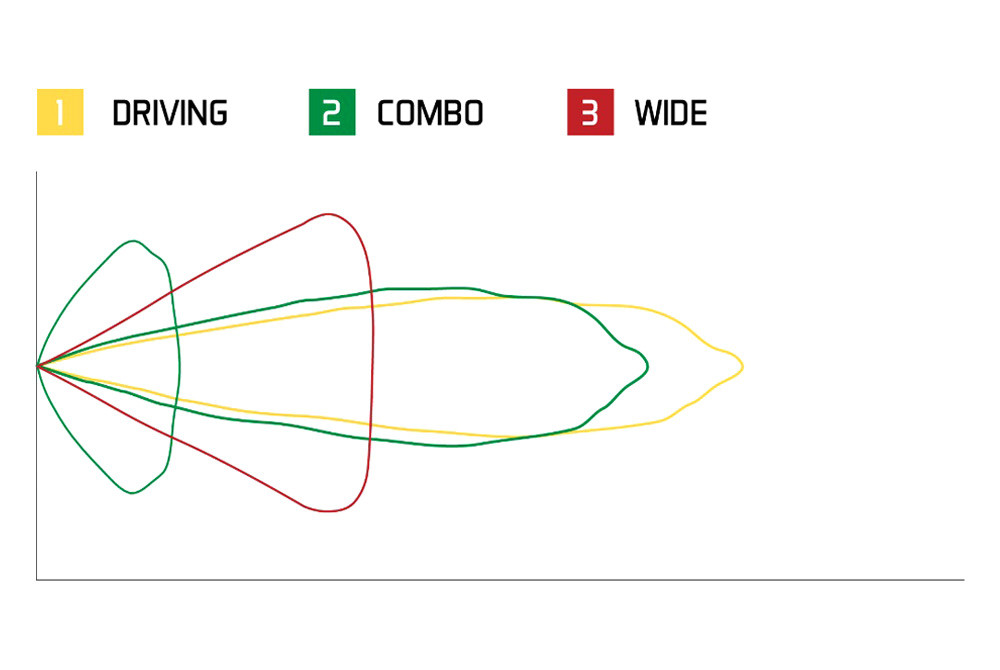

Beam pattern	fog beam
LED rows	single row
Bulb type	LED
Series	Stage Series
Location	front bumper
Housing color	black
Light Color	white
Material	aluminum
Shape	straight
Voltage	9-16V
Amperage	1.9A
Raw lumens output	2280; Effective lumens: 1400
Color temperature	6000K
Lux @10M	130
Candelas	13000 CD

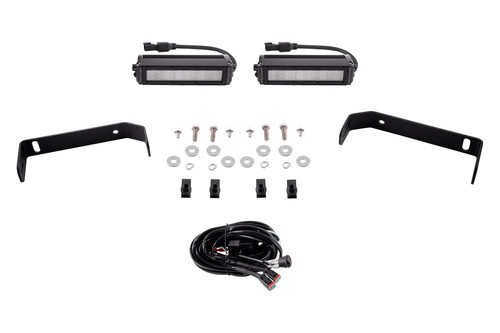

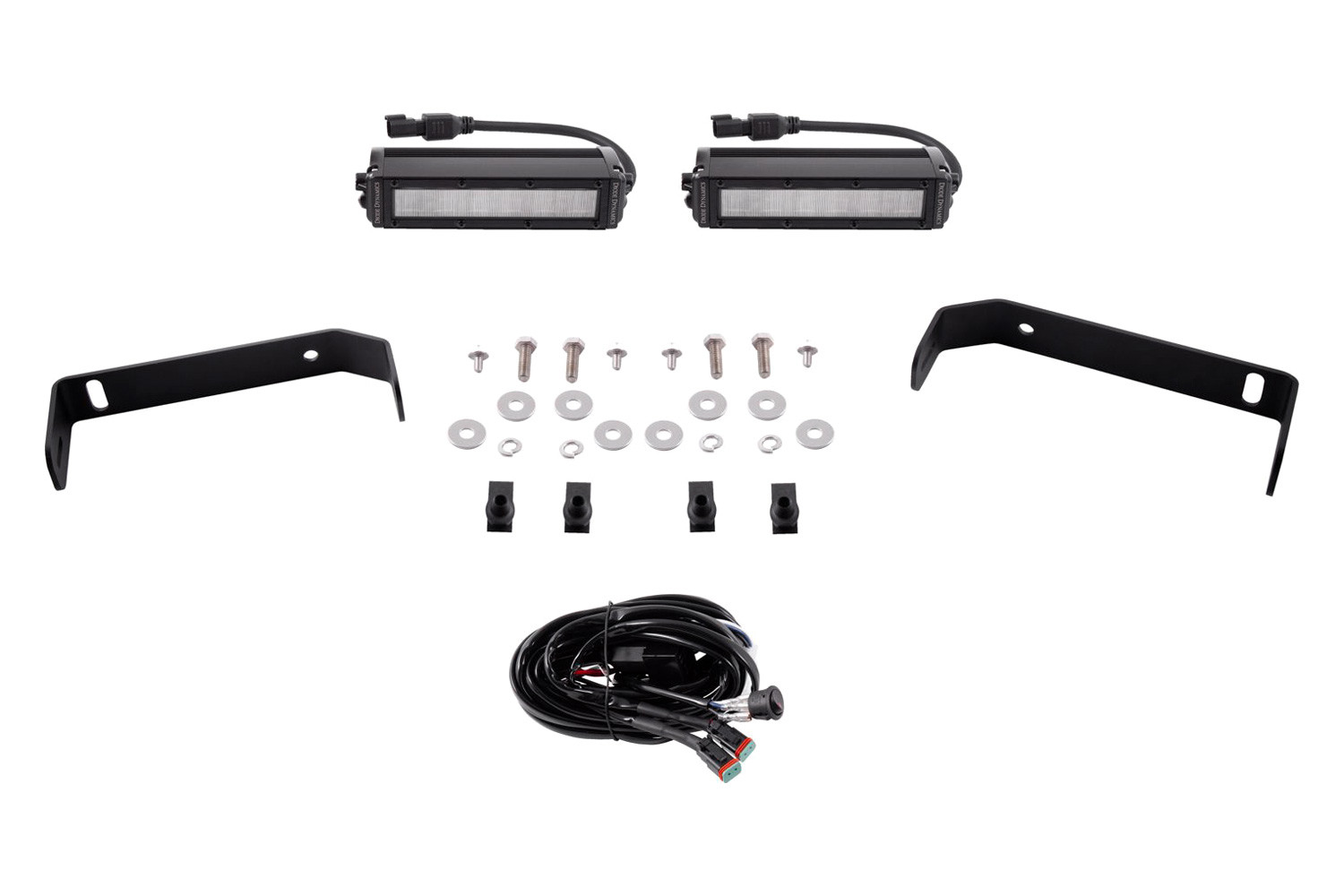

Includes

(2) SS6 6" Stage Series Light Bars
(1) Application-specific SS18 bracket kit
(1) Heavy-Duty Single-Output Wiring Harness
All Necessary Hardware
Installation guide

Features

Direct fitment
Allows you to mount one 18" light bar in the front bumper opening
CAD-designed for perfect fitment and OEM-like appearance
Utilizes existing mounting points for easy installation - no cutting or drilling required
Highly durable powdercoated steel construction

Product Details

Front Bumper Mounted Stage Series 6" 2x26.6W Fog Beam LED Light Bar Kit (DD8870) by Diode Dynamics®. 1 Pair, 6-LED. Black housing, white light. 9-16V. 1.9A. Raw lumens output: 2280; Effective lumens: 1400. 6000K. With polycarbonate lens. The Stage Series LED Lightbar Kit for your vehicle from Diode Dynamics allows you to mount two 6" light bars in the opening on the bumper. These application-specific brackets were CAD-designed to install using factory mounting points.

Diode Dynamics® - Front Bumper Stage Series 6" 2x26.6W Fog Beam LED Light Bar Kit, Guide Diode Dynamics® - FAQ Diode Dynamics® - Warranty Diode Dynamics Authorized Dealer Catalog Additional Information About us

Brand:

Diode Dynamics

Part Number:

DD8870

UPC:

195995147042

Warranty

All Products: 3-Year Replacement Limited Warranty

Diode Dynamics carries a 3-year limited warranty on all products, for manufacturing defects or product failure. If Diode Dynamics determines that your product is defective in material or workmanship, Diode Dynamics will issue an RMA number. For approved warranty claims, Diode Dynamics will replace the defective product with the same product or, if it has been discontinued, one comparable in performance and value. Diode Dynamics product warranty is limited to product replacement only. Diode Dynamics does not offer compensation or coverage of installation labor or time that may be required for replacement of warranty items.

Select Products: 8-Year Limited Warranty

In addition to the above 3-Year Replacement Limited Warranty, Diode Dynamics carries an 8-year Limited Warranty on select products. Currently, this includes and is limited to all Stage Series products. After 3 years of Replacement Limited Warranty, Diode Dynamics will continue to warrant that select products are free of defects for up to 8 years from when the product was ordered. These products will be replaced or repaired, at the sole discretion of Diode Dynamics.

All warranties are non-transferable. Warranty terms and policies are subject to change without notice. All warranties, expressed or implied, are void if the warranty claim department determines that there is sufficient evidence of one or more of the following:

Negligence: Improper installation or improper use, including using or installing any product in a manner not specified by Diode Dynamics, or damage caused by improper installation
Abuse: Damage beyond the limits of "normal wear and tear"
Unauthorized Repair: Repair service performed or attempted by an unauthorized party
Unauthorized Dealer: Purchase of items through any unauthorized party

Some products may be modified in the course of installation or use by the customer to suit a particular need. However, opening, disassembling, cutting wires, or otherwise modifying any product in a manner not specified by Diode Dynamics will void the product warranty.

Replacing lenses on lightbars will void the 3-year limited replacement warranty. However, the 8-year limited warranty will be upheld and in effect. In the case of moisture intrusion, you may be required to open and re-seal the lamp yourself. If issues persist, Diode Dynamics may require that the lightbar is sent for repair.

Magnuson-Moss Warranty Act:

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)) Learn More
