Name: Diode Dynamics® DD7543 - Grille Stage Series 5 Sport 5" 2x40W Square Combo Beam Yellow LED Light Kit
Brand: Diode Dynamics
SKU: mpn5160074133
Price: 1199.95 USD
Availability: OutOfStock

Vehicle Fitment

Toyota

Specifications

Size	5"
Watts (per kit)	2x40W
Beam pattern	combo beam
Bulb type	LED
Series	Stage Series 5 Sport
Location	grille
Mount type	pedestal mount
Color/finish	black
Light Color	yellow
Shape	square
Voltage	9-16V
Amperage	2.8A
Raw lumens	4800; Measured lumens: 3700
Lux @10M	820
Candelas	71200 CD

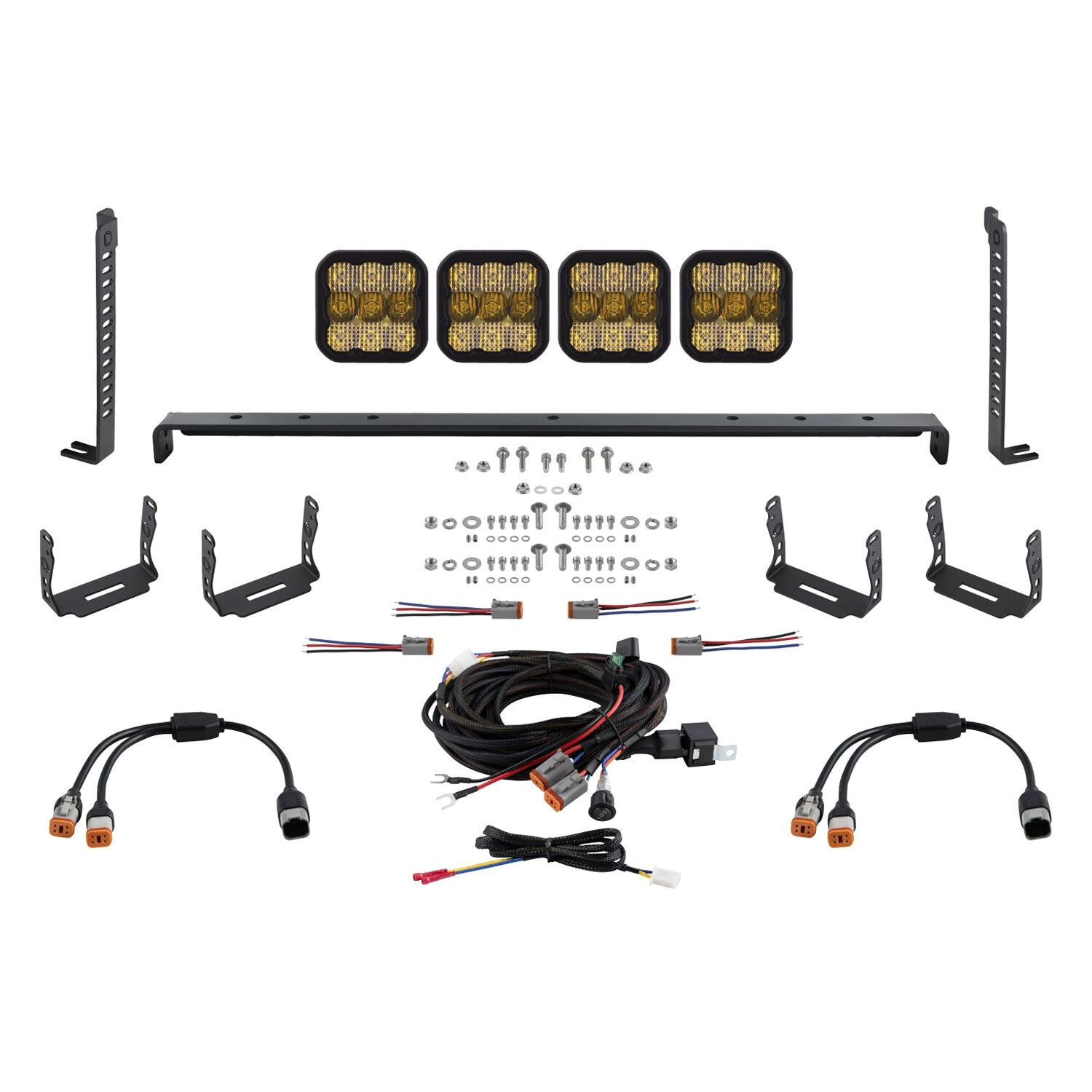

Includes

(4) Stage Series 5 Sport yellow LED lights
(2) Application-specific heavy-duty steel brackets
(1) SS5 Crossbar mount
(1) Heavy-duty dual-output harness
(2) DT 4-pin splitter harnesses
Installation guide

Features

Bolt-on fitment
Allows you to mount two or four SS5 pods behind the grille
Ultra-high intensity, with custom-engineered TIR optics
Torture-tested, heavy-duty construction
Assembled in the USA

Product Details

Grille Stage Series 5 Sport 5" 2x40W Square Combo Beam Yellow LED Light Kit (DD7543) by Diode Dynamics®. 4 Pieces. 9-16V. 2.8A. Raw lumens: 4800; Measured lumens: 3700. The Grille LED Pod Light Kit for your vehicle from Diode Dynamics allows you to mount two SS5 LED pods on the grille. These application-specific brackets were CAD-designed to bolt into place using factory mounting points.
