Diode Dynamics® DD7581 - Fog Light Location Mounted Stage Series 3 Max 3" 4x38.5W Square Fog/Combo Beam Yellow LED Light Kit

0 reviews|Item # mpn5160073934

Vehicle SpecificCannot Confirm Fitment

We need more information

Confirm Fitment

Authorized Dealer

$1,319.95

In Stock (1) - Ships within 24 hrs

Have a Question? Ask a Specialist

800-505-3274Live Chat

Vehicle Fitment

Ford

Specifications

Size	3"
Watts (per kit)	4x38.5W
Beam pattern	fog/combo beam
Bulb type	LED
Series	Stage Series 3 Max
Location	fog light location
Color/finish	black
Light Color	yellow
Shape	square
Voltage	9-16V
Amperage	3A
Raw lumens	7920; Measured lumens: 3500
Color temperature	3000K
Lux @10M	180
Candelas	18000 CD

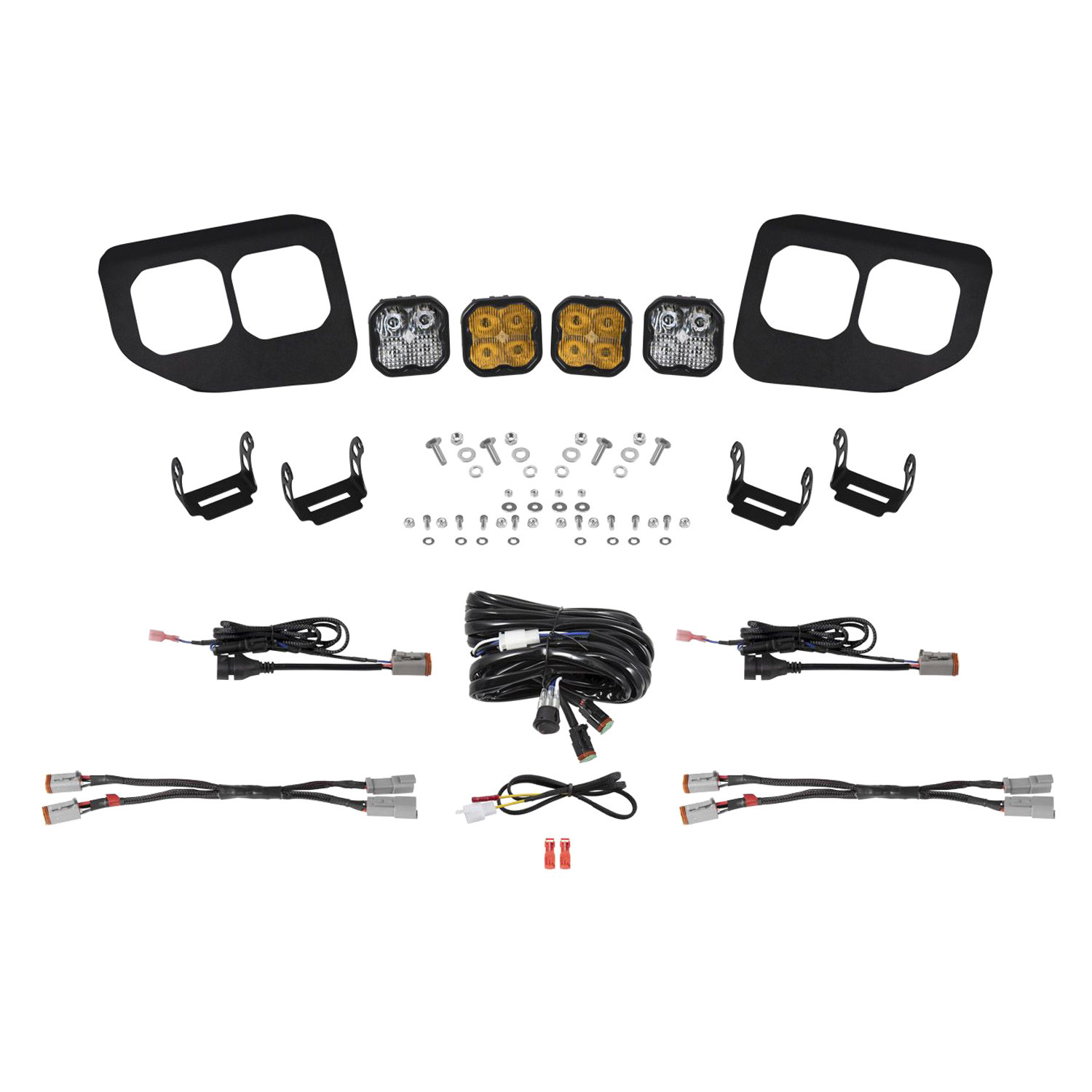

Includes

(2) Stage Max Series fog beam yellow LED lights
(2) Stage Max Series combo beam yellow LED lights

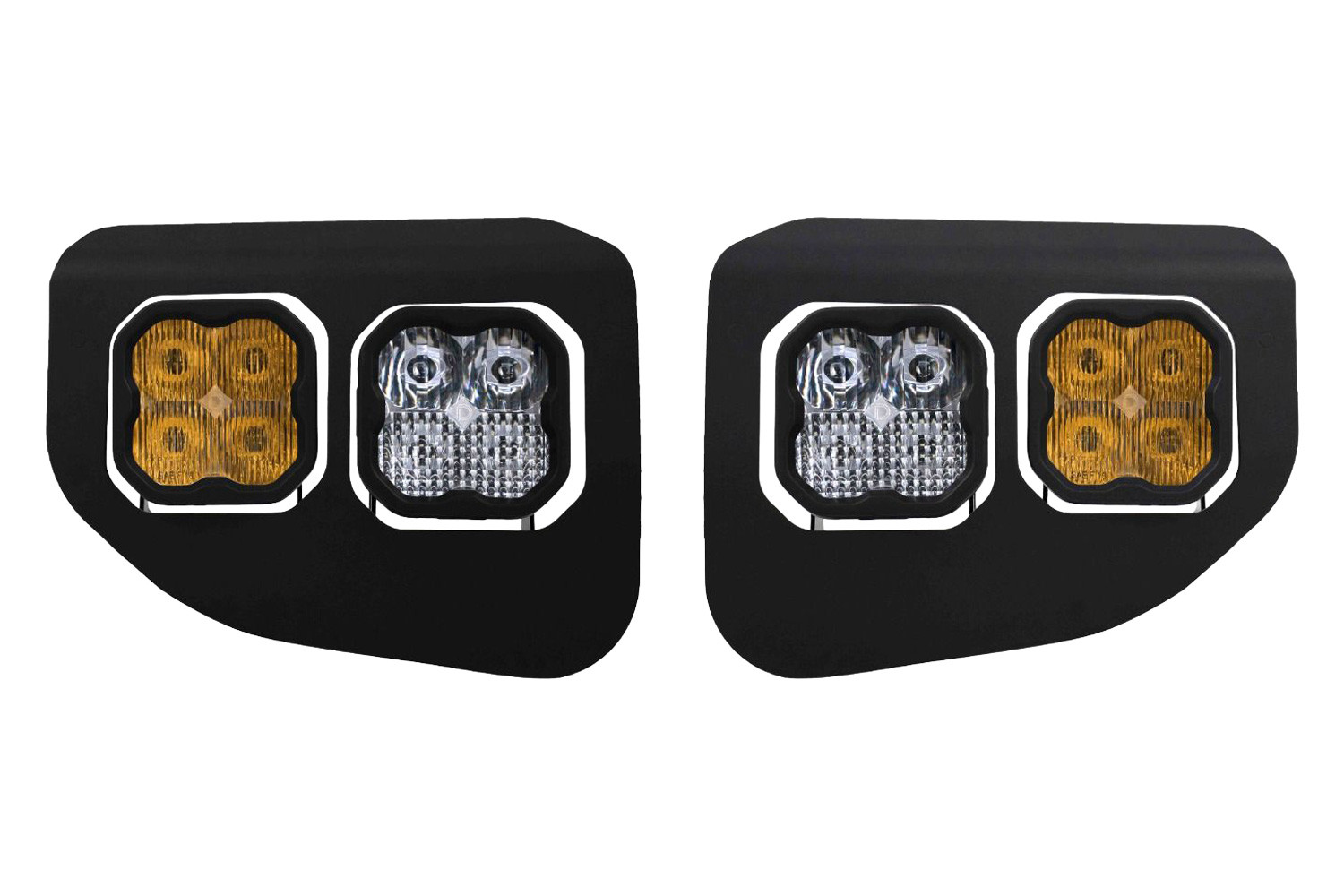

(2) Fog pocket brackets
(1) Dual fog pocket backlight splitter
(1) Heavy duty dual output wiring harness
(1) 9006 Backlight tap wire kit
Mounting hardware
Mounting guide

Features

Bolt-on fitment

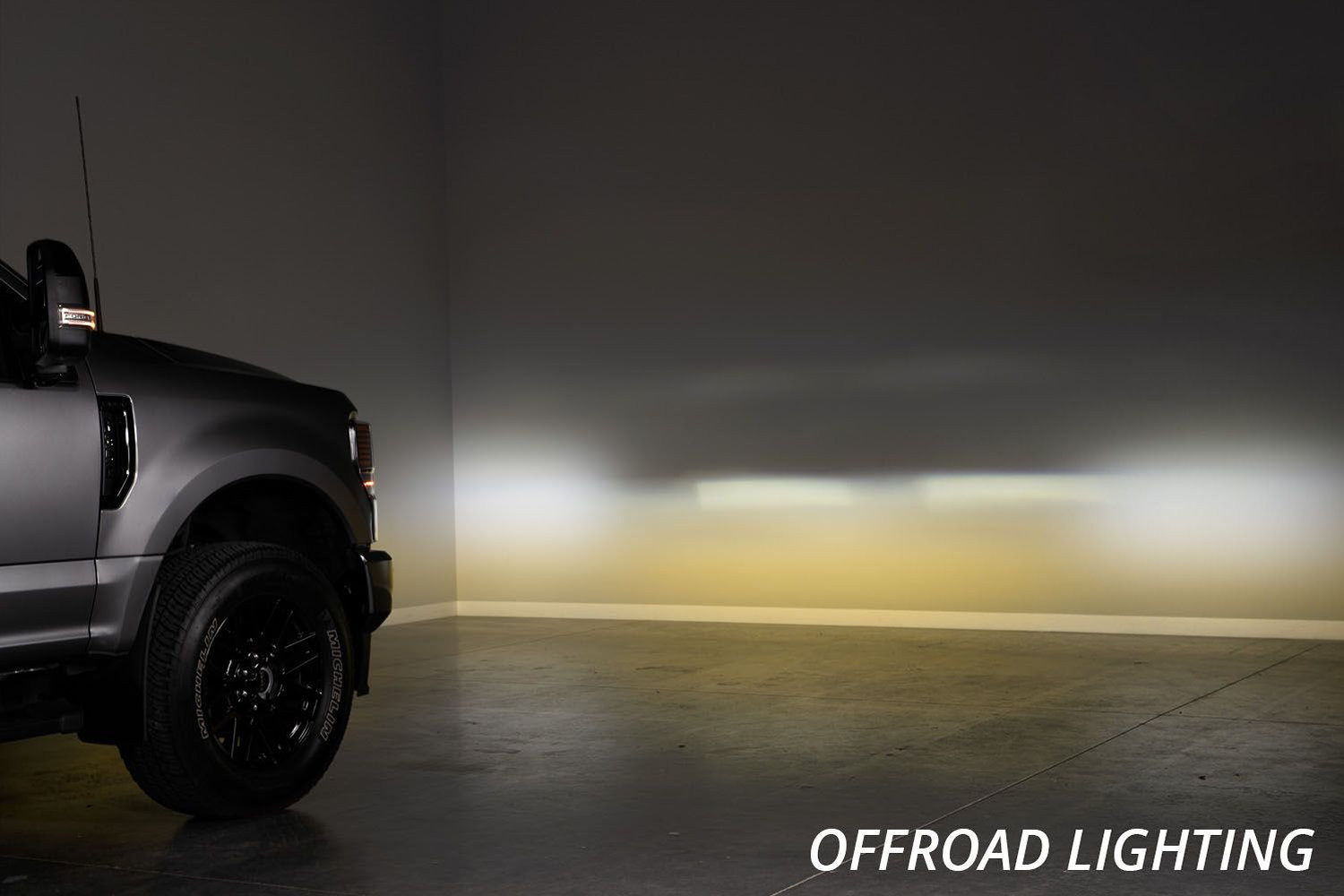

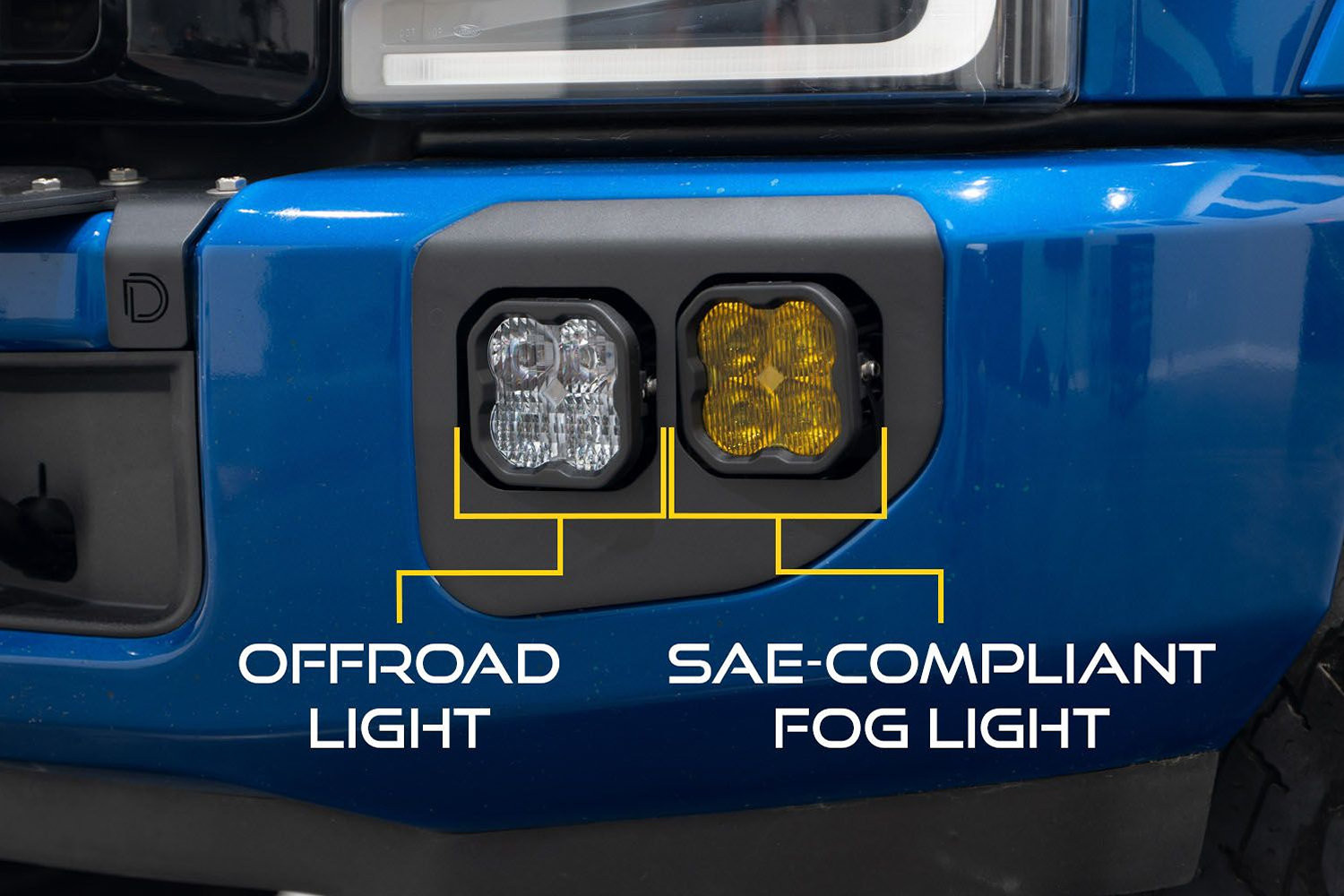

Adds SAE-compliant fog lights, and powerful offroad lighting
Harnesses included for independent control of road-legal and offroad lighting

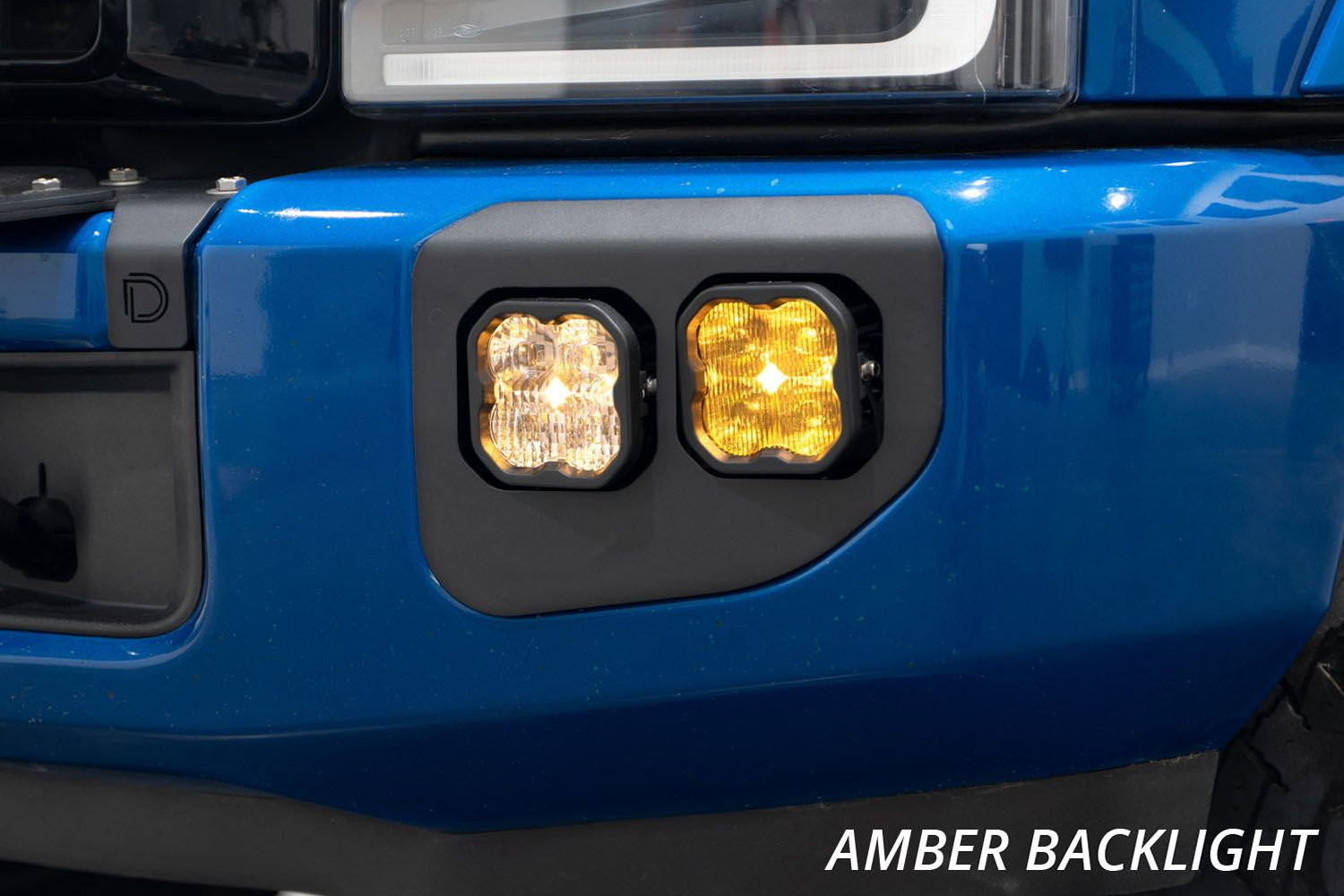

Backlight feature provides amber accent light
Highly durable powdercoated stainless steel bracket
Engineered and assembled in USA

Product Details

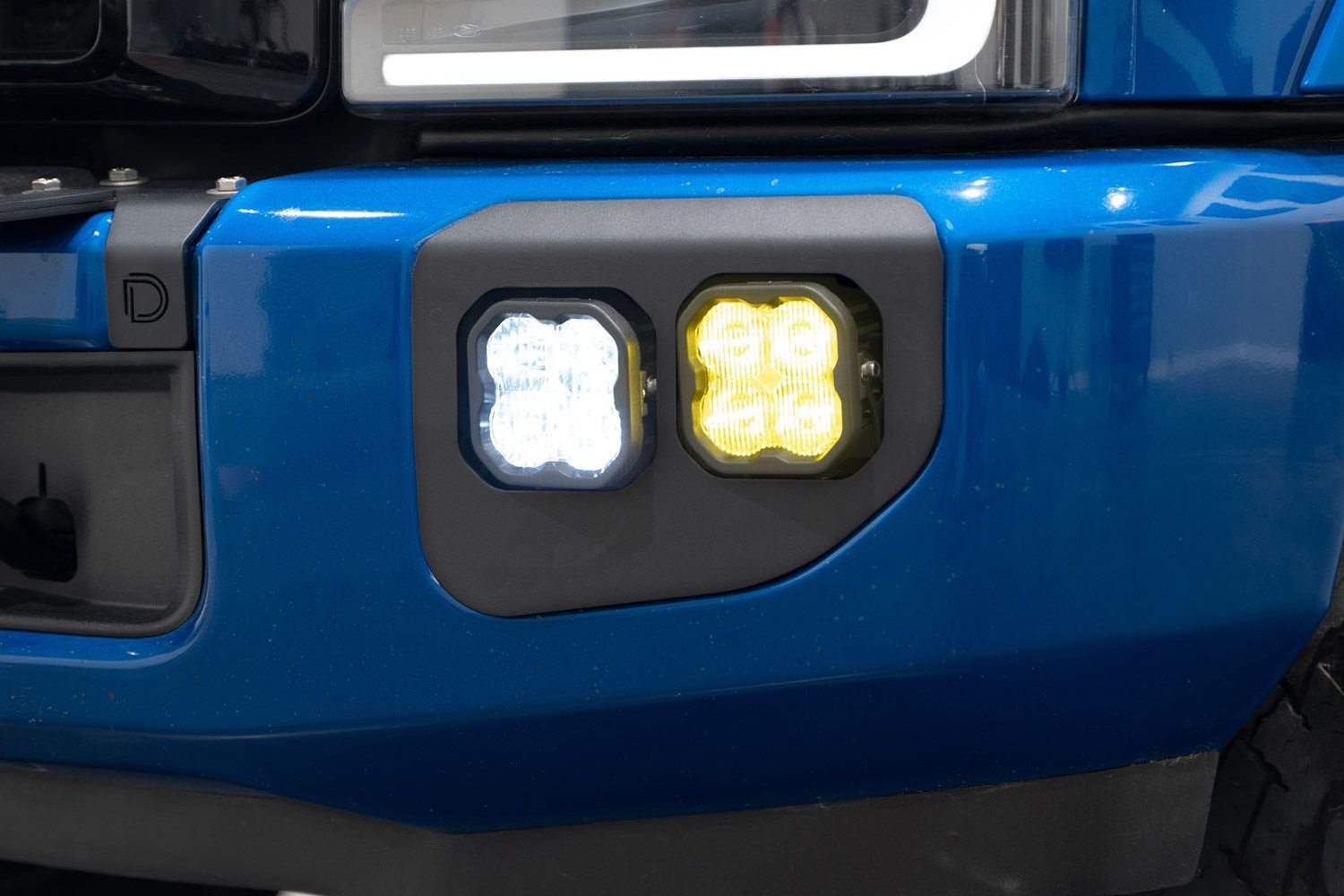

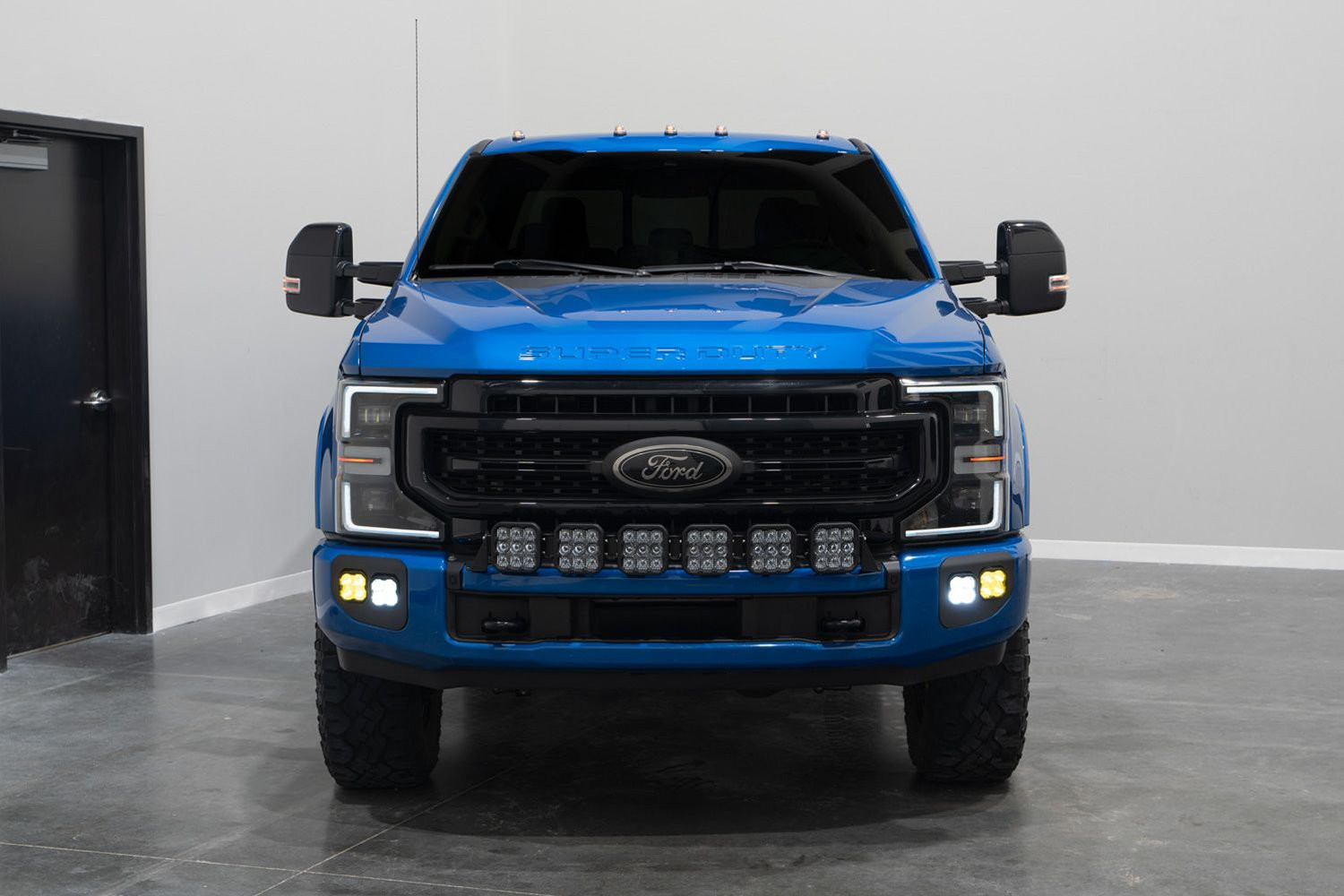

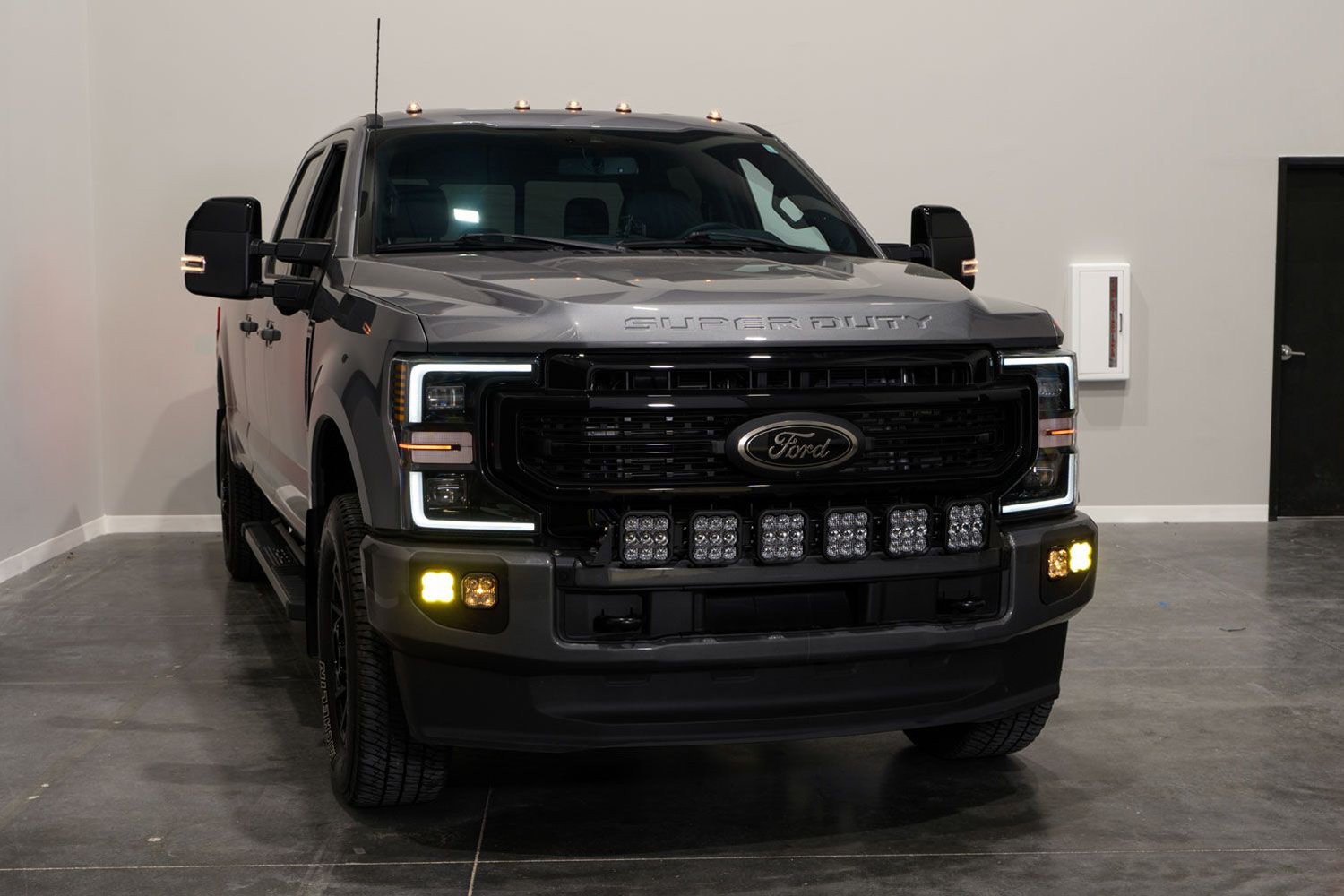

Fog Light Location Mounted Stage Series 3 Max 3" 4x38.5W Square Fog/Combo Beam Yellow LED Light Kit (DD7581) by Diode Dynamics®. 4 Pieces. 9-16V. 3A. Raw lumens: 7920; Measured lumens: 3500. 3000K. If you are looking to add some serious functionality to your vehicle, look no further! The Stage Series Fog Pocket Kit for your vehicle from Diode Dynamics adds both road-legal fog lights and powerful offroad lighting. The CAD-designed brackets allow you to mount four SS3 LED Pods in place of your factory fog light housing. With the included harness, you'll be able to switch between road-legal fog lights and offroad lights with ease.
