Diode Dynamics® DD6586 - Hood Ditch Mounted Stage Pro Series 3" 2x36W Driving Beam Yellow LED Light Kit

Name: Diode Dynamics® DD6586 - Hood Ditch Mounted Stage Pro Series 3" 2x36W Driving Beam Yellow LED Light Kit
Brand: Diode Dynamics
SKU: mpn4722815099
Price: 499.95 USD
Availability: OutOfStock

0 reviews|Item # mpn4722815099

Authorized Dealer

$499.95

OUT OF STOCK - Unavailable until further notice

See similar products

Vehicle Fitment

Ford

Specifications

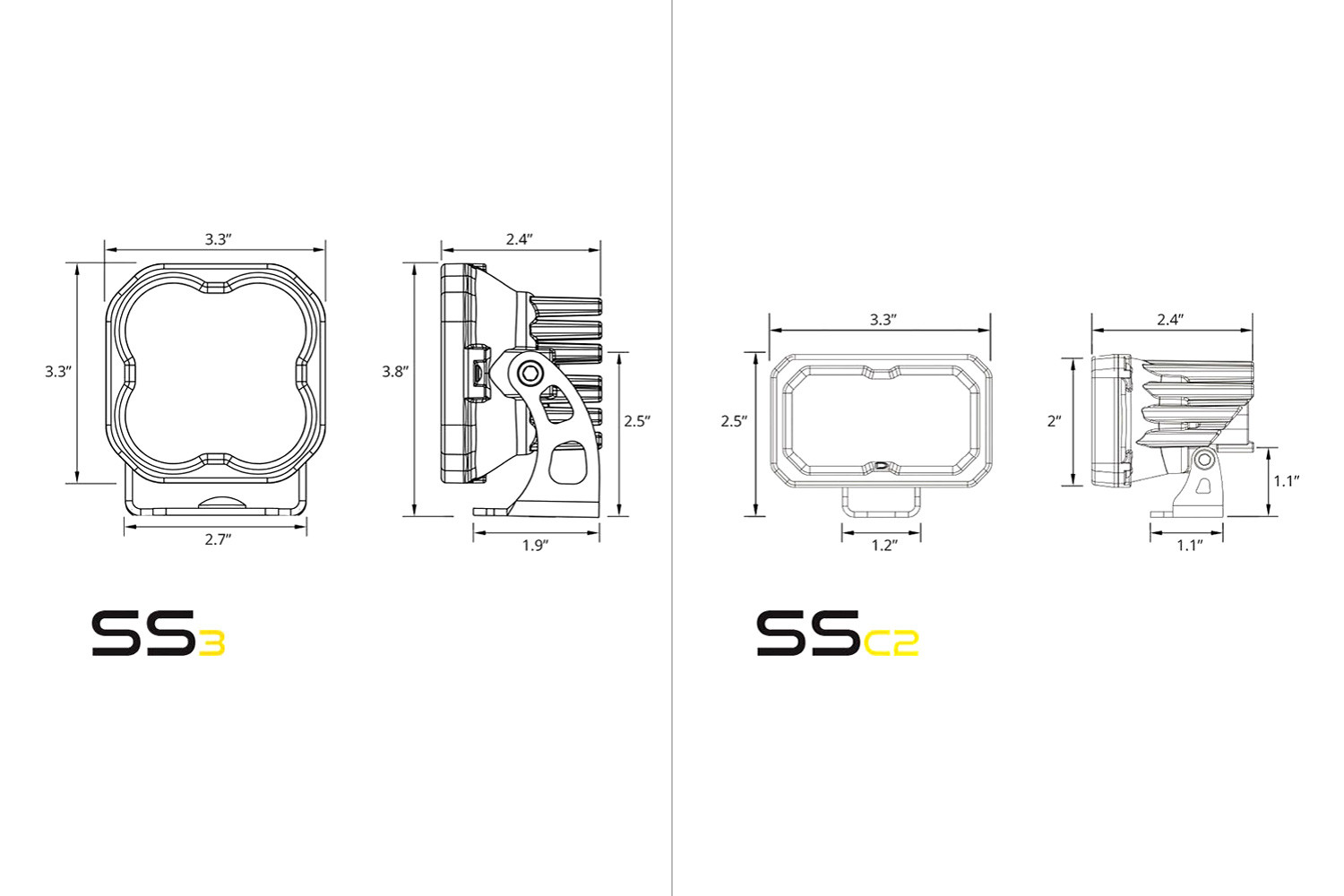

Size	3"
Watts (per kit)	2x36W

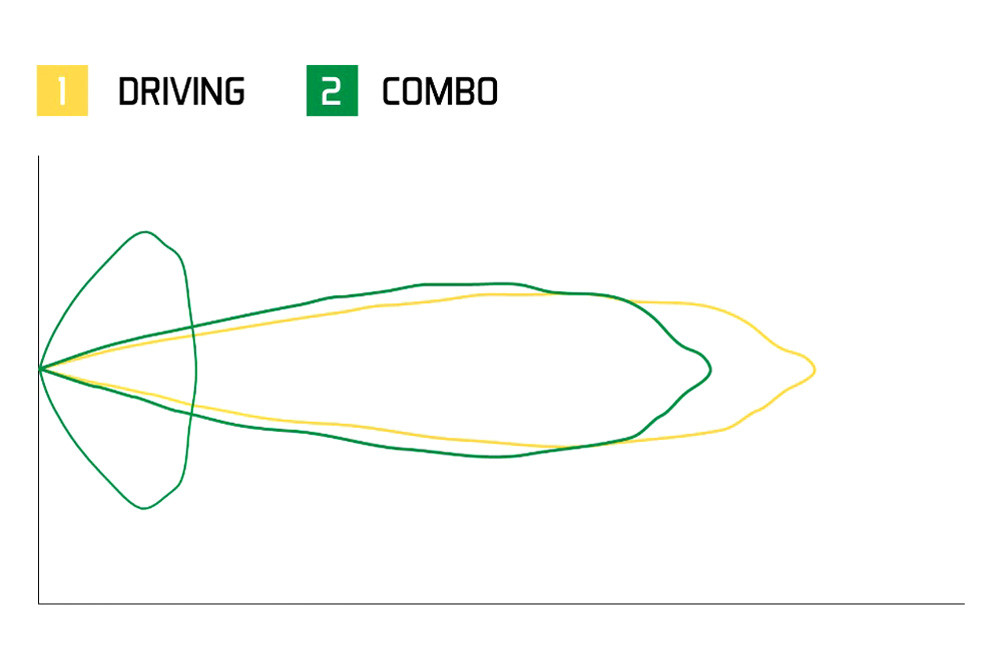

Beam pattern	driving beam
Bulb type	LED
Series	Stage Pro Series
Location	hood ditch
Color/finish	black
Light Color	yellow
Voltage	9-16V
Amperage	2.7A
Raw lumens	2700; Effective lumens: 5220
Color temperature	3000K
Lux @10M	609
Candelas	60900 CD

Includes

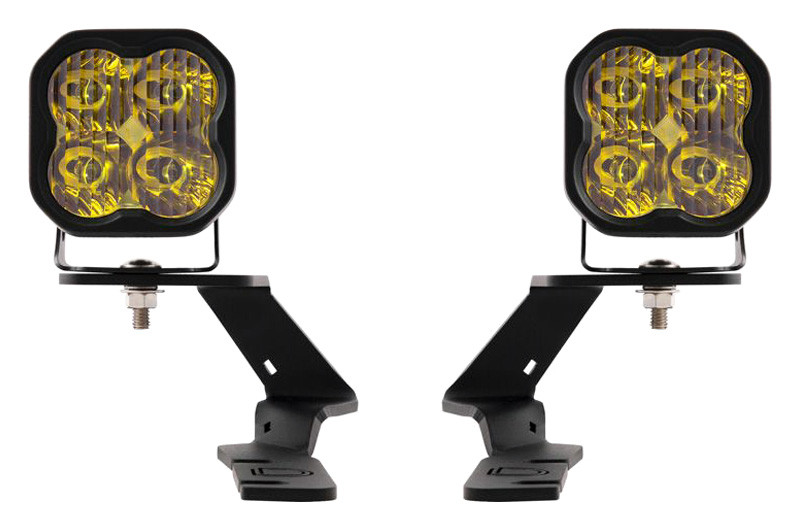

(2) SS3 3" Standard LED Pods

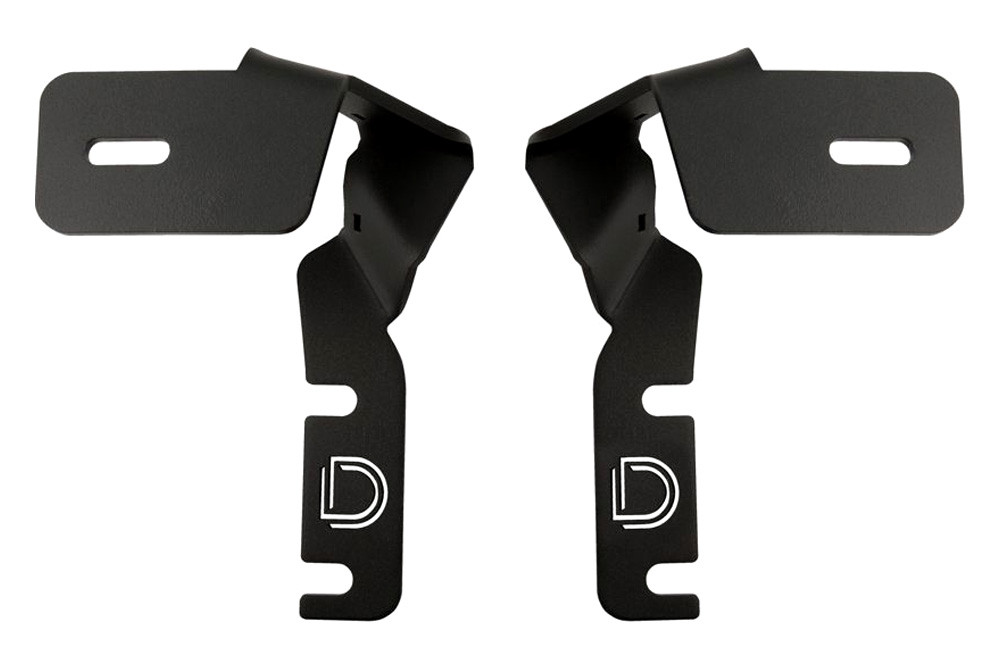

(2) Ditch light a-pillar brackets
(2) SS3 mounting brackets
(1) Heavy-duty dual output wiring harness
Mounting hardware
Mounting guide

Features

Designed to deliver trouble-free, consistent performance
Made from high-quality materials for ultimate durability
Manufactured to meet or exceed strict quality requirements

Product Details

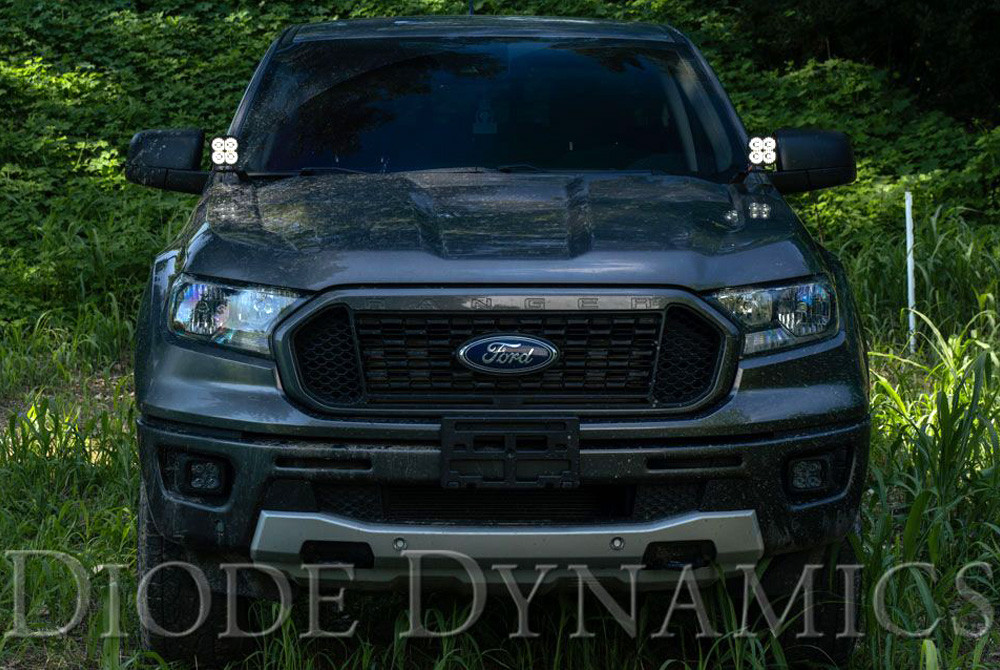

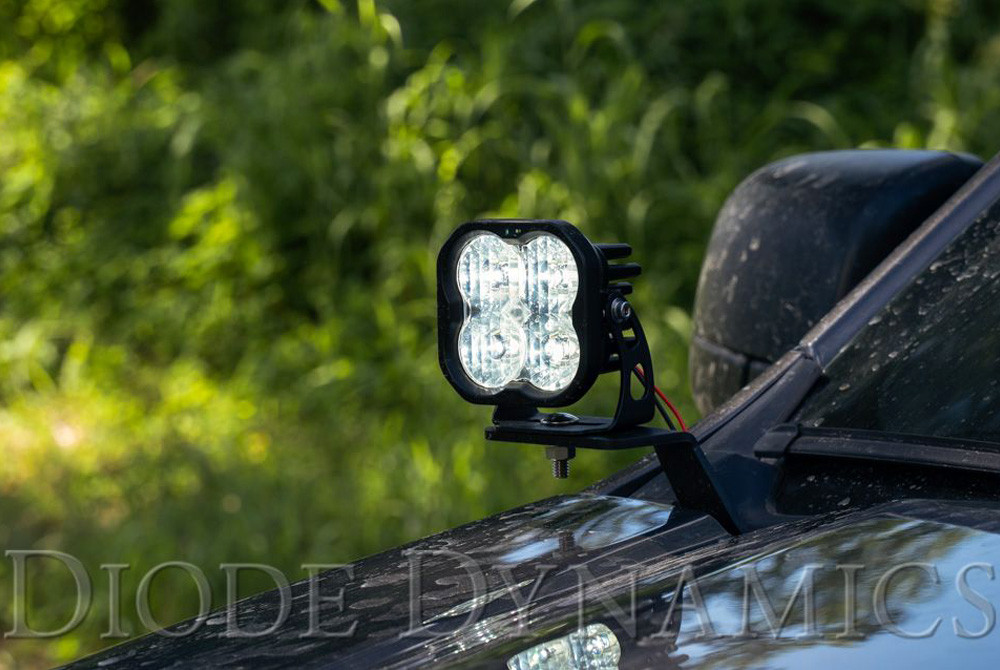

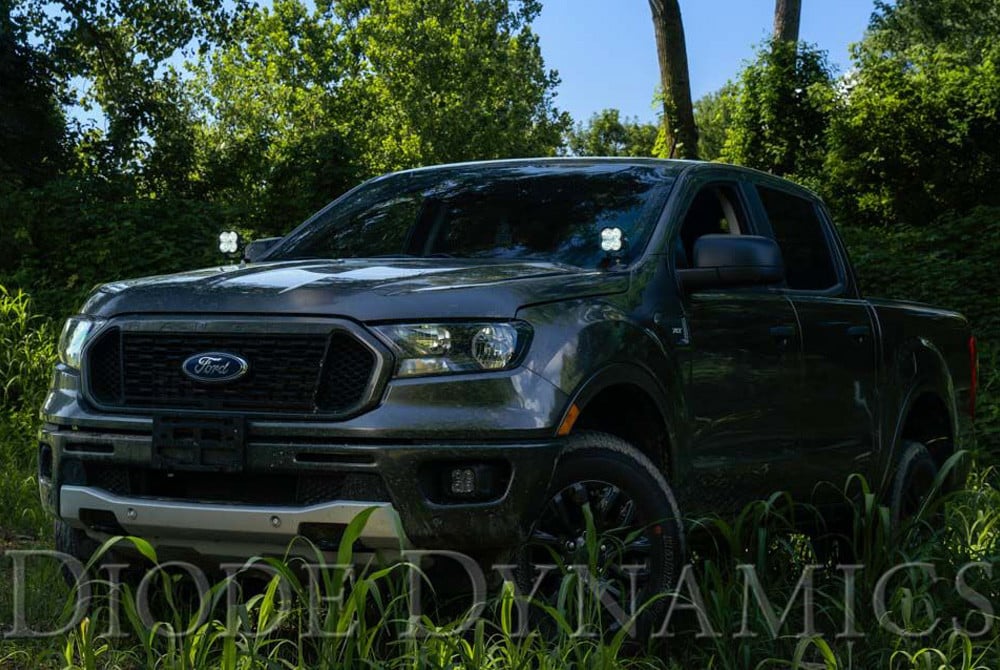

Hood Ditch Mounted Stage Pro Series 3" 2x36W Driving Beam Yellow LED Light Kit (DD6586) by Diode Dynamics®. 1 Pair. 9-16V. 2.7A. Raw lumens: 2700; Effective lumens: 5220. 3000K. The Stage Series LED Ditch Light Kit for your vehicle allows you to easily mount two SS3 Pods above the hood. These application-specific brackets were CAD-designed to install using factory mounting points. This kit features a low profile design while minimizing glare, and will not interfere with raising or lowering the hood.

Installation

Diode Dynamics® - Hood Ditch Stage Pro Series 3" 2x36W Driving Beam Yellow LED Light Kit, Installation Guide

Diode Dynamics® - Hood Ditch Stage Pro Series 3" 2x36W Driving Beam Yellow LED Light Kit, Installation Guide Diode Dynamics® - FAQ Diode Dynamics® - Warranty Diode Dynamics Authorized Dealer Catalog Additional Information About us

Brand:

Diode Dynamics

Part Number:

DD6586

UPC:

691026123028

Warranty

All Products: 3-Year Replacement Limited Warranty

Diode Dynamics carries a 3-year limited warranty on all products, for manufacturing defects or product failure. If Diode Dynamics determines that your product is defective in material or workmanship, Diode Dynamics will issue an RMA number. For approved warranty claims, Diode Dynamics will replace the defective product with the same product or, if it has been discontinued, one comparable in performance and value. Diode Dynamics product warranty is limited to product replacement only. Diode Dynamics does not offer compensation or coverage of installation labor or time that may be required for replacement of warranty items.

Select Products: 8-Year Limited Warranty

In addition to the above 3-Year Replacement Limited Warranty, Diode Dynamics carries an 8-year Limited Warranty on select products. Currently, this includes and is limited to all Stage Series products. After 3 years of Replacement Limited Warranty, Diode Dynamics will continue to warrant that select products are free of defects for up to 8 years from when the product was ordered. These products will be replaced or repaired, at the sole discretion of Diode Dynamics.

All warranties are non-transferable. Warranty terms and policies are subject to change without notice. All warranties, expressed or implied, are void if the warranty claim department determines that there is sufficient evidence of one or more of the following:

Negligence: Improper installation or improper use, including using or installing any product in a manner not specified by Diode Dynamics, or damage caused by improper installation
Abuse: Damage beyond the limits of "normal wear and tear"
Unauthorized Repair: Repair service performed or attempted by an unauthorized party
Unauthorized Dealer: Purchase of items through any unauthorized party

Some products may be modified in the course of installation or use by the customer to suit a particular need. However, opening, disassembling, cutting wires, or otherwise modifying any product in a manner not specified by Diode Dynamics will void the product warranty.

Replacing lenses on lightbars will void the 3-year limited replacement warranty. However, the 8-year limited warranty will be upheld and in effect. In the case of moisture intrusion, you may be required to open and re-seal the lamp yourself. If issues persist, Diode Dynamics may require that the lightbar is sent for repair.

Magnuson-Moss Warranty Act:

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)) Learn More
