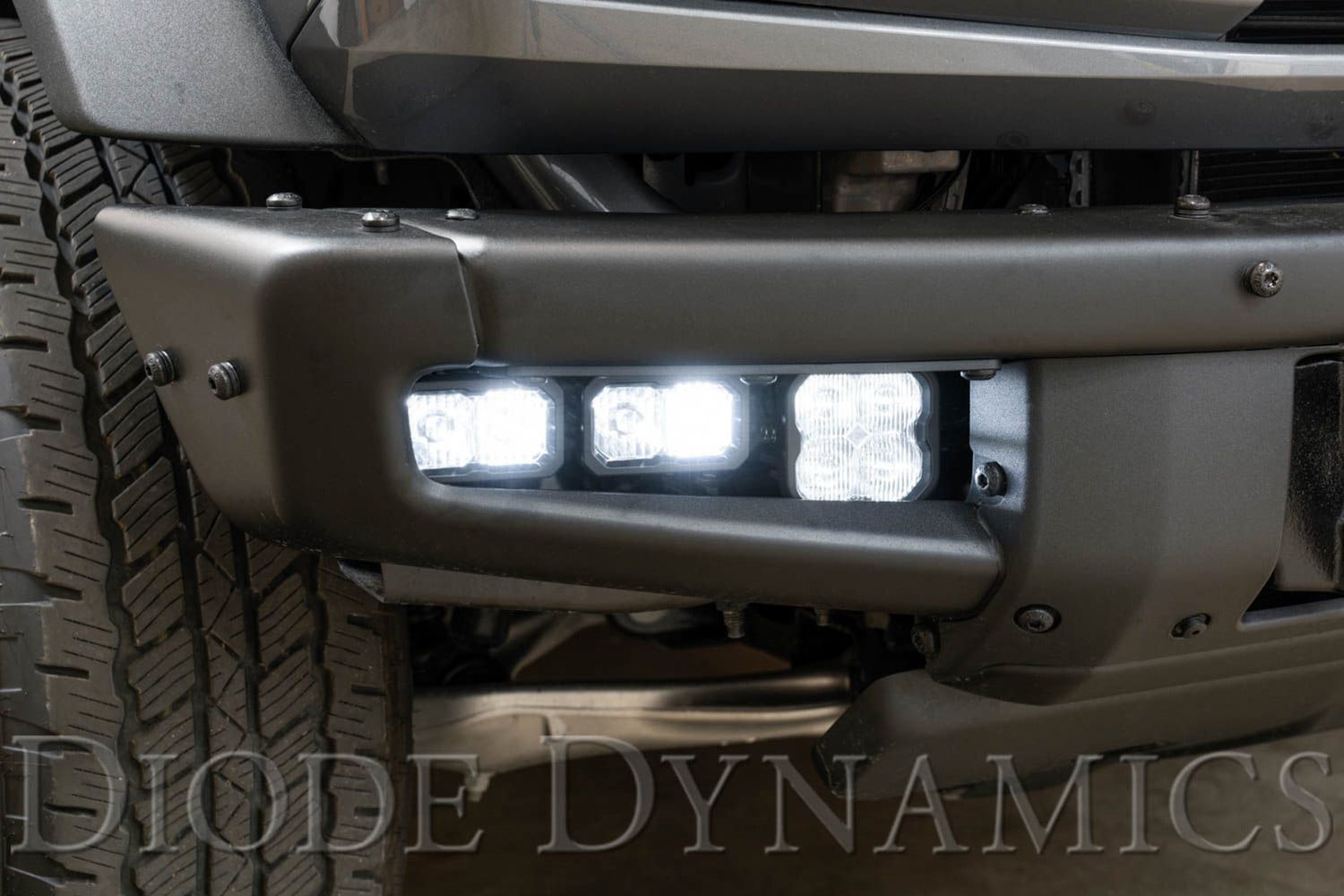

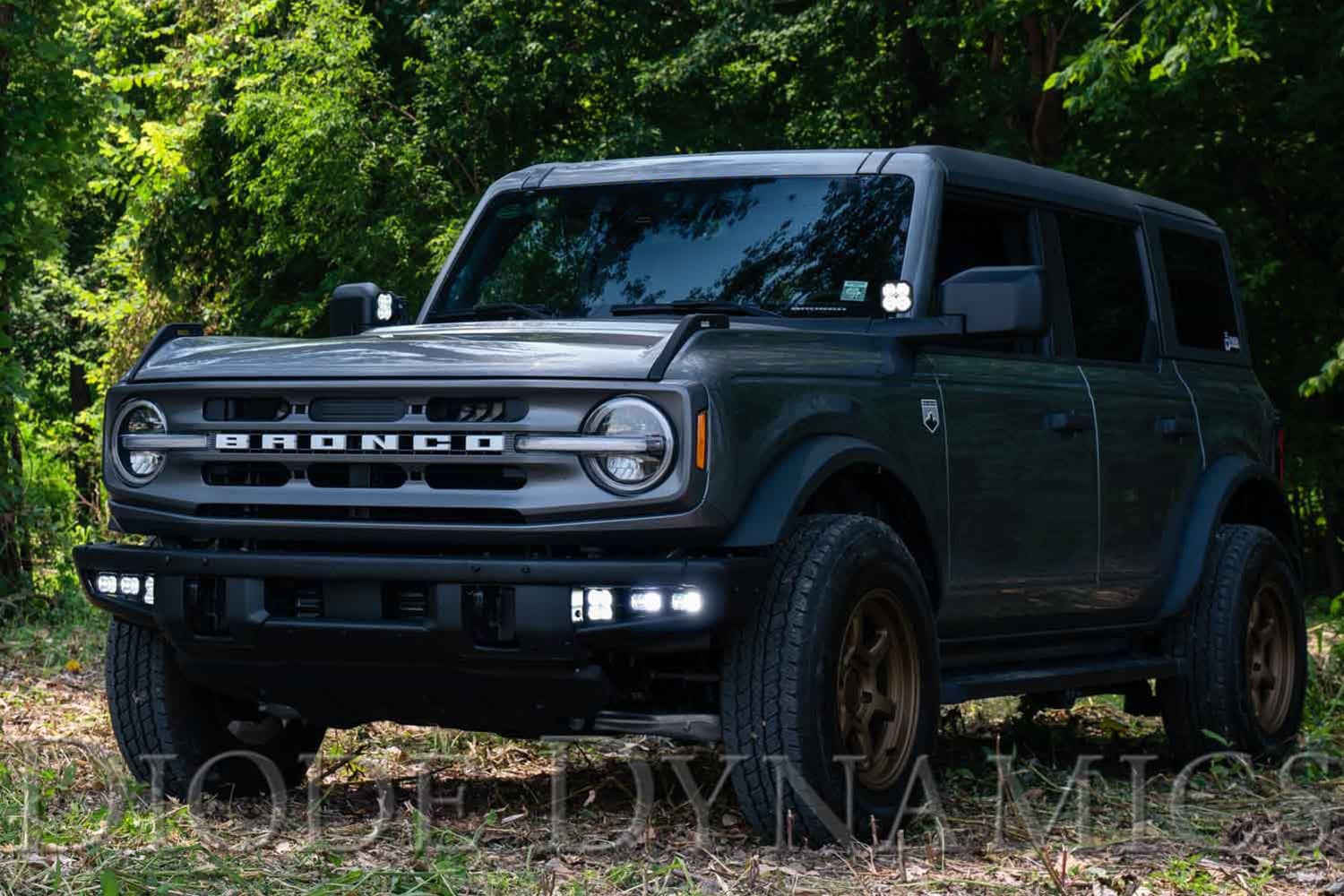

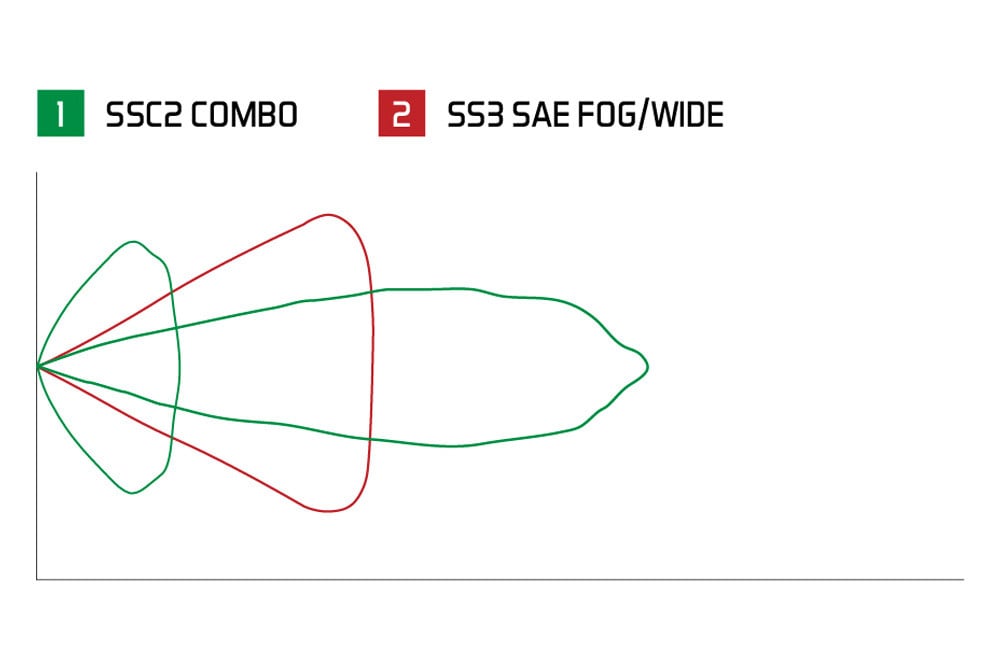

Diode Dynamics® - Fog Light Location Stage Pro Series 2" 2x36W/4x25.6W Square Fog Beam LED Light Kit, Lighted Diode Dynamics® - Fog Light Location Stage Pro Series Square LED Light Kit, Installed Diode Dynamics® - Fog Light Location Stage Pro Series Square LED Light Kit, Installed Diode Dynamics® - Fog Light Location Stage Pro Series Square LED Light Kit, Installed Diode Dynamics® - Fog Light Location Stage Pro Series Square LED Light Kit, Installed Diode Dynamics® - Fog Light Location Stage Pro Series Square LED Light Kit, Installed Diode Dynamics® - Fog Light Location Stage Pro Series 2" 2x36W/4x25.6W Square Fog Beam LED Light Kit, Light Beam

Diode Dynamics® DD7180 - Fog Light Location Mounted Stage Pro Series 2" 2x36W/4x25.6W Square Fog Beam LED Light Kit

0 reviews|Item # mpn4817403424

Vehicle SpecificCannot Confirm Fitment

We need more information

Confirm Fitment

Authorized Dealer

$1,349.95

In Stock (2) - Ships Tomorrow 07.16.26

Have a Question? Ask a Specialist

800-505-3274Live Chat

Vehicle Fitment

Ford

Specifications

Size	2"
Watts (per kit)	2x36W/4x25.6W
Beam pattern	fog beam
Bulb type	LED
Series	Stage Pro Series
Location	fog light location
Color/finish	black
Light Color	white
Shape	square
Voltage	9-16V
Amperage	2.7A
Raw lumens	5796; Measured lumens: 3000 / Raw lumens: 2898; Measured lumens: 1988
Color temperature	6000K
Lux @10M	119
Candelas	11900
Lux @10M	270
Candelas	27000 CD

Includes

(2) Pro SS3 white LED pods
(4) Pro SSC2 white LED pods
(2) Fog pocket brackets
(1) Dual-output fog harness
(1) OEM auxiliary switch 4-pin harness
(2) 3-way backlight splitters
(4) Zip ties
Mounting hardware and guide

Features

Bolt-on fitment
Adds SAE-compliant fog lights, and powerful offroad lighting
Harnesses included for independent control of road-legal and offroad lighting
Backlight feature provides amber accent light
Highly durable powdercoated stainless steel bracket
Engineered and assembled in USA
8-year warranty

Product Details

Fog Light Location Mounted Stage Pro Series 2" 2x36W/4x25.6W Square Fog Beam LED Light Kit (DD7180) by Diode Dynamics®. 6 Pieces. White light. 9-16V. 2.7A. Raw lumens: 5796; Measured lumens: 3000 / Raw lumens: 2898; Measured lumens: 1988. 6000K. If you are looking to add some serious functionality to your vehicle, look no further! The Stage Series Fog Pocket Kit for your vehicle from Diode Dynamics adds both road-legal fog lights and powerful offroad lighting. The CAD-designed brackets allow you to mount two SS3 LED Pods and SSC2 LED pods in the factory bumper openings. With the included harnesses, you'll be able to switch between road-legal fog lights and offroad lights with ease using your factory aux switch bank.
