Detroit Iron® DPRF-96-70TWD - Wiring Diagrams

Specifications

Features

• Developed to preserve valuable data about antique and classic rides
• Made with the utmost care for your specific year, make and model
• Designed to provide the exact copy of the original manual

Product Details

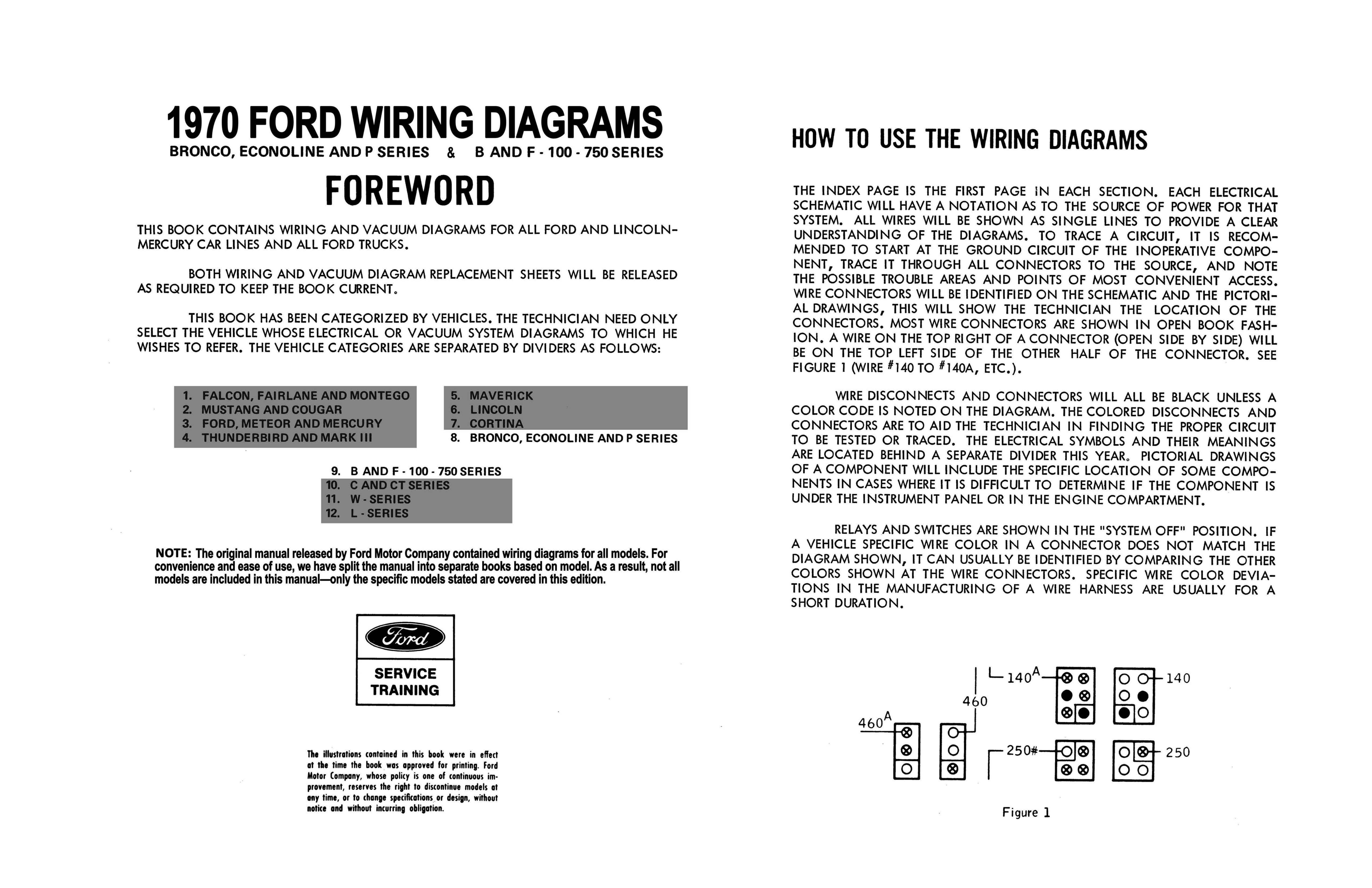

Wiring Diagrams by Detroit Iron®. This 1970 Ford Bronco, Econoline, P-Series & B-, F-Series Truck Wiring Diagrams is a high-quality, licensed PRINT reproduction of the service manual authored by Ford Motor Company and published by Detroit Iron. This OEM factory manual is 17 x 11 inches, COMB bound, shrink-wrapped and contains 116 pages of comprehensive electrical and vacuum circuit diagrams and diagnosis instructions. Service / repair manuals were originally written by the automotive manufacturer to be used by their dealership mechanics. The following 1970 Ford models are covered: F-100, F-250, F-350, F-500, Bronco, P-100, P-350, P-400, P-500, P-600, P-3500, P-4000, P-5000, P-6000, E-100 Econoline, E-200 Econoline, E-300 Econoline, F-600, F-700, F-750, F-1000, F-6000, F-7000, B-500, B-600, B-700, B-750, B-6000, B-7000. This factory-written Detroit Iron shop manual is perfect for the restorer or anyone working on one of these vehicles.
