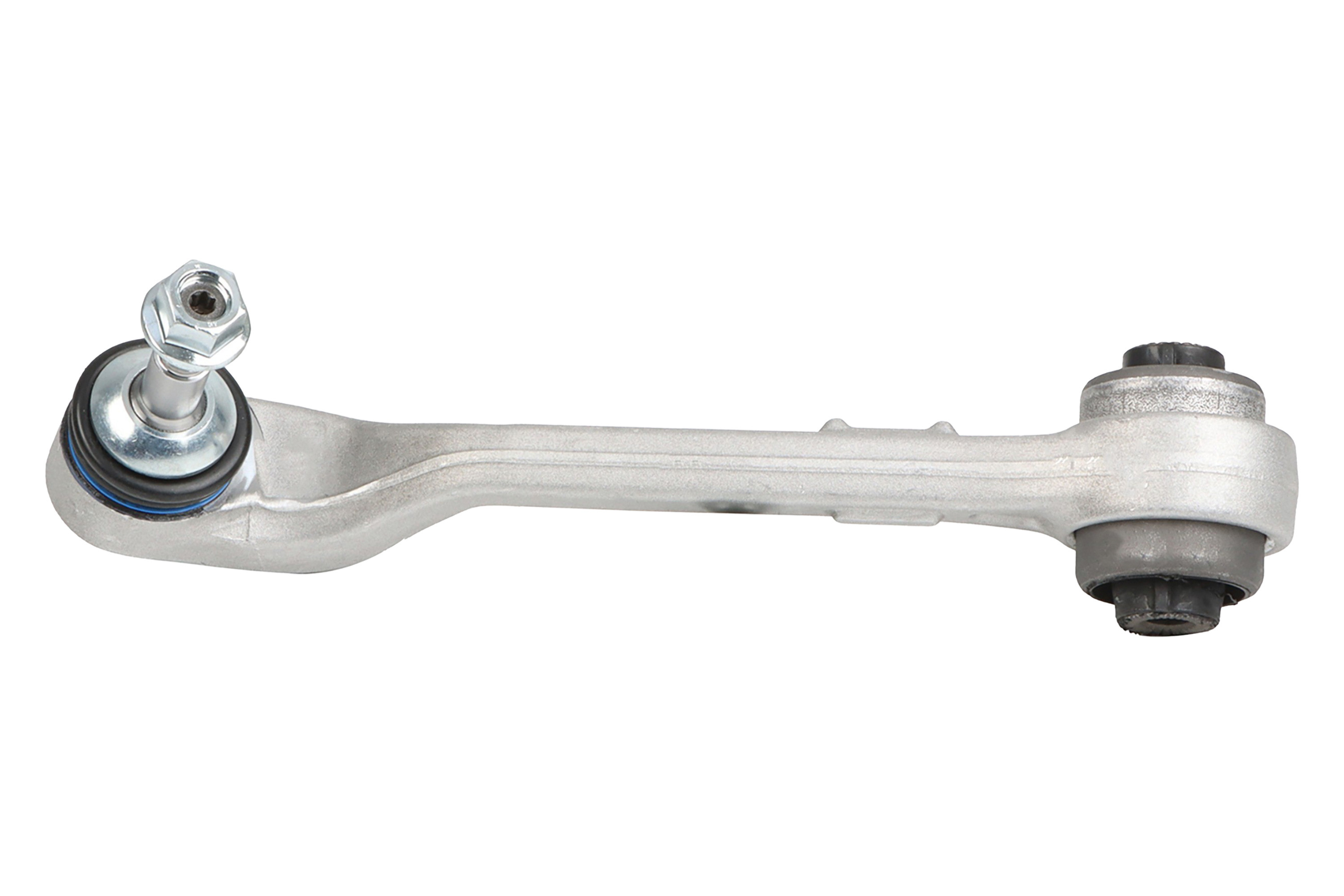

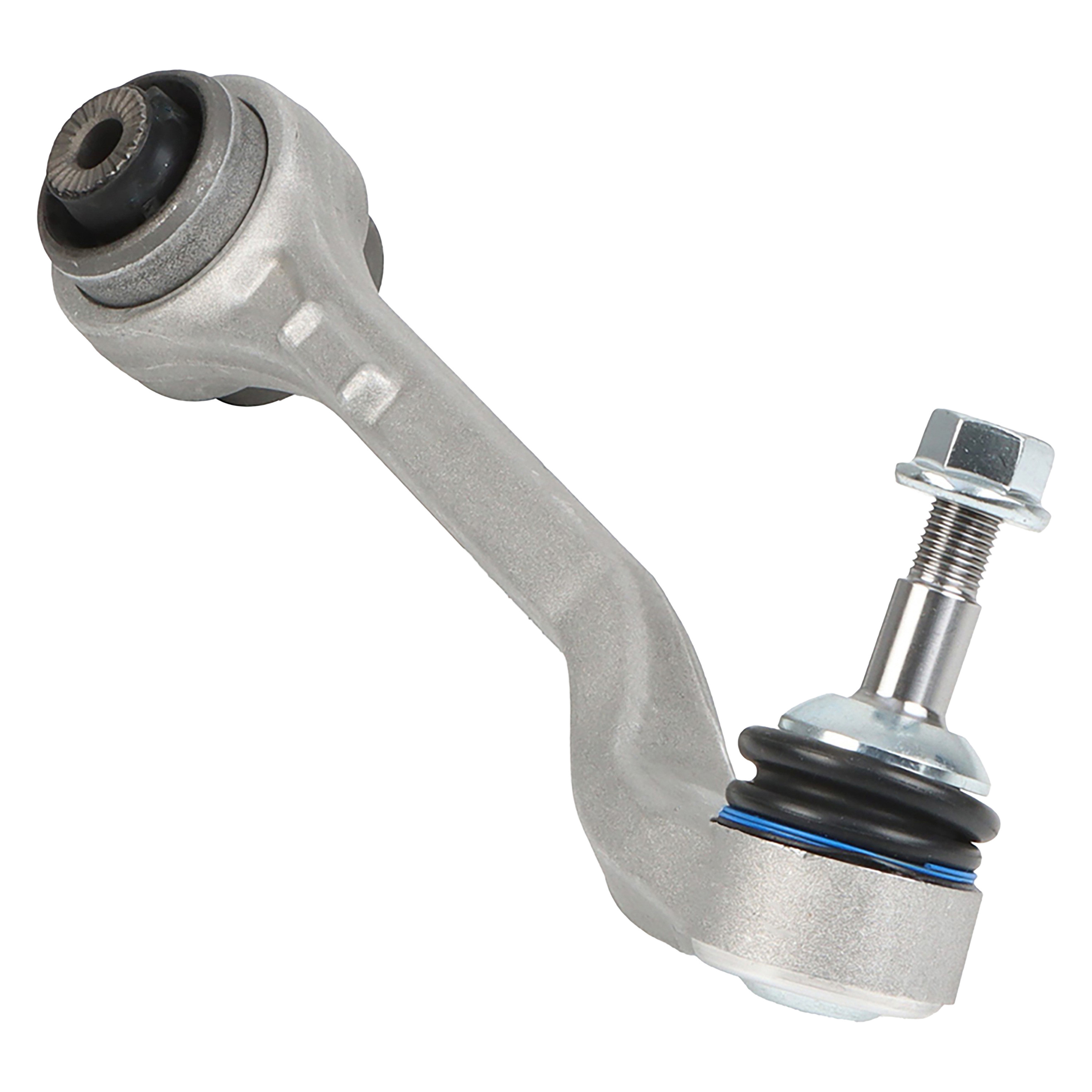

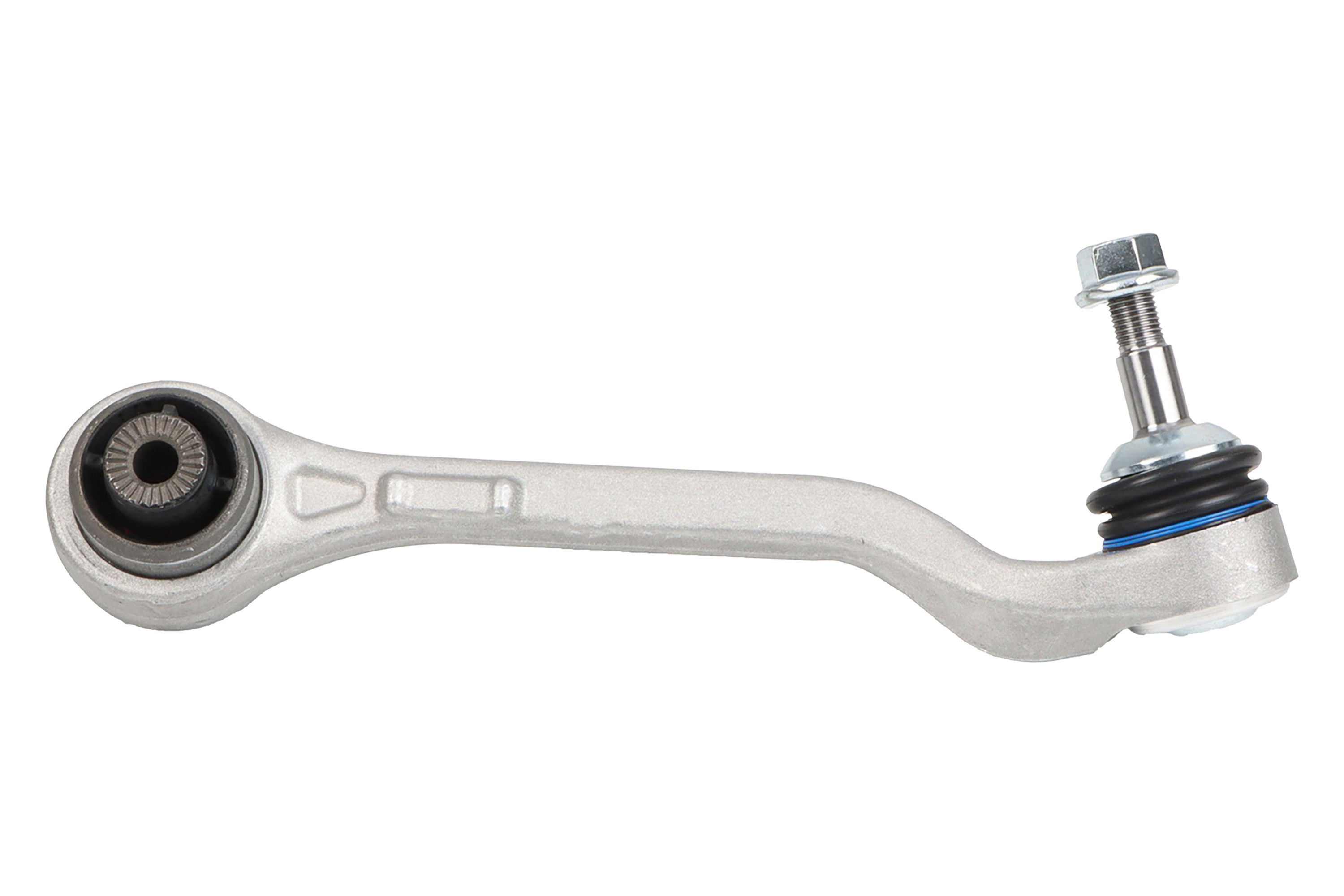

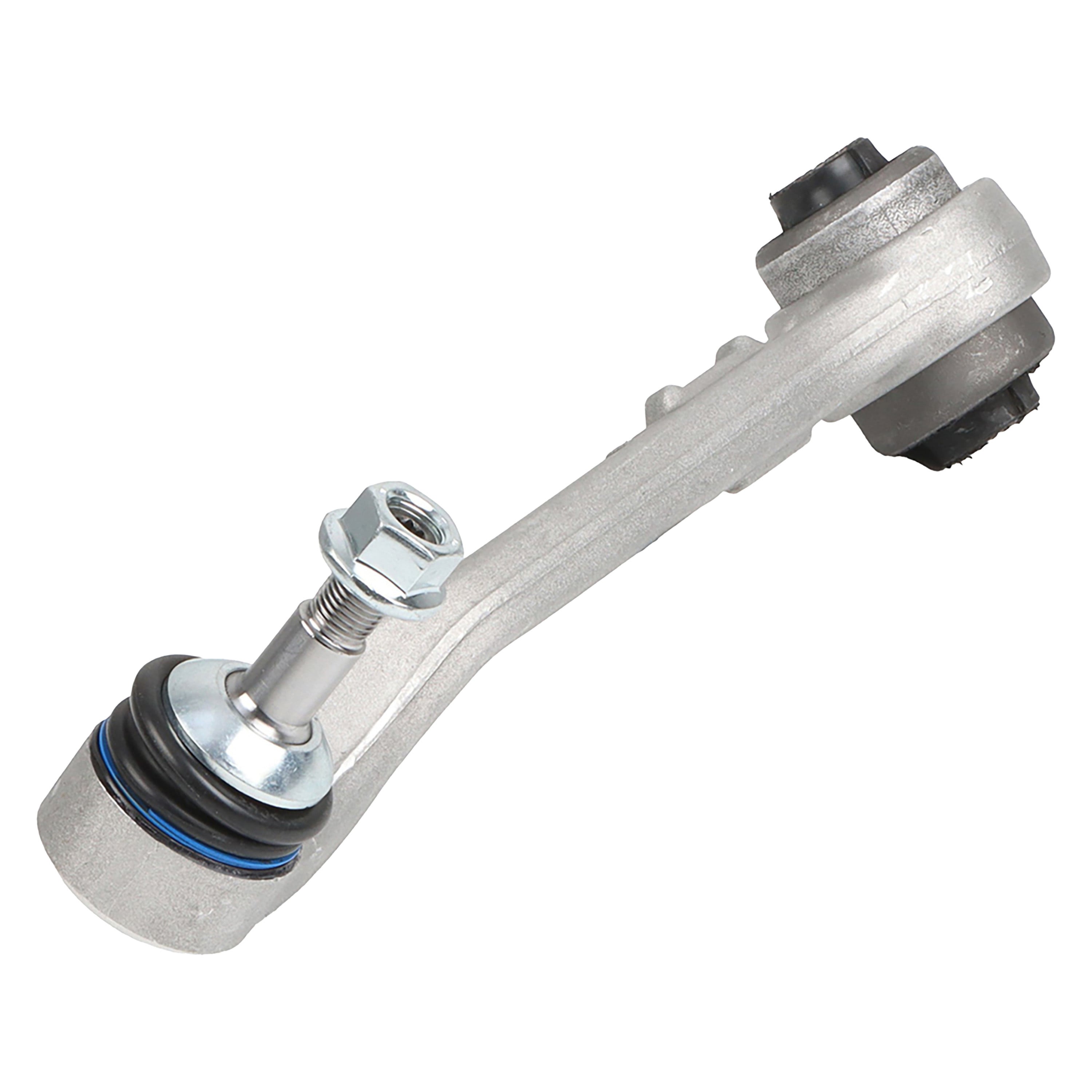

Delphi® TC4390 - Front Passenger Side Lower Forward Control Arm and Ball Joint Assembly

3 reviews|Item # mpn5190129456
Vehicle SpecificCannot Confirm Fitment
  • We need more information
Select Vehicle
Confirm Fitment
Authorized Dealer
$79.68
In Stock (2) - Ships within 24 hrs
Have a Question? Ask a Specialist
888-577-6964Live Chat

Vehicle Fitment

BMW

Specifications

Adjustable
No
Attachments Included
Yes
Ball Joint Included
Yes
Ball Joint Mounting Type
Machined
Ball Joint Stud Length
1.070 in
Ball Joint Stud Length
27.40 mm
Ball Joint Stud Type
Threaded
Ball Joint Thread Diameter
0.550 in
Ball Joint Thread Diameter
14.00 mm
Bearing Material
Polyoxymethilen (POM)
Boot Color
Black
Boot Material
Chloroprene Rubber (CR)
Bore Diameter
1.970 in
Bore Diameter
50.20 mm
Bushing Color
Black
Bushing Inside Diameter
0.480 in
Bushing Inside Diameter
12.20 mm
Bushing Length
2.980 in
Bushing Length
75.80 mm
Bushing Material
Rubber
Bushings Included
Yes
Castle Nut Included
No
Cone Outside Diameter
16.20 mm
Control Arm Color
Gray
Control Arm Material
Aluminum
Control Arm Maximum Length
13.460 in
Control Arm Maximum Length
342.00 mm
Control Arm Maximum Width
2.980 in
Control Arm Maximum Width
75.80 mm
Control Arm Type
Casting/Forged
Cotter Pin Included
No
Dust Boot Included
Yes
Dust Boot Material
Chloroprene Rubber (CR)
End 1 Thread Diameter
0.550 in
End 1 Thread Diameter
14.00 mm
End 1 Thread Pitch
0.059 in
End 1 Thread Pitch
1.50 mm
Finish
Uncoated
Grade Type
Standard
Greasable
No
Grease Fitting Included
No
Length
111.00 mm
Length
4.370 in
Locking Nut Included
Yes
Mounting Hardware Included
Yes
Mounting Hole Diameter
0.480 in
Mounting Hole Diameter
12.20 mm
Mounting Hole Quantity
1
Pre Greased
Yes
Reinforced
No
Steering Type
Power
Thread Diameter
0.550 in
Thread Diameter
14.00 mm
Thread Direction
Clockwise (Right)
Thread Pitch
0.059 in
Thread Pitch
1.50 mm

Features

  • Designed to deliver trouble-free, consistent performance
  • Right for your vehicle and lifestyle
  • Made from high-quality materials for ultimate durability
  • Manufactured to meet or exceed strict quality requirement

Product Details

Front Passenger Side Lower Forward Control Arm and Ball Joint Assembly (TC4390) by Delphi®. Does your luxury car ride like an old buckboard wagon? Is your pickup still bouncing long after the bump? If so your suspension is in need of repair, but before you waste your time and gas running out to the auto parts chain store, check out their great selection of replacement suspension parts.

When you need to make clutch/transmission repairs you can battle the traffic and stand in line at the auto parts chain store, only to be told that what you need is out of stock and has to be ordered. And if they have the parts can you be assured of the quality? Do you recognize the name on the box? And how do you know if you're getting the best price?

You won't have those concerns with their replacement clutch and transmission parts. They carry only top name products from well-known OE and aftermarket suppliers. In fact, many of their manufacturers are suppliers to the vehicle manufacturers, so the parts you get from us may be the same as the ones that came on your car or truck. They carry everything from clutch kits, master cylinders, slave cylinders and release bearings for manual transmission vehicles to filters, gaskets, solenoids and mounts for automatic transmission vehicles. And unlike many other on-line vendors, they don't just have the big items and let you scramble for the details. They carry everything needed to complete the job, including transmission fluid.

Brand:
Part Number:
TC4390
UPC:
689604403747

Reviews

(3)
Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.
/5
1-3 of 3 Reviews
5 of 5
Posted by oleg (Brooklyn, NY) / July 10, 20202013 Honda Pilot
5 of 5
Posted by Drickpaul (Bronx, NY) / March 17, 20182010 Audi S4
5 of 5
Fit Perfectly!
Fit perfectly!
Posted by Alex (Eastbrook, ME) / April 20, 20182005 Saab 9-3
