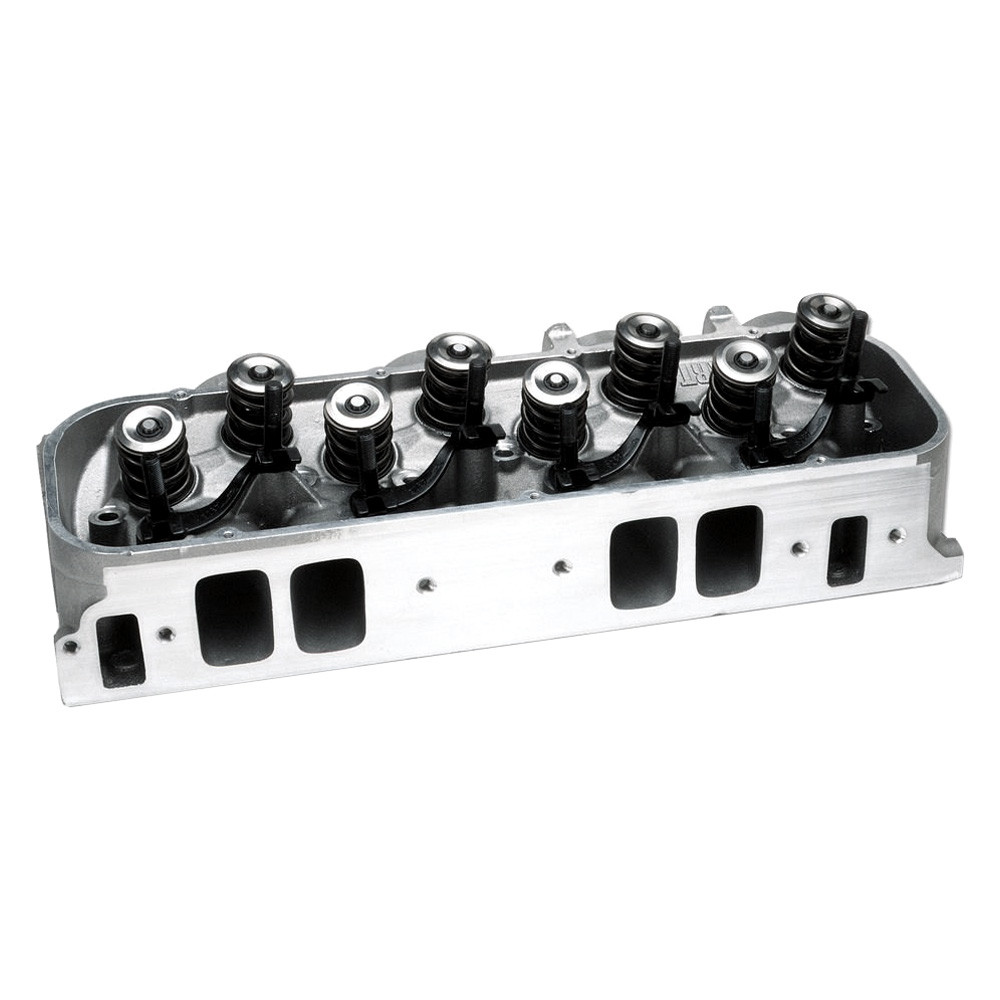

Name: Dart® 19300030 - Pro 1 Cylinder Head
Brand: Dart
SKU: mpn358595530
Price: 1558.34 USD
Availability: InStock

Vehicle Fitment

Information is not available

Specifications

Combustion Chamber Volume	121 cc
Intake Valve Diameter	2.300"
Exhaust Valve Diameter	1.880"
Port Volume	345 cc

Includes

Intake Valves: No
Exhaust Valves: No
Valve Springs: No
Damper Spring: No
Retainers: No
Locks: No
Valve Stem Seals: No
Rocker Arms: No
Rocker Arm Studs: No
Rocker Arm Nuts: No
Guideplates: No
Valve Guides: Yes

Features

Premium alloy: Dart aluminum heads are cast from virgin 355-T61 aerospace alloy for superior strength and integrity
Bolt on compatibility: 2 degree rolled valve angle and standard spacing. Accommodates all stock accessories
Heart shaped 121cc chambers improve combustion efficiency
Raised spark plug location improves flame travel for a quicker, more complete burn, producing more power
Multi-angle intake seats and radiused exhaust seats dramatically increase airflow
Hardened exhaust seats are compatible with unleaded gasoline
Exhaust ports raised .300" to improve flow (requires 1" longer head bolts next to exhaust ports)
Spark plug holes are machined for gasketed 3/4" reach plugs
Manganese bronze valve guides extend cylinder head life and reduce stem wear
All cylinder heads are sold individually

Product Details

Pro 1 Cylinder Head by Dart®. Inspired by championship winning Pro Stock designs, the Pro1's race proven features include rolled valve angles, improved spark plug location, extra long intake valves, raised exhaust ports and fast burn chambers - Yet the Pro1 can be used with off the shelf pistons, valve train components and intake manifolds
