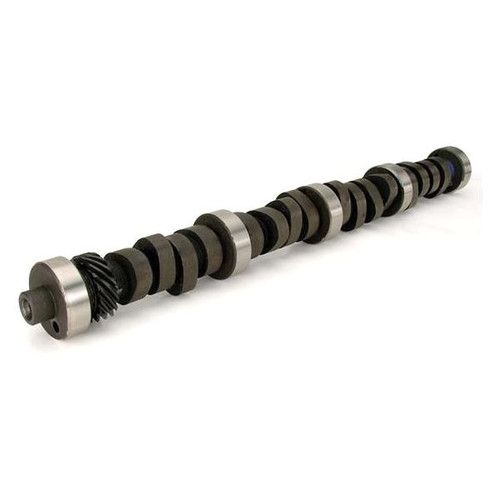

Name: COMP Cams® 35-250-4 - Xtreme Energy™ Hydraulic Flat Tappet Camshaft
Brand: COMP Cams
SKU: mpn1631905
Price: 339.23 USD
Availability: InStock

Vehicle Fitment

This part is universal

Fits Following Engines: 351W Ford Small Block V8.

Specifications

Low-End RPM	2300
Top-End RPM	6500
Intake Duration at 0.050 In Lift	240°
Exhaust Duration at 0.050 In Lift	246°
Intake Valve Lift	0.541"
Exhaust Valve Lift	0.544"
Advertised Intake Duration	284°
Advertised Exhaust Duration	296°
Lobe Separation	110°
Intake Centerline	106°
Grind Number	XE284H
Attachment	1-Bolt
Material	Cast Iron
Valve Timing	0.006
Lobe Lift Intake	0.339"
Lobe Lift Exhaust	0.341"
Intake Open BTDC	34°
Exhaust Open BBDC	80°
Intake Close ABDC	69°
Exhaust Close ATDC	35°

Includes

Camshaft
Assembly Lubricant

Features

High quality at an affordable price
Expertly made from premium materials
Built to match your exact requirements

Product Details

Xtreme Energy™ Hydraulic Flat Tappet Camshaft (35-250-4) by COMP Cams®. Designed utilizing the latest technology, this product by COMP Cams features premium quality and will perform better than advertised. Perfect for your vehicle and lifestyle, it is manufactured to meet or exceed stringent industry standards.

Installation

COMP Cams® - Xtreme Energy™ Hydraulic Flat Tappet Camshaft (Ford Small Block V8) Installation Instruction

COMP Cams® - Xtreme Energy™ Hydraulic Flat Tappet Camshaft (Ford Small Block V8) Installation Instruction COMP Cams® - Product Catalog COMP Cams® - Benefits COMP Cams® - Comparison Made In USA COMP Cams Authorized Dealer FAQ Technology About us

Brand:

COMP Cams

Part Number:

35-250-4

UPC:

036584031253

Alternate MPN:

352504

Warranty

LIMITED WARRANTY

COMP Cams® warrants that all of the products are free from defects in material and workmanship, and against excessive wear for a period of twelve months from date of purchase. This limited warranty shall apply for a period of one year from the date of purchase and shall cover only the original purchaser. This warranty is valid on camshafts only where new lifters and proper valve springs are used, such as those found in COMP Cams® Kits.

There is absolutely no warranty on the following:

A) Any part used in racing applications
B) Any product that has been physically altered or improperly installed/maintained
C) Any product used in an improper application, abused, or not used in conjunction with the proper parts

There are no implied warranties of merchantability or fitness for a particular purpose. There are no warranties which extend beyond the description on the face hereof. COMP Cams®, Inc. will not be responsible for incidental and consequential damages, property damage, or personal injury/damage to the extent permitted by law.

There is no implied warranties of merchantability or fitness for a particular purpose. There are no warranties which extend beyond the description on the face hereof.

Some states do not allow a limitation on how long an implied warranty lasts or do not allow the exclusion or limitation of consequential damages, so those limitations and exclusions may not apply to all customers.

This limited warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.

Magnuson-Moss Warranty Act:

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)) Learn More
