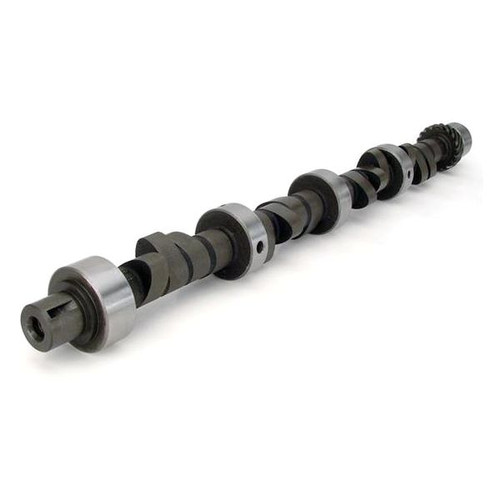

Name: COMP Cams® 20-224-4 - Xtreme Energy™ Hydraulic Flat Tappet Camshaft
Brand: COMP Cams
SKU: mpn1565734
Price: 339.23 USD
Availability: InStock

Vehicle Fitment

This part is universal

Fits Following Engines: 360 CID Chrysler Small Block V8
Fits Following Engines: 273 CID Chrysler Small Block V8
Fits Following Engines: 318 CID Chrysler Small Block V8
Fits Following Engines: 340 CID Chrysler Small Block V8

Specifications

Low-End RPM	1800
Top-End RPM	6000
Intake Duration at 0.050 In Lift	230°
Exhaust Duration at 0.050 In Lift	236°
Intake Valve Lift	0.488"
Exhaust Valve Lift	0.491"
Advertised Intake Duration	274°
Advertised Exhaust Duration	286°
Lobe Separation	110°
Intake Centerline	106°
Grind Number	XE274H
Attachment	1-Bolt
Material	Cast Iron
Valve Timing	0.006
Lobe Lift Intake	0.325"
Lobe Lift Exhaust	0.327"
Intake Open BTDC	31°
Exhaust Open BBDC	77°
Intake Close ABDC	63°
Exhaust Close ATDC	29°

Includes

Camshaft
Assembly Lubricant

Features

High quality at an affordable price
Expertly made from premium materials
Built to match your exact requirements

Product Details

Xtreme Energy™ Hydraulic Flat Tappet Camshaft (20-224-4) by COMP Cams®. Designed utilizing the latest technology, this product by COMP Cams features premium quality and will perform better than advertised. Perfect for your vehicle and lifestyle, it is manufactured to meet or exceed stringent industry standards.

Installation

COMP Cams® - Xtreme Energy™ Hydraulic Flat Tappet Camshaft (Chrysler Small Block V8) Installation Instruction

COMP Cams® - Xtreme Energy™ Hydraulic Flat Tappet Camshaft (Chrysler Small Block V8) Installation Instruction COMP Cams® - Product Catalog COMP Cams® - Benefits COMP Cams® - Comparison Made In USA COMP Cams Authorized Dealer FAQ Technology About us

Brand:

COMP Cams

Part Number:

20-224-4

UPC:

036584046967

Alternate MPN:

202244

Warranty

LIMITED WARRANTY

COMP Cams® warrants that all of the products are free from defects in material and workmanship, and against excessive wear for a period of twelve months from date of purchase. This limited warranty shall apply for a period of one year from the date of purchase and shall cover only the original purchaser. This warranty is valid on camshafts only where new lifters and proper valve springs are used, such as those found in COMP Cams® Kits.
