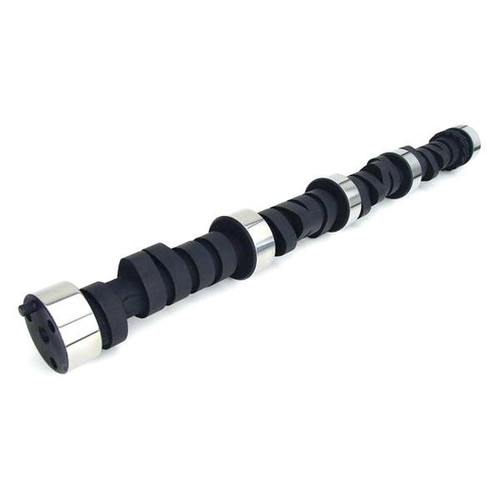

Name: COMP Cams® 11-208-3 - Magnum™ Hydraulic Flat Tappet Camshaft
Brand: COMP Cams
SKU: mpn1494485
Price: 326.11 USD
Availability: InStock

Vehicle Fitment

This part is universal

Fits Following Engines: 409 CID Chevy Big Block V8
Fits Following Engines: 402 CID Chevy Big Block V8
Fits Following Engines: 427 Chevy Big Block V8 (Mark I "Z11")
Fits Following Engines: 396 CID Chevy Big Block V8
Fits Following Engines: 427 CID Chevy Big Block V8

Specifications

Low-End RPM	2000
Top-End RPM	6000
Intake Duration at 0.050 In Lift	230°
Exhaust Duration at 0.050 In Lift	230°
Intake Valve Lift	0.520"
Exhaust Valve Lift	0.520"
Advertised Intake Duration	280°
Advertised Exhaust Duration	280°
Lobe Separation	110°
Intake Centerline	106°
Grind Number	280H
Attachment	3-Bolt
Material	Cast Iron
Valve Timing	0.006
Lobe Lift Intake	0.306"
Lobe Lift Exhaust	0.306"
Intake Open BTDC	34°
Exhaust Open BBDC	74°
Intake Close ABDC	66°
Exhaust Close ATDC	26°

Includes

Camshaft
Assembly Lubricant

Features

Great high rpm power
Easy on valve train parts
Can be used with mild ratio rocker arms and traditional performance valve springs
Really need converter and gear change
These like compression (9.5:1 & up)
Larger Magnums are a little lazy at low RPM

Product Details

Magnum™ Hydraulic Flat Tappet Camshaft (11-208-3) by COMP Cams®. This premium product is the best way to go for those looking for the highest quality replacement that offers supreme levels of quality, performance and reliability. Designed to provide a perfect fit for a hassle free installation, this reliable product can help you get you vehicle back on the road faster and easier.

Installation

COMP Cams® - Magnum™ Hydraulic Flat Tappet Camshaft (Chevy Big Block V8) Installation Instruction
