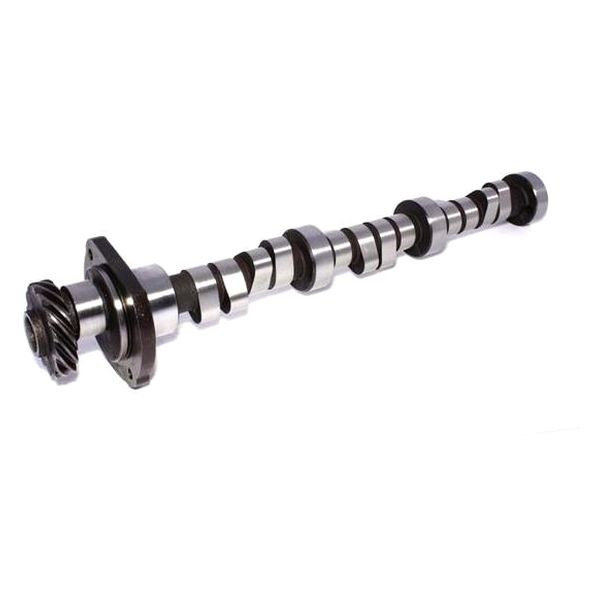

COMP Cams® - High Energy™ Hydraulic Roller Tappet Camshaft

COMP Cams® 69-300-8 - High Energy™ Hydraulic Roller Tappet Camshaft

0 reviews|Item # mpn1553734

Vehicle Specific

We need more information

Confirm Fitment

Notes:

Requires screw-in studs and guide plates
Standard weight and lightweight retainers
Requires distributor gear upgrade
Requires Valve Springs
Requires 0.150" longer pushrod
Requires machining on cylinder heads
This is a Race Only product that is to be used solely for competition. It cannot be used on vehicles that are operated on public streets, roads or highways. Its use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization. Any other use, including recreational off-road use, could be in violation of local, state and federal laws. Shipping Restriction: CA, NY, ME

Authorized Dealer

$652.98

In Stock (4) - Ships in 2 to 3 days

Have a Question? Ask a Specialist

888-577-6964Live Chat

Vehicle Fitment

Buick

Pontiac

Specifications

Low-End RPM	1200
Top-End RPM	5800
Intake Duration at 0.050 In Lift	212°
Exhaust Duration at 0.050 In Lift	212°
Intake Valve Lift	0.504"
Exhaust Valve Lift	0.504"
Advertised Intake Duration	264°
Advertised Exhaust Duration	264°
Lobe Separation	110°
Intake Centerline	110°
Grind Number	264HR
Attachment	2-Bolt
Material	Austempered Ductile Iron
Valve Timing	0.006
Lobe Lift Intake	0.325"
Lobe Lift Exhaust	0.325"
Intake Open BTDC	-4°
Exhaust Open BBDC	36°
Intake Close ABDC	36°
Exhaust Close ATDC	-4°

Features

Work well with mainly stock components
Good blend of efficiency and performance
Perfect choice for performance rebuilds
Not the optimum choice for racing applications
Great choice for engines where performance upgrades are not planned

Product Details

High Energy™ Hydraulic Roller Tappet Camshaft (69-300-8) by COMP Cams®. This high-grade product was designed with craftsmanship and key attention to detail and manufactured using leading-edge innovations by experienced and knowledgeable engineering staff. It ensures trustworthy quality and superior dependability. Backed by technology and trust, this COMP Cams product is expected to deliver reliable operation and provide seamless service year after year.

Installation

COMP Cams® - High Energy™ Hydraulic Roller Tappet Camshaft Installation Instruction

Made by the leader in technological development, COMP Cams, this first-rate product ensures to operate at its full efficiency. It was developed using the most sophisticated manufacturing processes and test equipment for the ultimate in efficiency. Refined by COMP Cams to the last detail, this product is the one you can fully count on. Crafted from reliable materials to rigorous standards, the product ensures high durability and enduring value. It will faithfully serve for many miles to come, providing great resistance to impacts and abuse.

COMP Cams® - High Energy™ Hydraulic Roller Tappet Camshaft Installation Instruction COMP Cams® - Benefits COMP Cams® - Comparison COMP Cams® - Catalogs Made In USA COMP Cams Authorized Dealer FAQ Technology About us

Brand:

COMP Cams

Part Number:

69-300-8

UPC:

036584063643

Alternate MPN:

693008

Warranty

LIMITED WARRANTY

COMP Cams® warrants that all of the products are free from defects in material and workmanship, and against excessive wear for a period of twelve months from date of purchase. This limited warranty shall apply for a period of one year from the date of purchase and shall cover only the original purchaser. This warranty is valid on camshafts only where new lifters and proper valve springs are used, such as those found in COMP Cams® Kits.

There is absolutely no warranty on the following:

A) Any part used in racing applications
B) Any product that has been physically altered or improperly installed/maintained
C) Any product used in an improper application, abused, or not used in conjunction with the proper parts

There are no implied warranties of merchantability or fitness for a particular purpose. There are no warranties which extend beyond the description on the face hereof. COMP Cams®, Inc. will not be responsible for incidental and consequential damages, property damage, or personal injury/damage to the extent permitted by law.

There is no implied warranties of merchantability or fitness for a particular purpose. There are no warranties which extend beyond the description on the face hereof.

Some states do not allow a limitation on how long an implied warranty lasts or do not allow the exclusion or limitation of consequential damages, so those limitations and exclusions may not apply to all customers.

This limited warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.

Magnuson-Moss Warranty Act:

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)) Learn More
