COMP Cams® - Drag Race™ Mechanical Roller Tappet Camshaft (Chevy Big Block V8)

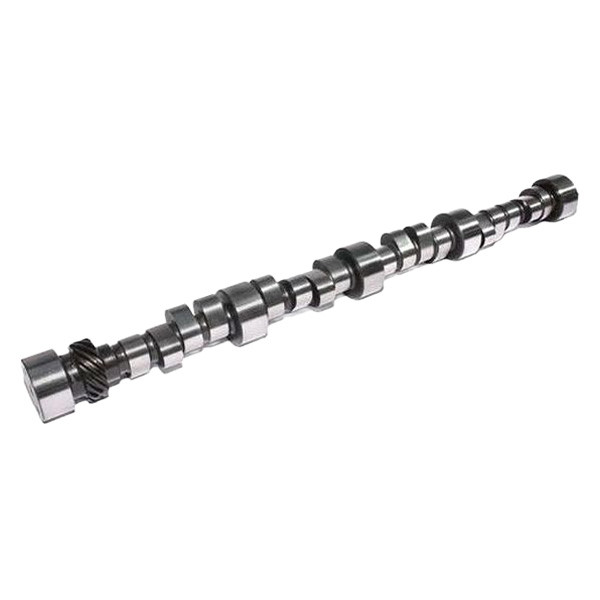

COMP Cams® 11-736-9 - Drag Race™ Mechanical Roller Tappet Camshaft

0 reviews|Item # mpn578573

Engine Type Specific

Fits Following Engines: 402 CID Chevy Big Block V8
Fits Following Engines: 427 Chevy Big Block V8 (Mark I "Z11")
Fits Following Engines: 427 CID Chevy Big Block V8
Fits Following Engines: 409 CID Chevy Big Block V8
Fits Following Engines: 396 CID Chevy Big Block V8
Fits Following Engines: 454 CID Chevy Big Block V8

Notes:

Requires upgraded gear, thrust button and wear plate
Must use bronze tip fuel pump pushrod when using high pressure or high volume pump
Requires Bronze Gear Thrust Button And Wear Plate
Requires Valve Springs
This is a Race Only product that is to be used solely for competition. It cannot be used on vehicles that are operated on public streets, roads or highways. Its use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization. Any other use, including recreational off-road use, could be in violation of local, state and federal laws. Shipping Restriction: CA, NY, ME

Authorized Dealer

$639.63

In Stock (1) - Ships in 2 to 3 days

Have a Question? Ask a Specialist

800-505-3274Live Chat

Vehicle Fitment

This part is universal

Fits Following Engines: 402 CID Chevy Big Block V8
Fits Following Engines: 427 Chevy Big Block V8 (Mark I "Z11")
Fits Following Engines: 427 CID Chevy Big Block V8
Fits Following Engines: 409 CID Chevy Big Block V8
Fits Following Engines: 396 CID Chevy Big Block V8
Fits Following Engines: 454 CID Chevy Big Block V8

Specifications

Low-End RPM	5000
Top-End RPM	7800
Intake Duration at 0.050 In Lift	286°
Exhaust Duration at 0.050 In Lift	294°
Intake Valve Lift	0.775"
Exhaust Valve Lift	0.748"
Advertised Intake Duration	324°
Advertised Exhaust Duration	332°
Lobe Separation	110°
Grind Number	324IR-10
Attachment	3-Bolt
Material	Billet Steel
Valve Timing	0.020
Intake Open BTDC	33°
Exhaust Open BBDC	77°
Intake Close ABDC	73°
Exhaust Close ATDC	37°

Features

High quality at an affordable price
Expertly made from premium materials
Built to match your exact requirements

Product Details

Drag Race™ Mechanical Roller Tappet Camshaft (11-736-9) by COMP Cams®. This premium product is the best way to go for those looking for the highest quality replacement that offers supreme levels of quality, performance and reliability. Designed to provide a perfect fit for a hassle free installation, this reliable product can help you get you vehicle back on the road faster and easier.

Installation

COMP Cams® - Drag Race™ Mechanical Roller Tappet Camshaft (Chevy Big Block V8) Installation Instruction

COMP Cams® - Drag Race™ Mechanical Roller Tappet Camshaft (Chevy Big Block V8) Installation Instruction COMP Cams® - Product Catalog COMP Cams® - Benefits COMP Cams® - Comparison Made In USA COMP Cams Authorized Dealer FAQ Technology About us

Brand:

COMP Cams

Part Number:

11-736-9

UPC:

036584030287

Alternate MPN:

117369

Warranty

LIMITED WARRANTY

COMP Cams® warrants that all of the products are free from defects in material and workmanship, and against excessive wear for a period of twelve months from date of purchase. This limited warranty shall apply for a period of one year from the date of purchase and shall cover only the original purchaser. This warranty is valid on camshafts only where new lifters and proper valve springs are used, such as those found in COMP Cams® Kits.

There is absolutely no warranty on the following:

A) Any part used in racing applications
B) Any product that has been physically altered or improperly installed/maintained
C) Any product used in an improper application, abused, or not used in conjunction with the proper parts

There are no implied warranties of merchantability or fitness for a particular purpose. There are no warranties which extend beyond the description on the face hereof. COMP Cams®, Inc. will not be responsible for incidental and consequential damages, property damage, or personal injury/damage to the extent permitted by law.

There is no implied warranties of merchantability or fitness for a particular purpose. There are no warranties which extend beyond the description on the face hereof.

Some states do not allow a limitation on how long an implied warranty lasts or do not allow the exclusion or limitation of consequential damages, so those limitations and exclusions may not apply to all customers.

This limited warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.

Magnuson-Moss Warranty Act:

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)) Learn More
