Specifications
| Payload distributed capacity 2200lbs |
| Tie-down load rating 400lbs per tie-down |
| Bearing load rating combined load rating of bearings = 28,544 |
| Load 2 - 4840 ea. |
| Carrier 2 - 3019 ea. |
| Side-thrust 2 - 1573 ea. |
| Plus-nut rating (1/8" steel) 4-6 1500lbs. each |
| Extension 100% |
| Length 36" - 95" |
| Width 22" - 48" |
| Profile / deck height (inches) 4 3/4" |
| Side rails 4" with 8" high slides |
| Grab rail based on width of unit |
| Weight 193-266 lbs |

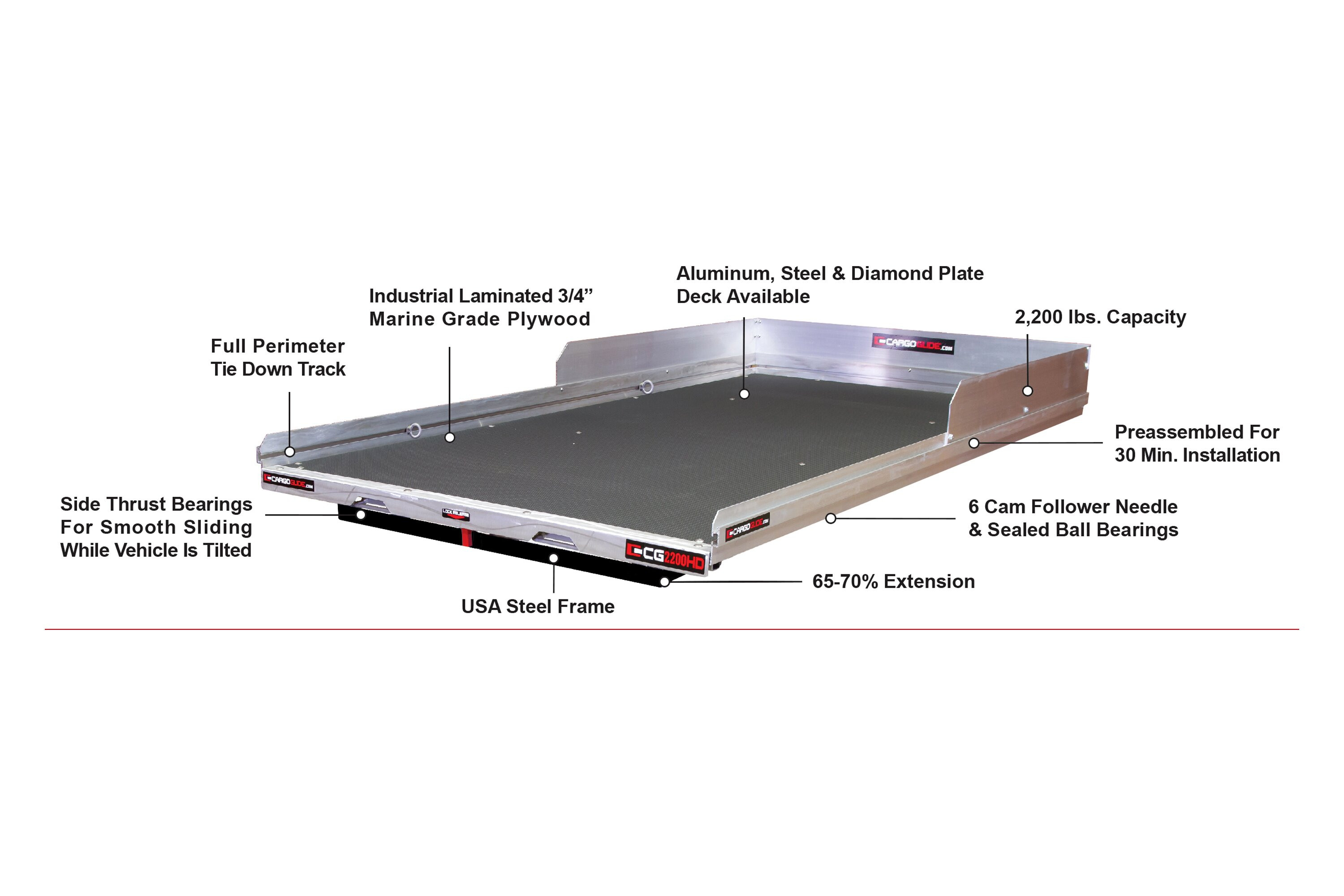

Features
- Makes loading and unloading your cargo a lot easier, safer and quicker
- Provides easy and convenient access to your gear from the back of your vehicle
- 75% of the cargo tray length slides out on short bed trucks
- 70% of the cargo tray length slides out on long beds
- Sturdy steel frame construction
- Real plywood deck with a laminated surface for superior strength and durability
- Includes 10 bearings for dependable, lasting cargo support
- 4 full complement double row
- 6 permanently sealed ball bearings
- Equipped with industrial 4-inch high extruded 6061-T6 thick aluminum side rails
- Rails has a slot style infinitely adjustable tie down track around all the three sides
- 4 adjustable marine grade tie down eyebolts make securing cargo easy and versatile
- Includes 8-inch high side extensions on the first four feet of the rails at the cab end
- 100% fully assembled
Product Details

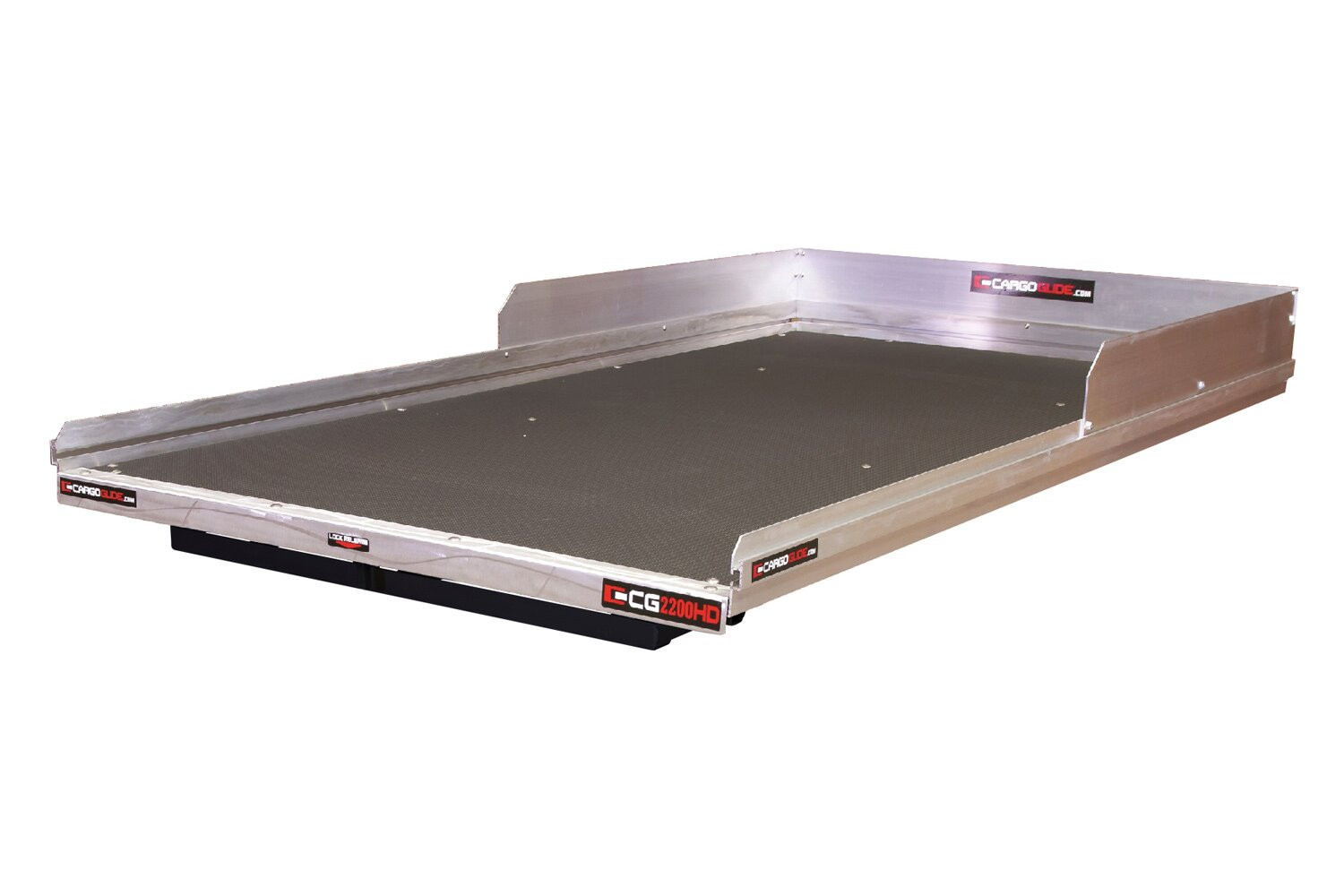

Universal 2200HD Series Cargo Slide by CargoGlide®. Loading, unloading and accessing your gear has never been so easy, safe and fast - experience it with the CargoGlide. This over-the-top sliding tray features a solid steel frame construction with a laminated plywood deck which extends up to 70 % or to 75 %, making it the most convenient way to get all your tools, materials and products from the back of a pickup truck, van or SUV.
Installation
Tired of scuffing your knees and hurting your back after crawling in the back of your truck, van or SUV every time you need something out of your vehicle? When it comes to cutting-edge solutions for hauling and accessing all your gear, CargoGlide is hands down the best option for pickup truck, van, SUV and light commercial use. The CargoGlide features a sturdy steel-framed, real plywood deck with a laminated surface that offers the 75 % extension on short bed trucks and 70 % on long beds. This allows you to simply slide your cargo out of the back of your vehicle to reach hundreds of pounds of toys, tools, equipment and materials you need to play harder and work smarter.
This premium slide out tray comes with superior bearings, including full complement permanently sealed ball bearings that provide reliable, long-lasting support for all your gear and ensure that everything stays in place safe and secure. The CargoGlide also features industrial 4-inch side rails manufactured from the highest-grade 6061-T6 thick aluminum for rock-solid strength and impeccable durability, with a slot style infinitely adjustable tie-down track around all three sides, and has 4 adjustable marine grade tie-down eyebolts to make securing your cargo easier, faster, safer and more versatile. The CargoGlide rails have 8-inch high side extensions on the first four feet at the cab end that help contain more gear.
