Vehicle Fitment

Cadillac

Chevy

GMC

Specifications

Brand	B&M®
Finish	Black Anodized
Material	A356.0-T6 Aluminum
Additional Fluid Capacity (qts)	Yes
Additonal Fluid Capacity (qts)	No
Bolt Count	12
Bolt Quantity	12
Bolt/Studs Included	Yes
California Proposition 65 Chemical Name	Chromium (hexavalent compounds)
California Proposition 65 Required	Yes
Call Out Size (in)	3.55
Carrier Main Cap Support	Yes

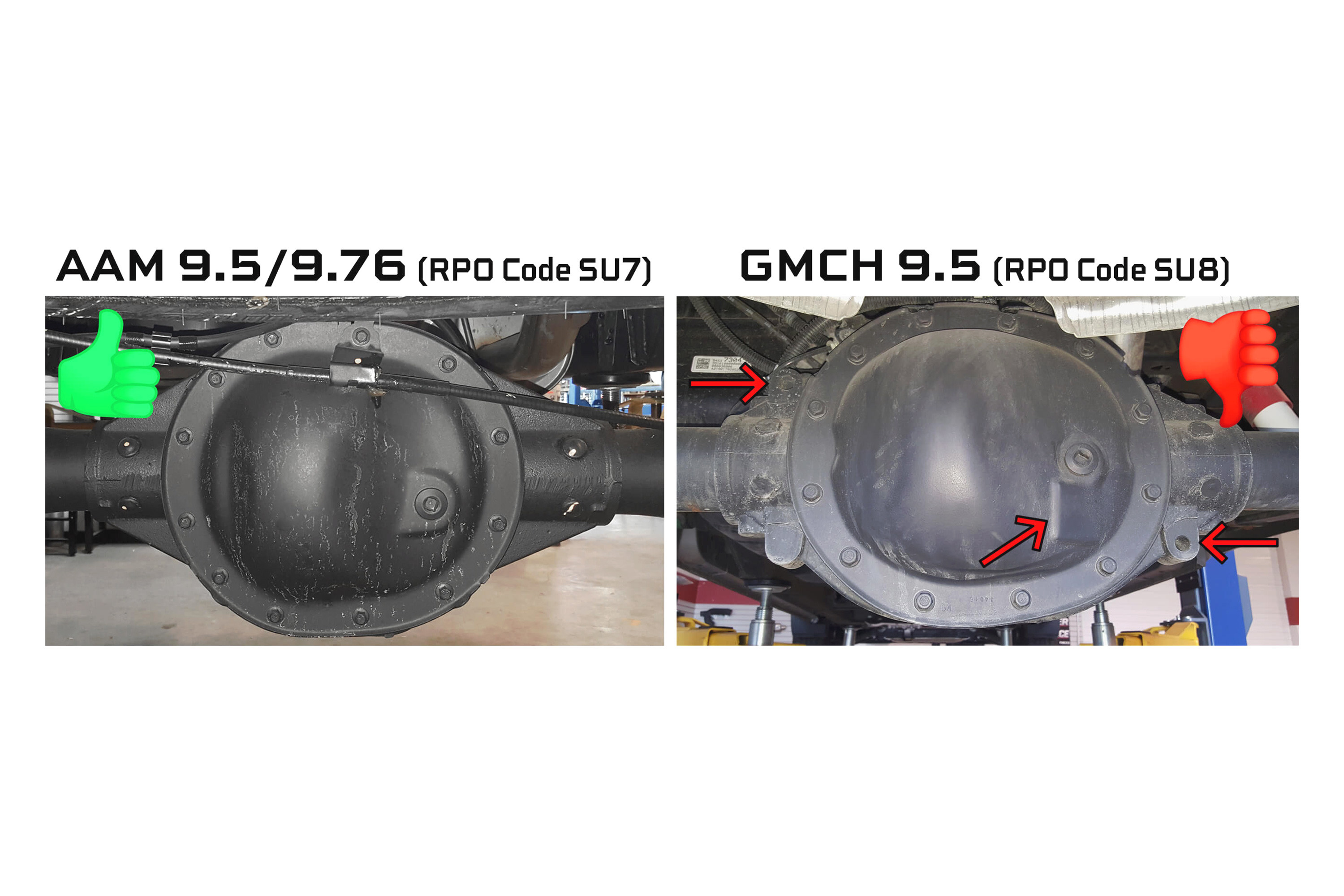

Differential Cover Bolt Pattern	AAM 9.5/9.76
Differential Thickness (in)	4
Drain Plug Included	Yes
Emission Code	5
Filler Plug Included	Yes
Gasket Included	No
Gasket Or Seal Included	No
Gaskets Included	No
Grade Type	Performance
Mounting Bolt Hole Quantity	12
Mounting Bolts Included	Yes
Studs Included	Yes

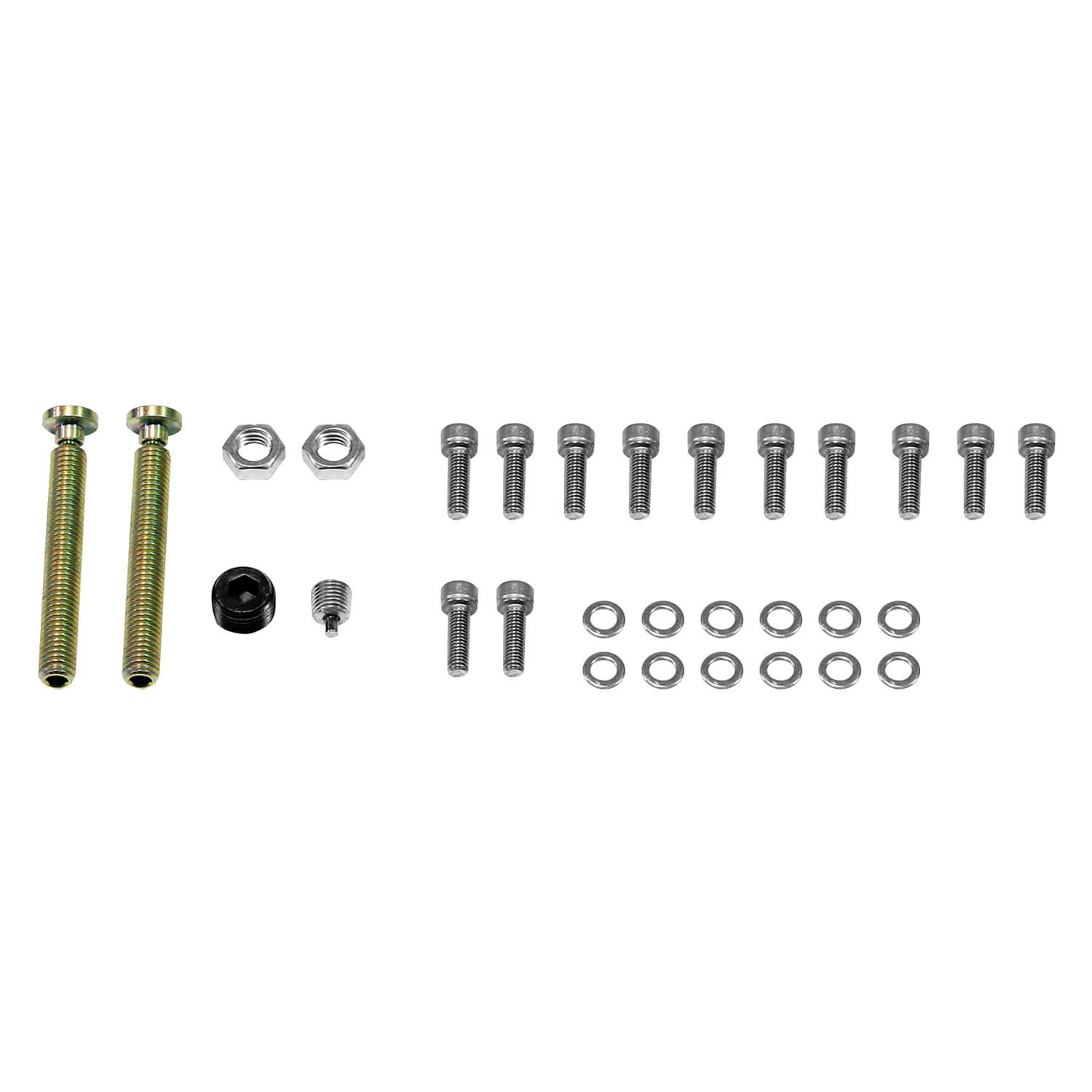

Includes

Cover
Fill Plug
Drain Plug
Bolts
Washers
Load Bolts
Nuts
Instruction

Features

Load Bolts for Additional Support for Bearing Caps
Magnetic Drain Plug for Easy Servicing
A356.0-T6 Aluminum Construction
MIL-Spec Black Anodized Finish
Lifetime Limited Warranty
Additional Fluid Capacity
Machined B&M Logo

Product Details

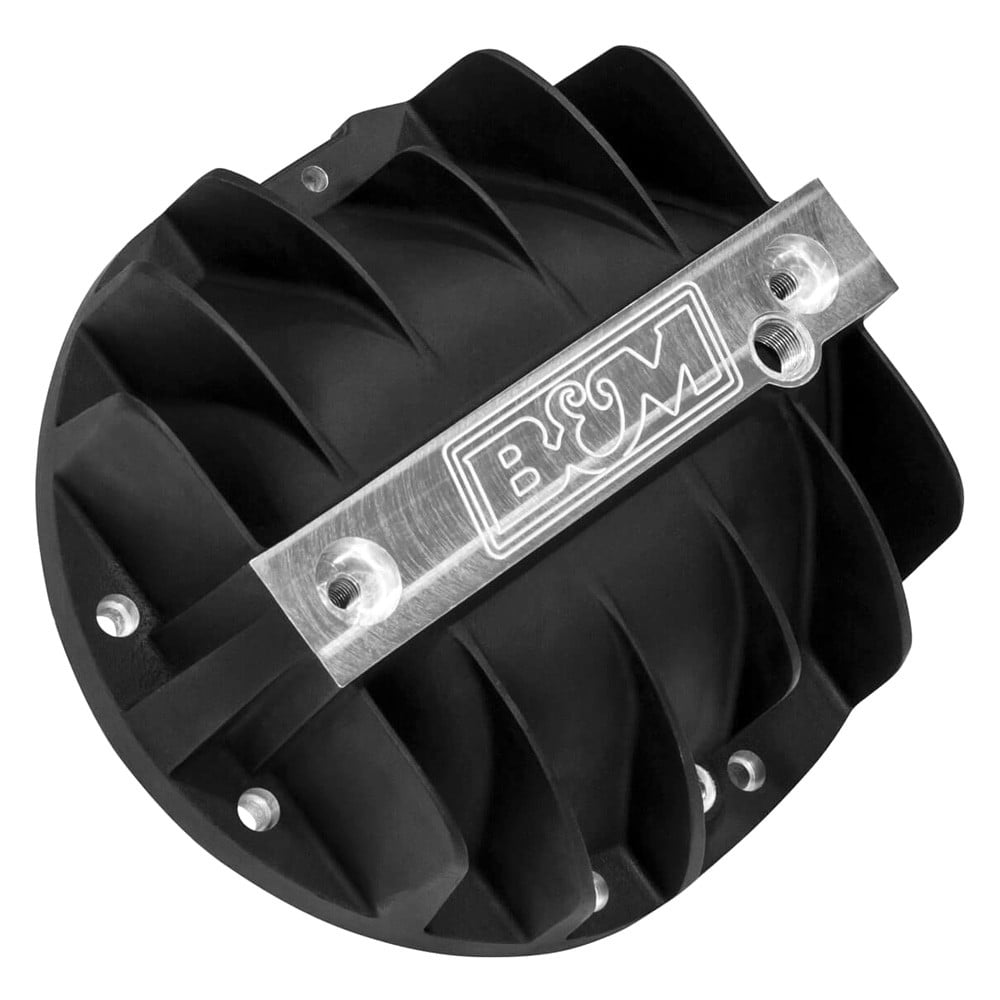

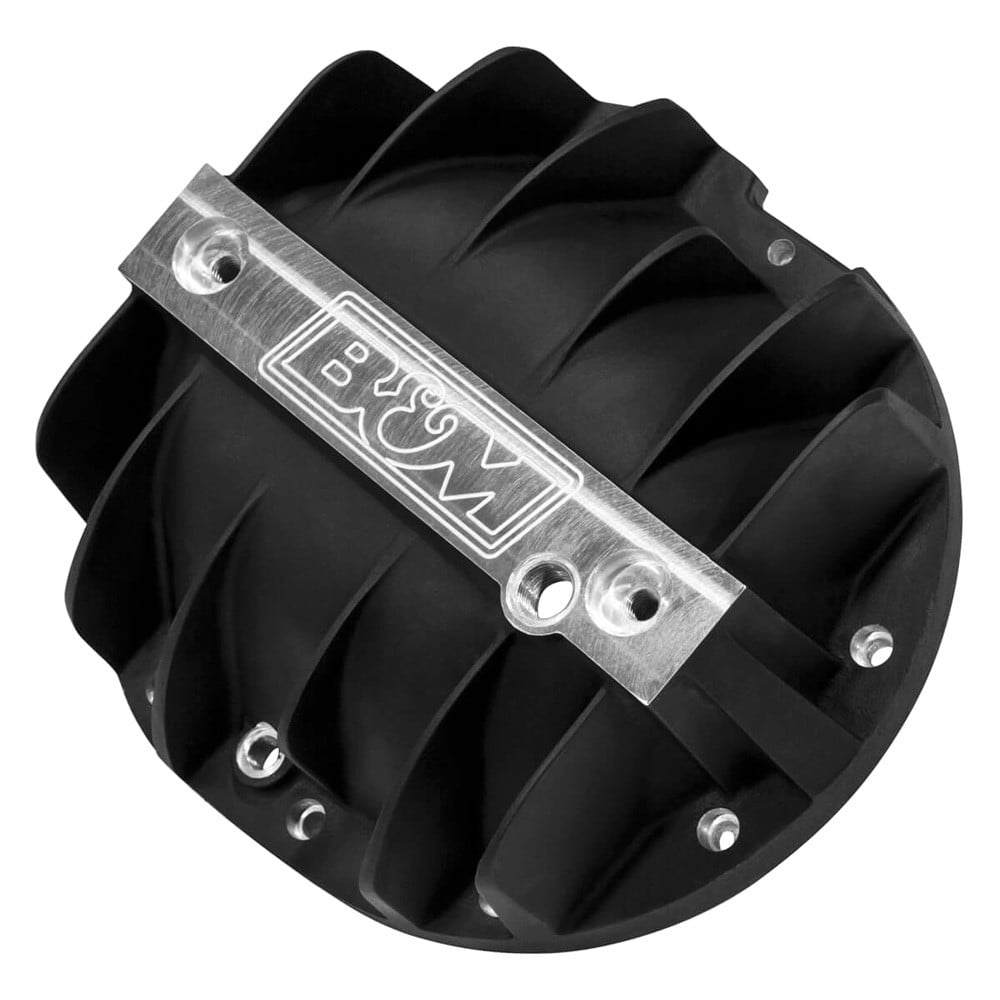

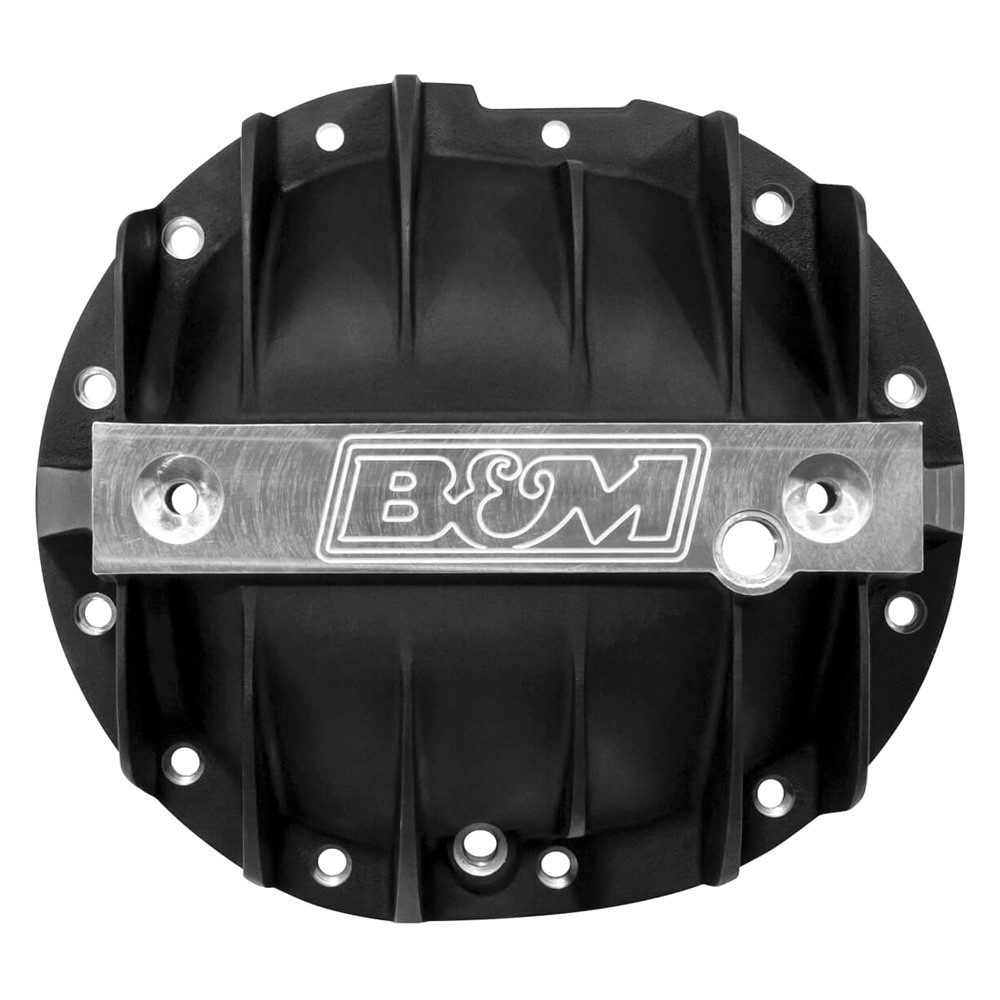

Rear Differential Cover by B&M®. Finish: Black Anodized. Material: A356.0-T6 Aluminum. B&M Cast Aluminum Differential Covers are designed to strengthen the differential by preventing case distortion and ring gear & bearing cap deflection. Constructed of A356.0-T6 aluminum, these rugged covers significantly increase the fluid capacity and dissipate heat much faster than the stock factory unit to prolong the life of your ring and pinion gears. Additional features include an engraved B&M logo, drain and fill port locations, a magnetic drain plug for catching ferrous metal particles, and complete hardware and installation instructions.
