Vehicle Fitment

Information is not available

Specifications

Application	Universal
Automotive Item Grade	High Performance
Backup Light Switch	No
Button	No
Cable End (Shifter)	Single Eylet
Cable End (Transmission)	10-32 Threaded
Color	Black
Emission Code	5
Finish	Smooth, Textured
Grade Type	Performance
Housing Mount Hole Quantity	4
Indicator Markings	Yes
Item Grade	High Performance
Material	304SS, Aluminum, Nylon
Overall Dimension	9.10Lx 9.50H x 2.60W
Reverse Lockout/Safety Lock	No
Rod Diameter	0.5"
Rod Length	4.75"
Shift Pattern	Forward
Shifter Knob Color	Black
Shifter Knob Included	Yes
Shifter Knob Material	PBT/ABS
Thread Size	1/2-20
Transmission Speeds	3, 4
Transmission Type	Chrysler A727, A518, A904, A500 and Ford C4, C5, C6
Universal Or Specific Fit	Specific
With Overdrive Switch	No
With Safety Lock Button	No

Includes

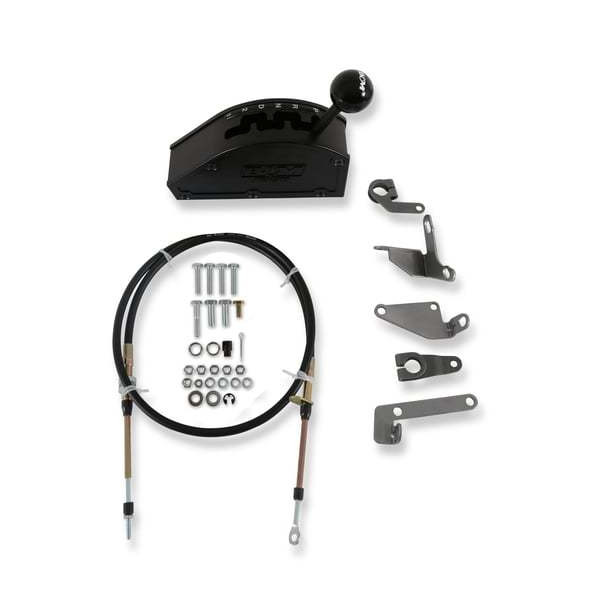

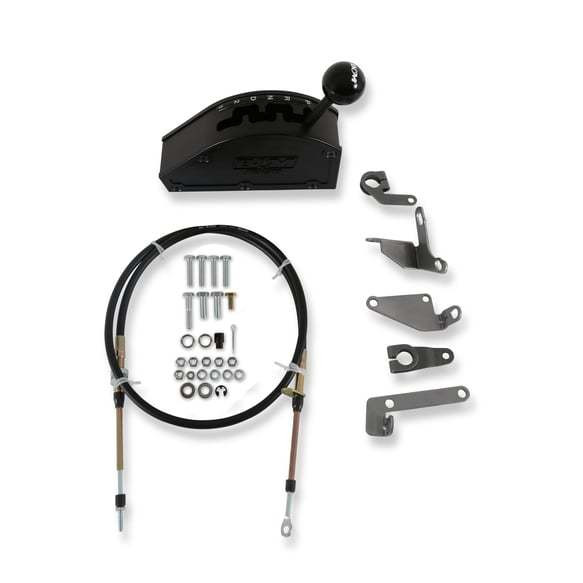

Shifter Assembly, Cable, Hardware and Instructions

Features

Heavy 10-gauge 304 Stainless Steel Shifter Base Provides Ultimate Strength and Stability
High-Impact Injection Molded Nylon Side Covers are Built for Abuse
Includes 5-ft Super Duty Race Shift Cable
304 Stainless Steel External Gate Plate Provides Durability and Short Positive Gated Shifts
Rugged Construction and Durable Black Oxide Coating Provide Low Maintenance
Rear-Exit Cable Model
Forward Shift Pattern
Fits wide range of Chrysler and Ford Transmissions (some require selector lever kits)

Product Details

Pro Gate™ Automatic Transmission Shift Lever Assembly by B&M®. B&M Pro Gate shifters are externally gated race shifters. The compact and lightweight design features a 10-gauge black oxide-coated 304 stainless steel base with a heavy-duty 303 stainless steel shift pin for longevity and bullet-proof performance. This model is ideal for use on 1966+ Chrysler, 1972+ AMC, and Ford C4, C5, and C6 transmissions. It will also work with Ford AOD, AODE, 4R70W, E40D, and 4R100s but requires the use of selector lever kits (sold separately). The 1018 steel shift stick includes a black B&M logo shift knob for shifting duties while the external gate plate is constructed from black oxide-coated 11-gauge 304 stainless steel for durability. Other features include thick injection-molded nylon side covers featuring a knurled texture with the B&M Pro Gate logo on both sides. The covers are removable for access to the virtually maintenance-free shifter sub-assembly and will not gum up with dirt affecting shift performance, which is ideal for Off-Road racing. The rear-exit cable design includes a black 5-ft Super Duty race shifter cable along with a cable bracket, shift lever, and all necessary hardware for a straightforward installation. Overall Dimensions - 9.1L x 2.6W x 9.5H. This shifter kit includes all cable brackets and selector levers required for use with the following automatic transmissions: Chrysler (1966+) and AMC (1972+) - A727 / A518 and A904 / A500. Ford - C4 / C5 / C6. The shifter can also be used with the following transmissions, with the applicable B&M bracket and selector lever kits (sold separately). Additional instructions for these transmissions are included with their install kits. Ford AOD - 40509 Kit; Ford AODE and 4R70W - 40507 Kit; Ford E40D and 4R100 - 40508 KitDesigned utilizing the latest technology, this product features premium quality and will perform better than advertised. Perfect for your vehicle and lifestyle, it is manufactured to meet or exceed stringent industry standards.

B&M has always been the choice for performance and dependability. Racers themselves, B&M’s founders identified the needs of local racers and street performance enthusiasts around the world, and developed products to fill as many needs as possible. All B&M products are extremely robust and will endure the test of time to give you the most for your money. Whether you have a damaged, broken, or lost part, we’ve got a comprehensive collection of replacements to restore the effective operation of your B&M shifter. All parts are designed to ensure a precise fit and they’re fairly easy to install. Besides, they are waiting for you at a price that everyone can afford!

B&M Authorized Dealer Catalog Warranty About us

Brand:

B&M

Part Number:

80905

Warranty

Lifetime Limited Warranty applies to all B&M shifters, differential covers and cast aluminum pans.

One-Year Limited Warranty applies to B&M coolers, shifter related accessories (knobs, handles, etc.), torque converters, flexplates, dipsticks, stamped steel pans and other transmission related accessories (except racing products).

90-Day Limited Warranty applies to B&M transmissions, launch control kits and all electrical components (switches, lights, solenoids).

B&M Racing & Performance (“B&M”) extends the following limited warranty to the original purchaser of its shifters, pans, coolers, transmissions, components and accessories (hereafter “products”).

B&M warrants the products mentioned above against defects in materials and workmanship for the period set forth below, when they are owned by the original purchaser and remain installed on the vehicle on which they were originally installed. This warranty is void if the product was not installed properly on the vehicle, was installed on a vehicle for which it was not designed, or was removed from the vehicle on which it was originally installed and reinstalled on another vehicle. This warranty shall not apply to normal wear (bushings, springs, etc.), cosmetic issues such as coatings and material discoloration, or any product that was installed on a racing vehicle (excluding shifters), installed contrary to B&M instructions, or altered, misused, repaired, damaged from an accident, collision, undercarriage road impact or debris, or willful or negligent act.

The warranty set forth herein for all B&M shifters, differential covers and cast aluminum pans extends for a period of the life of the original vehicle the product was installed on. The warranty set forth herein for B&M coolers, shifter related accessories (knobs, handles, etc.), torque converters, flexplates, dipsticks, stamped steel pans and other transmission related accessories (except racing products) extends for a period of one year from the date of original purchase and the original vehicle it was installed on. The warranty set forth herein for B&M transmissions, launch control kits and all electrical components (switches, lights, solenoids) extends for a period of 90 days from the date of original purchase and the original vehicle it was installed on.

B&M’s liability is expressly limited to the replacement of the product or refund of the purchase price as described herein. B&M shall have no liability for the cost of installation or removal of the defective product, the cost of labor or any additional parts required to complete the installation of the replacement product. In no event shall B&M be liable for any direct, indirect, special, incidental and/or consequential losses or damages, including but not limited to interruption of business or loss of business or loss of profit or damage to related components resulting from the use of or inability to use the product, or any breach of warranty or any defect in the product, even if B&M shall have been advised of the possibility of such potential losses or damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights. You may also have other rights which may vary from state to state.

The warranties set forth herein are exclusive and unless otherwise required by applicable law, no other warranties are made by B&M or are authorized to be made with respect to the product.

Magnuson-Moss Warranty Act:

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)) Learn More

Reviews

(2)

Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.

1-2 of 2 Reviews

Sort by

5 of 5

Z-Gate Shifter

Just wanted to make a quick review to say I am really impressed with this shifter, the installation was pretty simple with very descriptive instructions. It's perfect if your want to upgrade and not spend a lot, I would probably spend more if I was building a race car but I just wanted to upgrade to a floor shifter for the street.

Posted by Evangelina (Anchorage, AK) / August 13, 20121996 GMC Jimmy

4 of 5

B&M Shifter

Looks well built. Improved the shifting on the Jeep 100%. I would recommend this shifter over the stock one anytime.

B&M® - Precision Sport™ Manual Transmission Shifter

Posted by Frank (Amarillo, TX) / January 19, 20192011 Jeep Wrangler

Questions and Answers

(0)

If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

B&M® 80905 - Pro Gate™ Automatic Transmission Shift Lever Assembly
