Vehicle Fitment

Chevy

Pontiac

Specifications

Brand	B&M®
Material	Steel
# of Teeth	168
Application	Chevrolet
Balance	Internal
California Proposition 65 Chemical Name	Cadmium and cadmium compounds
California Proposition 65 Required	Yes
Converter Bolt Pattern	10.75 in., 11.06 in.
Crankshaft Bolt Hole Count	6
Dual Pattern	Yes
Emission Code	5
Engine	GM Gen III/IV (LS)
Grade Type	Performance
IHRA Legal	Yes
Mounting Hole Quantity	6
NHRA Legal	Yes
Outside Diameter (in)	14.13
SFI Approved	Yes
SFI Certification	29.1
SFI Certification Sticker	Included
Tooth Quantity	168
Weight (lb)	6

Features

10.75, 11.06 Inch Bolt Pattern Convertor Mount
Includes SFI 29.1 Certification Sticker
Zinc Plated Chromate Finish
168 Tooth Ring Gear
B&M Quality

Product Details

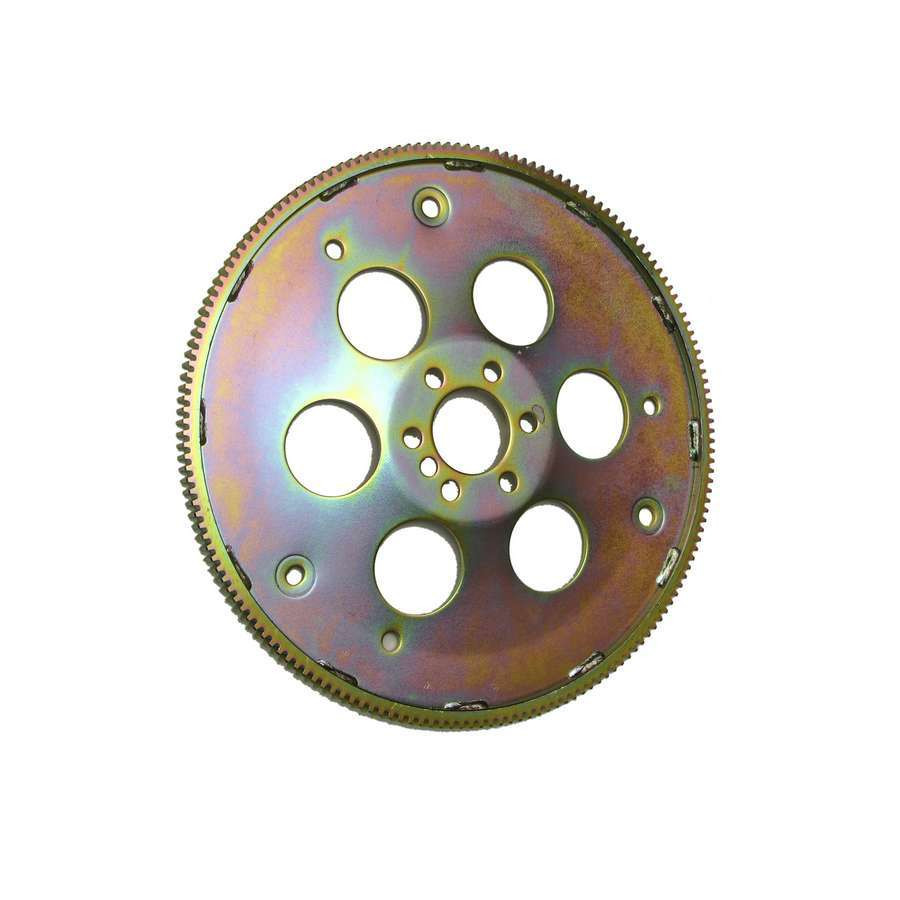

Flexplate (20340) by B&M®. Material: Steel. With automatic equipped cars, it can be easy to forget that all of your engine’s torque is transferred through a flexplate before reaching the torque converter and transmission. That’s a lot of force! If you have a performance vehicle fitted with an automatic transmission, one of the most prudent modifications you can make is installing a quality flexplate. Features include high tensile strength steel to resist elongation and cracking. Engines with 50.0 ounce imbalance. Added corrosion resistance and durability.

Racers themselves, B&M's founders identified the needs of local racers and street performance enthusiasts, and developed products to fill as many needs as possible. B&M will help you complete your project with accessories and parts designed and carefully selected by the experts at B&M. In their online store there's a comprehensive collection of miscellaneous B&M products that are just indispensable in every respect. All parts are made with both quality and reliability in mind, and what's more, they are waiting for you at a price that everyone can afford!

B&M Authorized Dealer Catalog Warranty About us

Brand:

B&M

Part Number:

20340

UPC:

019695203405

Warranty

Lifetime Limited Warranty applies to all B&M shifters, differential covers and cast aluminum pans.

One-Year Limited Warranty applies to B&M coolers, shifter related accessories (knobs, handles, etc.), torque converters, flexplates, dipsticks, stamped steel pans and other transmission related accessories (except racing products).

90-Day Limited Warranty applies to B&M transmissions, launch control kits and all electrical components (switches, lights, solenoids).

B&M Racing & Performance (“B&M”) extends the following limited warranty to the original purchaser of its shifters, pans, coolers, transmissions, components and accessories (hereafter “products”).

B&M warrants the products mentioned above against defects in materials and workmanship for the period set forth below, when they are owned by the original purchaser and remain installed on the vehicle on which they were originally installed. This warranty is void if the product was not installed properly on the vehicle, was installed on a vehicle for which it was not designed, or was removed from the vehicle on which it was originally installed and reinstalled on another vehicle. This warranty shall not apply to normal wear (bushings, springs, etc.), cosmetic issues such as coatings and material discoloration, or any product that was installed on a racing vehicle (excluding shifters), installed contrary to B&M instructions, or altered, misused, repaired, damaged from an accident, collision, undercarriage road impact or debris, or willful or negligent act.

The warranty set forth herein for all B&M shifters, differential covers and cast aluminum pans extends for a period of the life of the original vehicle the product was installed on. The warranty set forth herein for B&M coolers, shifter related accessories (knobs, handles, etc.), torque converters, flexplates, dipsticks, stamped steel pans and other transmission related accessories (except racing products) extends for a period of one year from the date of original purchase and the original vehicle it was installed on. The warranty set forth herein for B&M transmissions, launch control kits and all electrical components (switches, lights, solenoids) extends for a period of 90 days from the date of original purchase and the original vehicle it was installed on.

B&M’s liability is expressly limited to the replacement of the product or refund of the purchase price as described herein. B&M shall have no liability for the cost of installation or removal of the defective product, the cost of labor or any additional parts required to complete the installation of the replacement product. In no event shall B&M be liable for any direct, indirect, special, incidental and/or consequential losses or damages, including but not limited to interruption of business or loss of business or loss of profit or damage to related components resulting from the use of or inability to use the product, or any breach of warranty or any defect in the product, even if B&M shall have been advised of the possibility of such potential losses or damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights. You may also have other rights which may vary from state to state.

The warranties set forth herein are exclusive and unless otherwise required by applicable law, no other warranties are made by B&M or are authorized to be made with respect to the product.

Magnuson-Moss Warranty Act:

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)) Learn More
