Bilstein® 41-326701 - 1.6"-2.5" B8 8112 ZoneControl CR Front Driver Side Coilover

7 reviews|Item # mpn5192185601
Vehicle Specific
    Select Vehicle
    Authorized Dealer
    $1,160.00
    In Stock (10) - Ships Tomorrow 06.11.26
    See similar products
    Have a Question? Ask a Specialist
    888-577-6964Live Chat

    Vehicle Fitment

    Ford

    Specifications

    Front Lift Height
    1.6"-2.5"
    Coil Spring Finish
    Black
    Adjustable Mounting Bracket Included
    No
    Adjustable Valving
    No
    Body Diameter (in.)
    2.360
    Coilover Shock Type
    Non-adjustable
    Coilover Springs Included
    Yes
    Gas Charged
    Yes

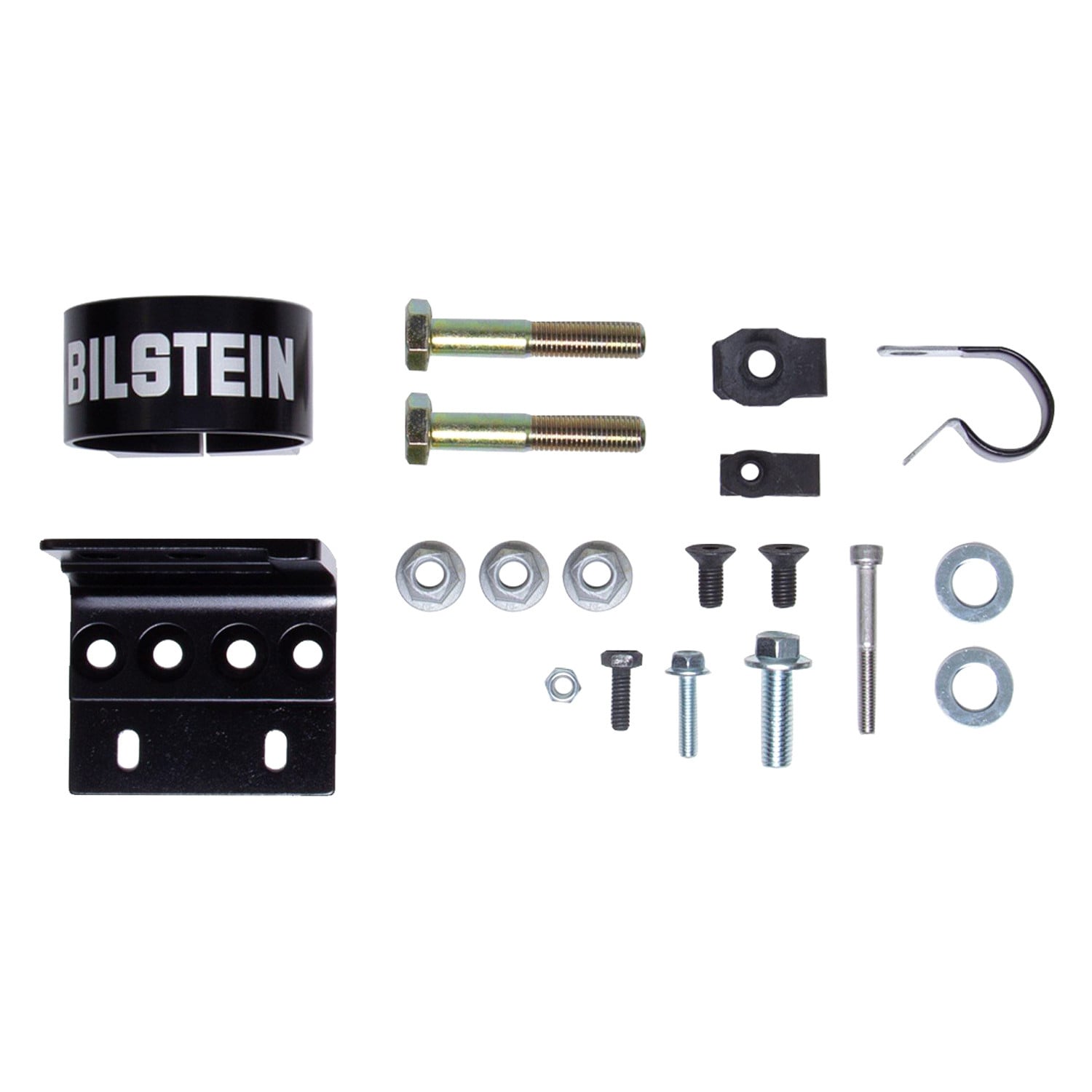

    Hardware Included
    Yes
    Internal Design
    Monotube
    Quantity
    Sold individually.
    Spring Finish
    Black
    Suspension Height Adjustment
    0.7-2.7 in. raised front
    Shock Absorber Internal Design
    Monotube
    Shock Absorber Type
    Gas Charged
    Shock Absorber Adjustment Type
    Double Adjustment
    Shock Absorber Rebound Adjustment
    2 Clicks
    Shock Absorber Compression Adjustment
    3 Clicks
    Shock Absorber Levels of Damping
    6 Levels
    Front Shock Absorber Damping Force Adjustment
    Yes
    Front Shock Absorber Height Adjustment Type
    Threaded Spacer
    Shock Absorber Compressed Height
    18.45"
    Shock Absorber Extended Height
    23.22"
    Shock Absorber Reservoir
    With External Reservoir
    Shock Absorber Reservoir O.D.
    2.4" (60 mm)
    Shock Absorber Lower Mount Type
    Crossbar
    Shock Absorber Upper Mount Type
    Stock
    Shock Absorber Finish
    Zinc Plated
    Finish
    Black
    Material
    Steel

    Features

    • ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
    • Compression (C): Provides superior bottom out control through a 2-stage, telescoping internal compression stop. This feature eliminates the need for an external hydraulic bump stop
    • Rebound (R): Secondary rebound stop will dissipate spring energy and stabilize the suspension directly following a large compression event. The internal rebound stop will also eliminate harsh top-out events and the need for an external limit strap
    • Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
    • Adjustable threaded spring seat allows for fine-tuned ride height. Adjustable range 0.6-2.5in
    • 60mm remote reservoir for increased oil capacity and cooling
    • Vehicle specific design and tuning provides the ultimate driving experience. Aerospace quality components are vehicle specific to optimize wheel travel and clearance
    • High quality chrome 5/8” heim joint mounting with rubber sealed misalignment spacers offer the most durable, load bearing mount solution
    • Aluminum components with zinc plated shock bodies will resist harsh off-road elements
    • Coilover supplied as a complete module for easy installation. Spring is pre-loaded to the factory recommended ride height
    • Factory rebuildable

    Product Details

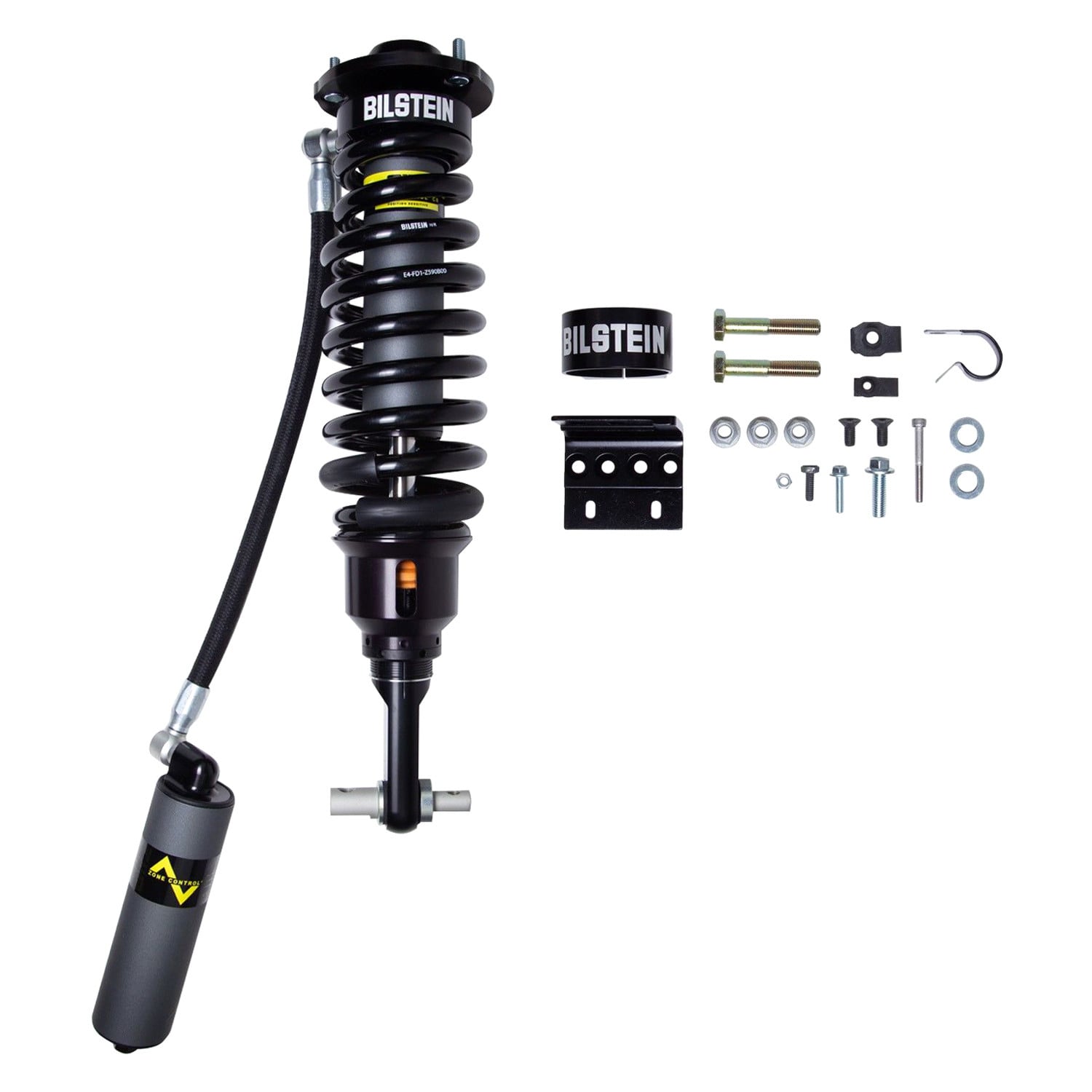

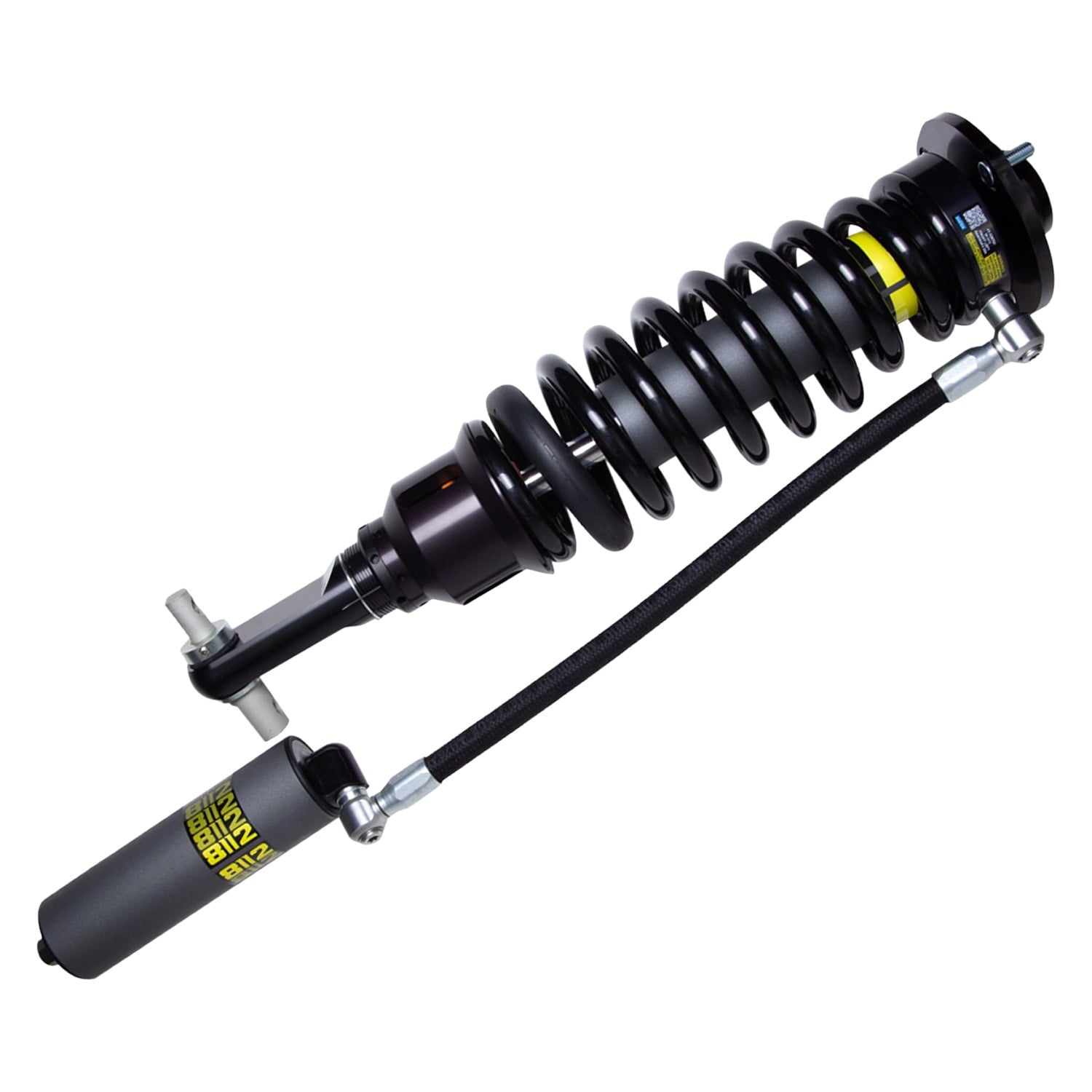

    B8 8112 ZoneControl CR Front Driver Side Coilover with 1.6"-2.5" Front Lift Height (41-326701) by Bilstein®. Quantity: 1 per Pack. BILSTEIN B8 8112 (ZoneControl CR) is a direct fit coilover kit designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The damper is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl CR) position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

    Bilstein® - Important!Bilstein® - GuideBilstein® - Product FeaturesBilstein® - WarrantyBilstein® - BenefitsBilstein® - CatalogsBilstein Authorized DealerProduct linesTechnologyAbout us
    Brand:
    Bilstein
    Part Number:
    41-326701
    Alternate MPN:
    41326701, BIL41-326701
