Baja Designs® 49-0005 - Squadron Pro™ Squadron Pro™ 3" 40W Square Wide Cornering Beam LED Light LED Light

8 reviews|Item # mpn3021983210
Authorized Dealer
$214.95
DISCONTINUED - Item No Longer Available
See similar products
Have a Question? Ask a Specialist
800-505-3274Live Chat

Vehicle Fitment

This part is universal

Specifications

Size
3"
Watts (per kit)
40W
LEDs/bulbs quantity
4-LED
Beam pattern
wide cornering beam
Bulb type
LED
Series
Squadron Pro™
Housing color
black
Light color
white
Material
aircraft grade aluminum with mil-spec hard anodize
Shape
square
Voltage
9-36V
Amperage
2.9A
Lumens
4900
Color temperature
5000K
Dimension

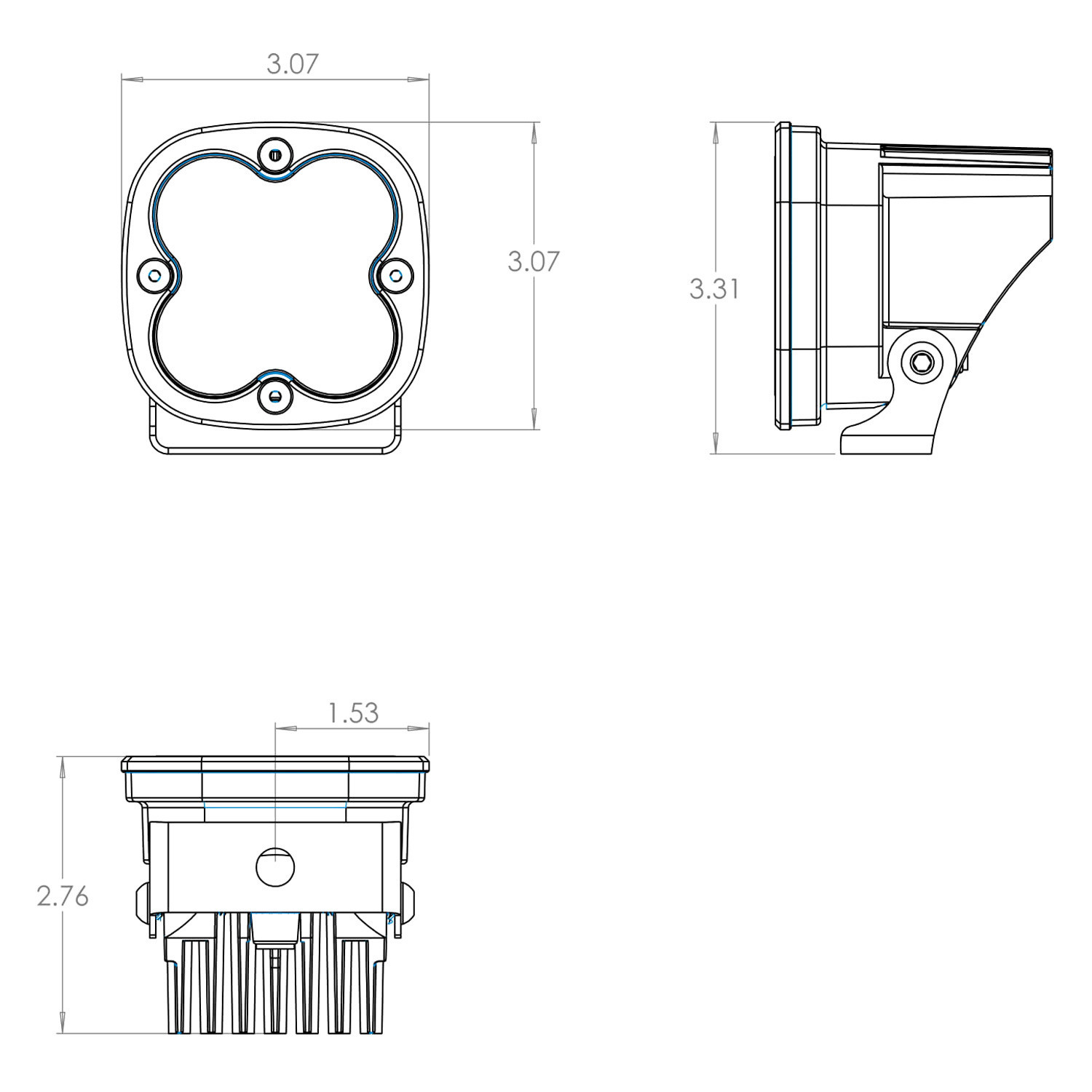

3.07"x2.77"x3.07"
Weight
12 ounces
LED life expectancy
49,930 hours
Front lens
hard-coated polycarbonate
Hardware & bracket material
stainless steel
Additional Info
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-in overvoltage protection
IP69K (waterproof, submersible to 9ft)
IK10 compliant (Mechanical Impact Testing)

Includes

  • (1) Squadron Pro™ light
  • Mounting bracket

Features

  • Top-grade Cree LEDs to provide superior illumination for increased visibility
  • 5000K daylight to guarantee less driver fatigue
  • Hard-anodized and powder coated cast aluminum housing for unbeatable durability
  • Hard-coated polycarbonate front lens to ensure maximum protection
  • Waterproof, rainproof and submersible
  • Designed to allow for easy installation
  • Backed by a limited lifetime warranty

Product Details

Universal Squadron Pro™ Squadron Pro™ 3" 40W Square Wide Cornering Beam LED Light LED Light (49-0005) by Baja Designs®. 1 Piece, 4-LED. Black housing, white light. 9-36V. 2.9A. Lumens: 4900. 5000K. Aircraft grade aluminum with mil-spec hard anodize, with hard coated polycarbonate lens. Illuminate the darkest off-road trails with premium Squadron Pro LED lights! Although compact in size, they will literally blind you with brightness! With each light delivering 4,900 Lumens at 40 Watts, these lights are sure to truly annihilate the night, giving you a clear view of what’s ahead. They come equipped with a sleek black gloss aluminum housing and high-grade LEDs to outshine the competition in both appearance and performance.

If you’re looking for auxiliary lights that combine a compact design with exceptional brightness, then top-of-the-line Squadron Pro LED lights are right up your alley. Equipped with high-grade LEDs, they provide incredible 4,900 Lumens per light. Extremely efficient, these LEDs not only emit brighter and more intense light than their incandescent counterparts, but also consume very little power and are proven to last for about 50,000 hours. Designed to withstand the toughest off-road conditions, Squadron Pro LED lights have a hard-coated polycarbonate lens and tough cast aluminum housing. Highly resistant to impact and the elements, they are guaranteed to perform for many years to come.

This light features a wide cornering pattern that was specifically designed for cornering, dust and/or fog conditions. The wide driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting.
