Baer® 4301461B - SS4 Plus Drilled and Slotted Front Brake System

4 reviews|Item # mpn5180451757
Vehicle Specific
    Select Vehicle
    Notes:
    • Wheel template is required to be used before ordering.
    Authorized Dealer
    $1,949.95
    In Stock (20) - Ships in 24 to 48 hrs
    Have a Question? Ask a Specialist
    888-577-6964Live Chat

    Vehicle Fitment

    Buick
    Chevy
    Oldsmobile
    Pontiac

    Specifications

    Bolt Pattern
    5 x 4.75"
    Caliper Color
    Black
    Caliper Construction
    Fixed
    Caliper Series
    S4
    Caliper Type
    4-Piston
    Minimum Wheel Diameter Required
    381mm (15")
    Driving Style
    Performance / Racing, Track Only, Hauling & Towing
    Hub Shape
    W/O Hub
    Outside Diameter
    279.4mm (11")
    Rotor Construction
    2-Piece
    Rotor Material
    Cast Iron
    Rotor Style
    Drilled & Slotted
    Rotor Type
    Vented
    Rotor Finish
    Zinc Plated
    Series
    SS4+
    Spindle Options
    With Stock Spindles
    Front Rotor Outside Diameter (mm)
    279.40mm
    Front Rotor Outside Diameter (in.)
    11.00 in.
    Front Rotor Thickness (in.)
    1.10 in.
    Brake Rotor Bolt Pattern (in.)
    5 x 4.75 in.
    Brake Rotor Bolt Pattern (mm)
    5 x 120.65mm
    Friction Material Name
    Ceramic
    Front Caliper Color
    Black
    Front Caliper Material
    Forged billet aluminum
    Front Caliper Piston Quantity
    Four
    Front Rotor Construction
    Vented
    Front Rotor Style
    Cross-drilled/Slotted surface
    Minimum Recommended Wheel Diameter (in.)
    15 in.
    Quantity
    Sold as a kit.
    Spindle Type
    Stock height
    Position
    Front
    Front Spindles Included
    Yes
    Master Cylinder Included
    No
    Front Rotor Included
    Yes
    Rear Rotor Included
    No
    Remanufactured
    No
    Front Caliper Included
    Yes
    Rear Caliper Included
    No
    Parking Brake Provision
    No
    Brake Booster Included
    No
    Brake Hoses Included
    Yes
    Brake Pads Included
    Yes

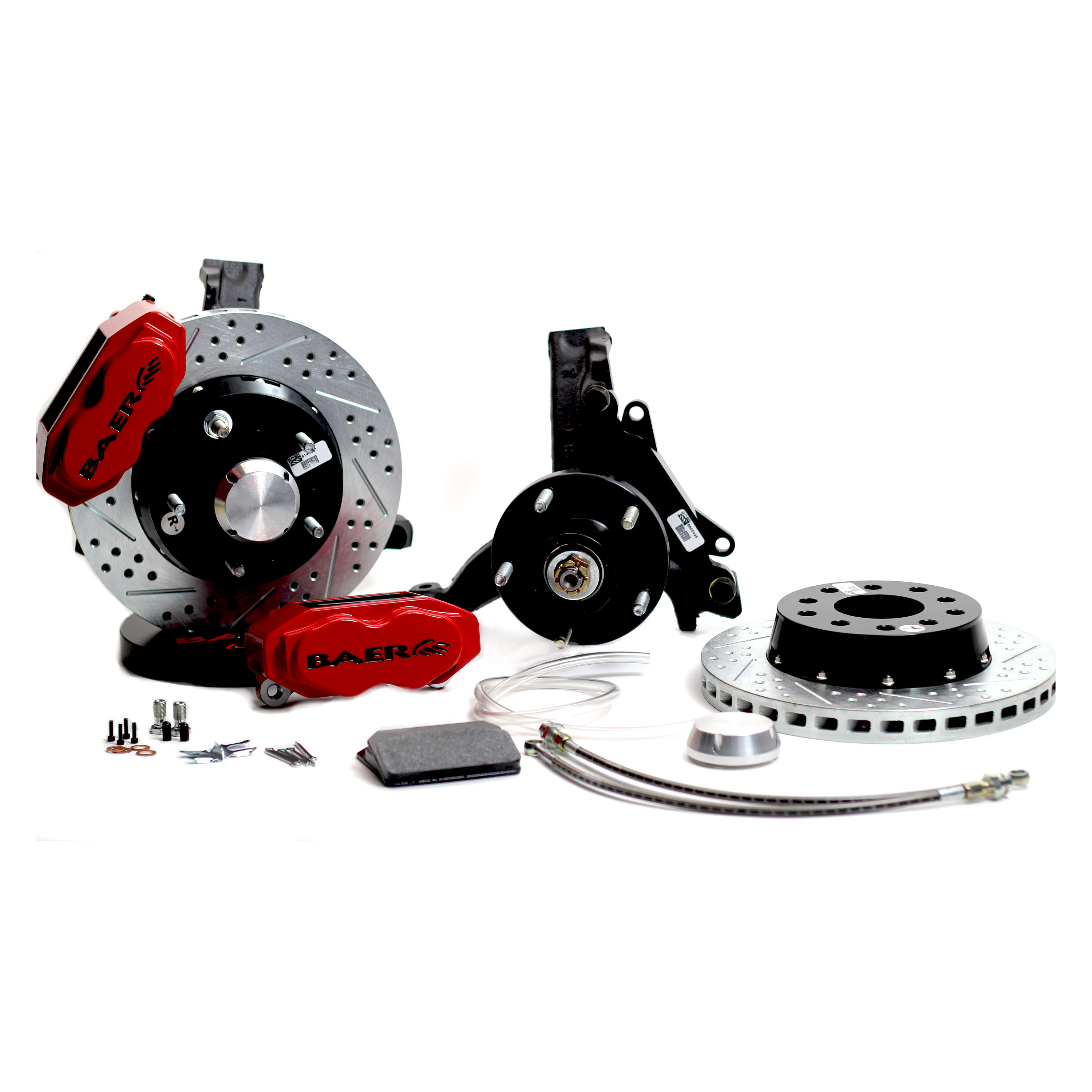

    Includes

    • Calipers
    • Rotor and Hat assemblies
    • Billet aluminum hubs with premium bearings
    • Billet dust caps
    • Modified stock spindles
    • Brackets
    • Stainless braided brake hoses and all mounting hardware

    Features

    • Caliper housings feature a durable powder coat finish that is resistant to chips, grime, and brake dust
    • Calipers feature 4 pistons each for excellent braking performance
    • Calipers are a 1-piece design forged from a solid block of aluminum
    • Calipers come pre-loaded with ceramic brake pads that offer superior heat disbursement, longer life, quieter operation, and lower dust levels
    • Calipers are radially mounted to maintain greater stiffness under load - ensuring pads stay in alignment with the rotor and make a more even, superior level of contact
    • Calipers feature stainless steel pistons, caliper attachment brackets, and vibration dampening springs to ensure freedom from corrosion deterioration
    • Pistons within each caliper are staggered in size to minimize pad taper and uneven pad wear
    • Brake pads feature racing grade backing plates that more effectively prevent heat buildup that causes brake fluid boiling as well as damage to caliper seals and dust boots
    • Rotors are dipped in zinc to resist corrosion on non-contact areas
    • 90 days Warranty against Manufacturer's defects
    • Proudly manufactured in the United States

    Product Details

    SS4 Plus Drilled and Slotted Front Brake System (4301461B) by Baer®. Spindle Option: with Stock Spindles. Quantity: 1 Pair. This high-performance brake kit gives you lightweight rotors. Monoblock aluminum 4-piston calipers and ceramic brake pads provide superior braking performance needed during aggressive street driving. Calipers are finished with durable powder coat in a choice of colors for protection against grime and and chips while internal construction of aluminum and stainless steel ensures long-lasting performance uncompromised by corrosion.

    Installation

    Benefits:

    • Drilled holes and Slots create an escape route for debris, dust, gases, and water
    • Slots clean and de-glaze pad surface for optimum pad coefficient of friction
    • Drilled rotors improve the appearance of your wheels and provide reduced rotor weight
    • 2-Piece rotors offer great weight savings and provide rapid heat dissipation compared to 1-piece rotors
    • Vented type of rotors offer much faster heat dissipation
    • Multi-piston calipers provide clamping force on both sides of the rotor at the same time and uniformly transfer braking force to the brake pads
    • Caliper pistons are hollow to save weight
    • Aluminum caliper body allows for exceptional light weight (up to 40% of weight savings) and ensures superior corrosion resistance
    • Caliper heat-resistant coating prevent cracking and fading
    • Fixed calipers create friction from the brake pads on both sides of the rotor at minimum time interval

    Baer SS4 Plus brake kits offer virtually all the features and benefits of their Extreme Plus and Pro Plus kits in a smaller 11-inch rotor size which can fit inside OEM 15-inch wheels. Now you can upgrade your vehicle's braking performance without spending money on larger rims! Designed for aggressive street driving, this kit starts with 4-piston front calipers - an upgrade from the typical two pistons found on most modern vehicles. Baer has tested and refined the SS4+ calipers relentlessly in order to achieve the perfect balance of performance and control. Engineers determined radially mounted calipers maintain greater stiffness under load, and SS4+ ones are built that way to ensure pads stay in proper alignment with the rotor. Perfectly balanced performance means using superior materials to ensure components continue to work as well tomorrow as they do today by staying free from corrosion. Stainless steel is used to craft the caliper pistons, caliper attachment brackets, and vibration dampening springs. Pistons within each caliper are staggered in size to minimize pad taper and uneven pad wear, so you'll get more usable brake life out of your pads as well. Finally, aluminum caliper housings feature a durable powder coat finish that's extremely resistant to heat, grime, and rock chips.

    Baer matches the high level of caliper performance with ceramic brake pads that come pre-loaded inside each caliper. Used in championship racing where 200 mile-per-hour speeds quickly generate blistering heat, ceramic brake pads offer the natural ability to stay cool under the most severe conditions. When ceramic brake pads are combined with the slotted and perforated design of the rotors, heat buildup is reduced so extensively that brake fade rarely occurs - because brake fluid stays cool enough not to reach boiling temperature. Ceramic brake pads are far quieter due to their higher resonant frequency undetectable by human ears, so squealing is not an issue. And finally, ceramic compounds last longer and produce finer, less obtrusive dust that does not stick to most wheel surfaces. Ceramic brake pads also feature racing-grade backing plates that more effectively prevent heat buildup. You don't need a high-performance vehicle to enjoy the benefits these brake kits offer, and you might find your new car dealer charging a similar price while giving you less. We invite you to contact our knowledgeable specialists seven days a week for help with any questions you have on Baer brake kits at 800-505-3274.
