Baer® 4301356B - Pro Plus Drilled and Slotted Front Brake System

3 reviews|Item # mpn5180451779
Missing Fitment Information
Fitment notes:
  • Fitment data unavailable. Compatibility is not guaranteed. Please purchase by part number only.
Authorized Dealer
$2,556.95
In Stock (20) - Ships in 24 to 48 hrs
Have a Question? Ask a Specialist
888-577-6964Live Chat

Vehicle Fitment

Information is not available

Specifications

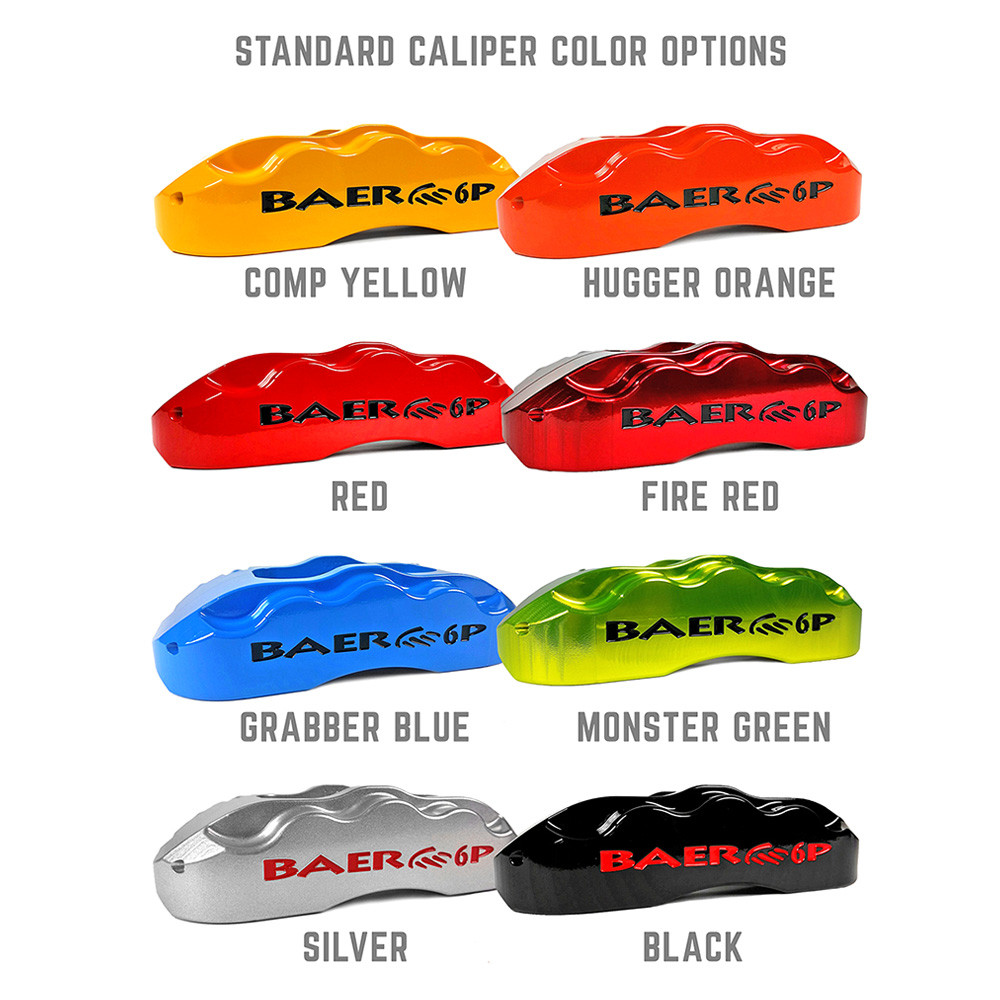

Caliper Color
Black
Caliper Construction
Fixed
Caliper Series
6P
Caliper Type
6-Piston
Minimum Wheel Diameter Required
457.2mm (18")
Driving Style
Performance / Racing, Track Only, Hauling & Towing
Hub Shape
W/O Hub
Outside Diameter
356mm (14")
Rotor Construction
2-Piece
Rotor Material
Cast Iron
Rotor Style
Drilled & Slotted
Rotor Type
Vented
Rotor Finish
Zinc Plated
Series
Pro+
Front Rotor Outside Diameter (mm)
355.60mm
Front Rotor Outside Diameter (in.)
14.00 in.

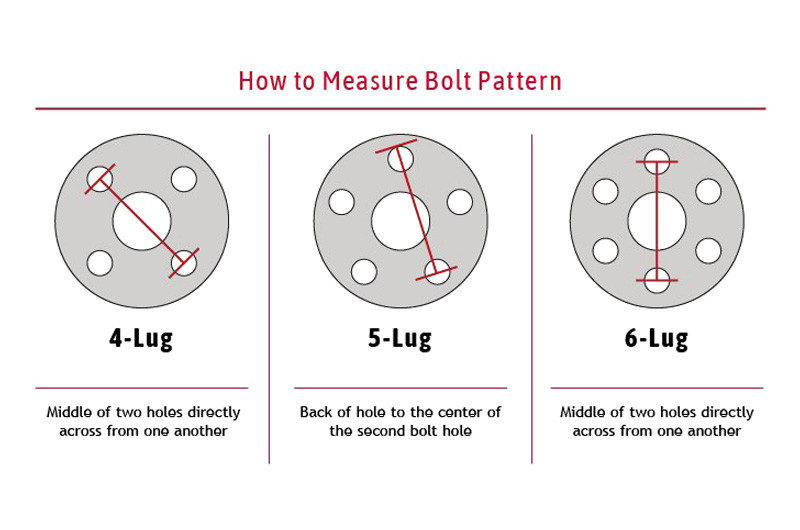

Brake Rotor Bolt Pattern (in.)
5 x 4.75 in.
Brake Rotor Bolt Pattern (mm)
5 x 120.65mm
Friction Material Name
Ceramic
Front Caliper Color
Black
Front Caliper Material
Forged billet aluminum
Front Caliper Piston Quantity
Six
Front Rotor Construction
Vented
Front Rotor Style
Cross-drilled/Slotted surface
Minimum Recommended Wheel Diameter (in.)
18 in.
Quantity
Sold as a kit.
Position
Front
Front Spindles Included
No
Master Cylinder Included
No
Front Rotor Included
Yes
Rear Rotor Included
No
Remanufactured
No
Front Caliper Included
Yes
Rear Caliper Included
No
Parking Brake Provision
No
Brake Booster Included
No
Brake Hoses Included
No
Brake Pads Included
Yes

Features

  • Front calipers are a 1-piece design forged from a solid block of aluminum
  • Front calipers feature the only street application with a 6-piston design for better braking performance
  • Calipers come pre-loaded with ceramic brake pads that offer superior heat disbursement, longer life, quieter operation, and lower dust levels
  • Calipers are radially mounted to maintain greater stiffness under load - ensuring pads stay in alignment with the rotor and make a more even, superior level of contact
  • Calipers feature stainless steel pistons, caliper attachment brackets, and vibration dampening springs to ensure freedom from corrosion deterioration
  • Pistons within each caliper are staggered in size to minimize pad taper and uneven pad wear
  • 2-piece rotor design with a 6061 T-6 billet aluminum hat bolted to the rotor friction ring with high grade NAS (Aircraft) hardware
  • Brake pads feature racing grade backing plates that more effectively prevent heat buildup that causes brake fluid boiling as well as damage to caliper seals and dust boots
  • 2-piece rotors are slotted and drilled for better venting of heat, water, brake dust, and gasses
  • 2-piece rotors feature an aluminum center section for weight savings
  • Rotors are dipped in zinc to resist corrosion on non-contact areas
  • 90 days Warranty against Manufacturer's defects
  • Proudly manufactured in the United States

Product Details

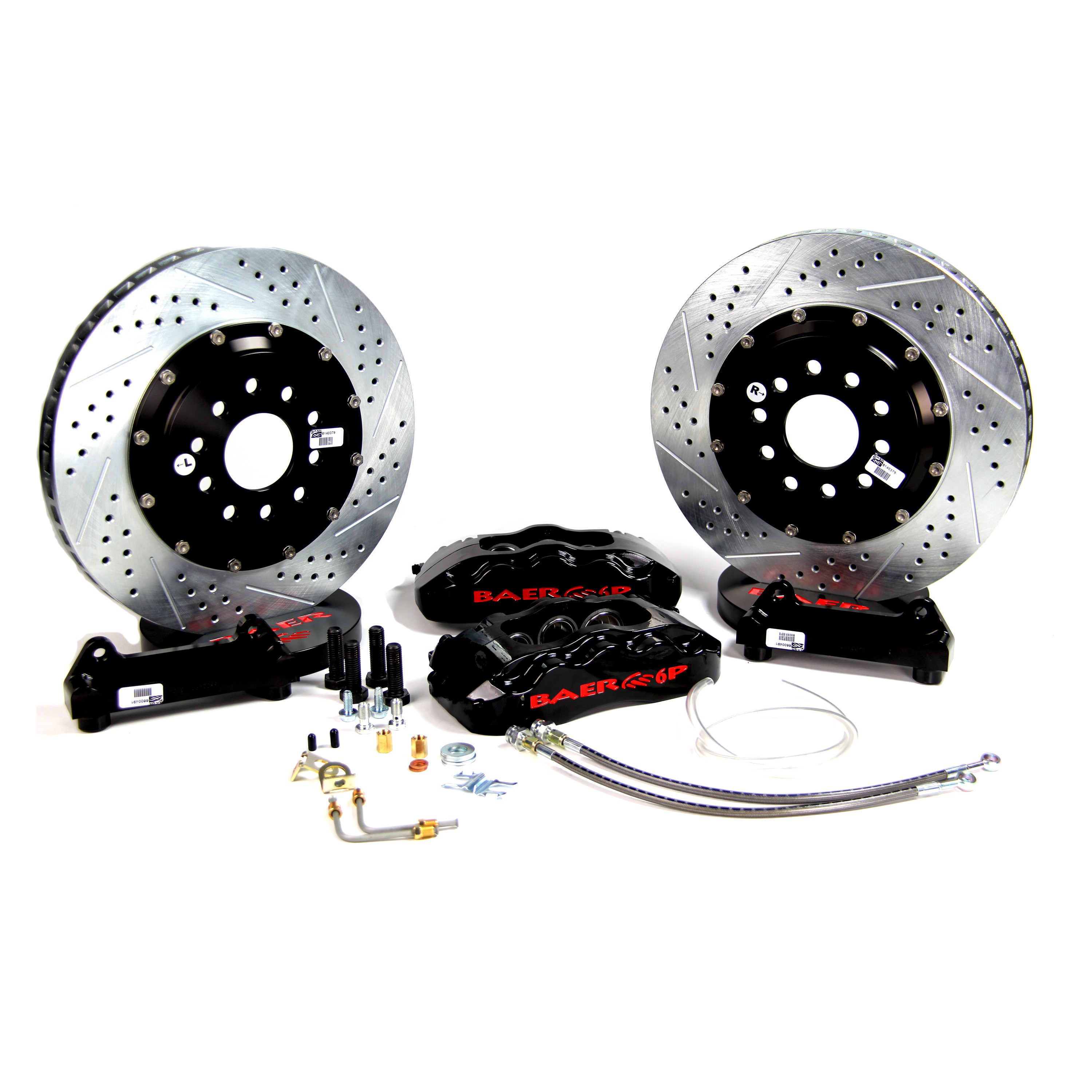

Pro Plus Drilled and Slotted Front Brake System by Baer®. Quantity: 1 Pair. The Pro Plus series contains all the features and benefits of the Extreme Plus kits for vehicles with less clearance room for brake components. The kit includes 6-piston front monoblock calipers finished in a protective ceramic powder coat that is extremely resistant to grime, brake dust, and chips. Also included are ceramic brake pads, lightweight two-piece rotors, stainless steel caliper hardware, and ceramic brake pads. All Pro Plus brake components are designed to provide optimum levels of progressive braking during aggressive street and track driving.

Installation

Benefits:

  • Drilled holes and Slots create an escape route for debris, dust, gases, and water
  • Slots clean and de-glaze pad surface for optimum pad coefficient of friction
  • Drilled rotors improve the appearance of your wheels and provide reduced rotor weight
  • 2-Piece rotors offer great weight savings and provide rapid heat dissipation compared to 1-piece rotors
  • Vented type of rotors offer much faster heat dissipation
  • Multi-piston calipers provide clamping force on both sides of the rotor at the same time and uniformly transfer braking force to the brake pads
  • Caliper pistons are hollow to save weight
  • Aluminum caliper body allows for exceptional light weight (up to 40% of weight savings) and ensures superior corrosion resistance
  • Fixed calipers create friction from the brake pads on both sides of the rotor at minimum time interval

Baer brakes offers a solution to the woes of underperforming factory brake parts with the Pro Plus Front Brake System. Designed as the ultimate street/track performance upgrade for vehicles that can fit 13-inch or 14-inch rotors, this kit starts with front calipers built with six pistons - a design virtually unmatched in the industry. It also includes 2-piece rotors that are cross-drilled and grooved for superior disbursement of heat, brake friction gases, dust, and water - with center sections crafted from aluminum for weight reduction where it counts.

While the Extreme Plus front calipers are more powerful than products from most competitors, company engineers design and test them until they achieve the perfect balance of performance and control. This means using superior materials and designs thoroughly in all areas of construction, not saving pennies where the eye will not notice. For example, calipers are radially mounted to maintain greater stiffness under load - ensuring pads stay in alignment with the rotor and make a more even, superior level of contact. Calipers also feature stainless steel pistons, caliper attachment brackets, and vibration dampening springs to ensure freedom from corrosion deterioration. Pistons within each caliper are staggered in size to minimize pad taper and uneven pad wear, so you'll get more usable brake life out of pads. Caliper housings feature a durable red powder coat finish that is extremely heat resistant, and the ceramic brake pads also feature racing-grade backing plates that more effectively prevent heat buildup.

Baer matches the level of racing-grade calipers and rotors with ceramic brake pads that come pre-loaded inside each caliper. Used in championship racing where 200 mile-per-hour speeds quickly generate blistering heat, ceramic brake pads offer the natural ability to stay cool under the most severe conditions. When ceramic brake pads are combined with perforated rotors, heat buildup is reduced so extensively that brake fade rarely occurs due to fluid reaching boiling temperature. Ceramic brake pads are far quieter due to their higher resonant frequency undetectable by human ears, so squealing is not an issue. And finally, ceramic compounds last longer and produce finer, less obtrusive dust that does not stick to most wheel surfaces. You don't need a high-performance vehicle to enjoy the benefits these brake kits offer, and you might find your new car dealer charging a similar price for OE brakes while giving you less.

Brand:
Part Number:
4301356B
UPC:
844165046479
