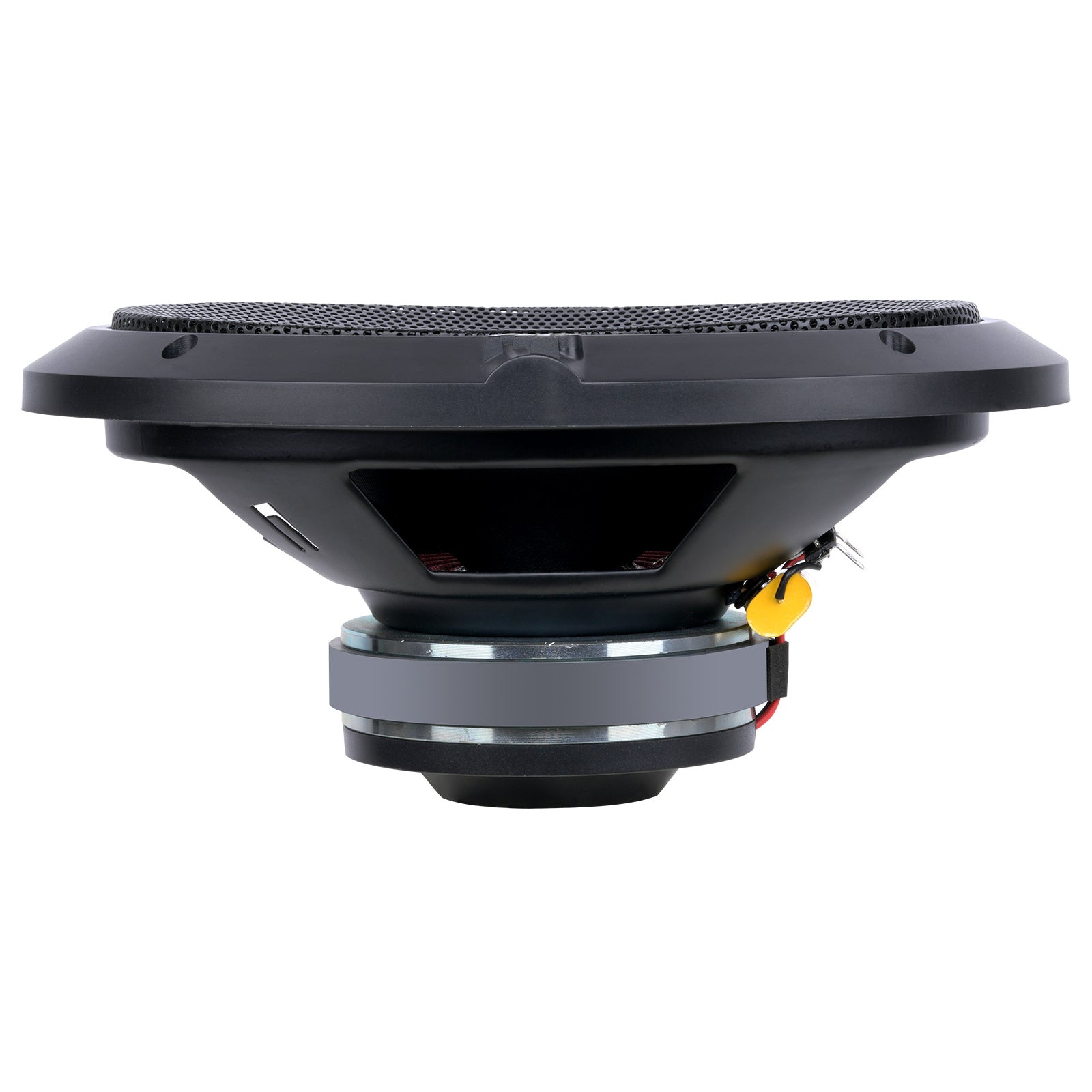

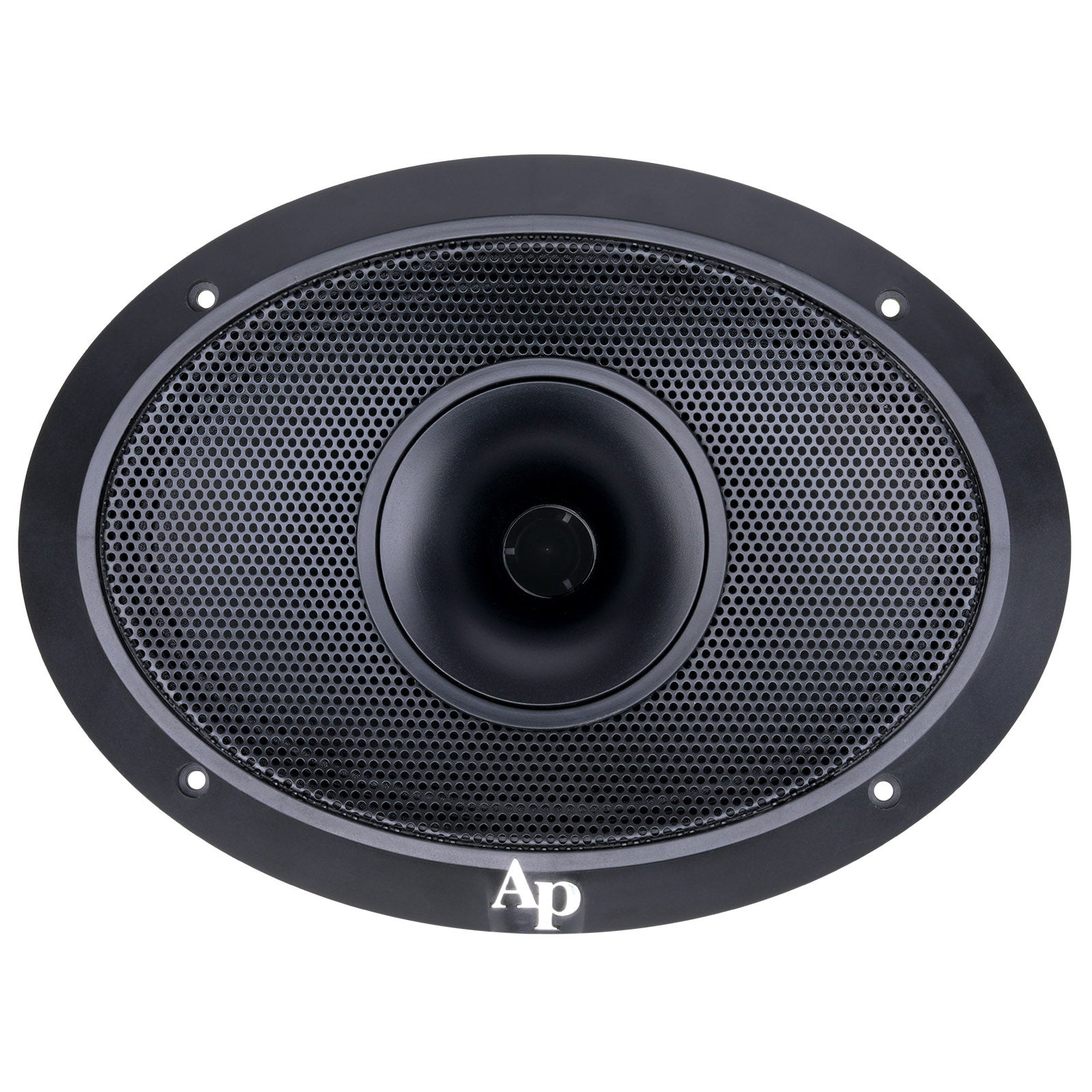

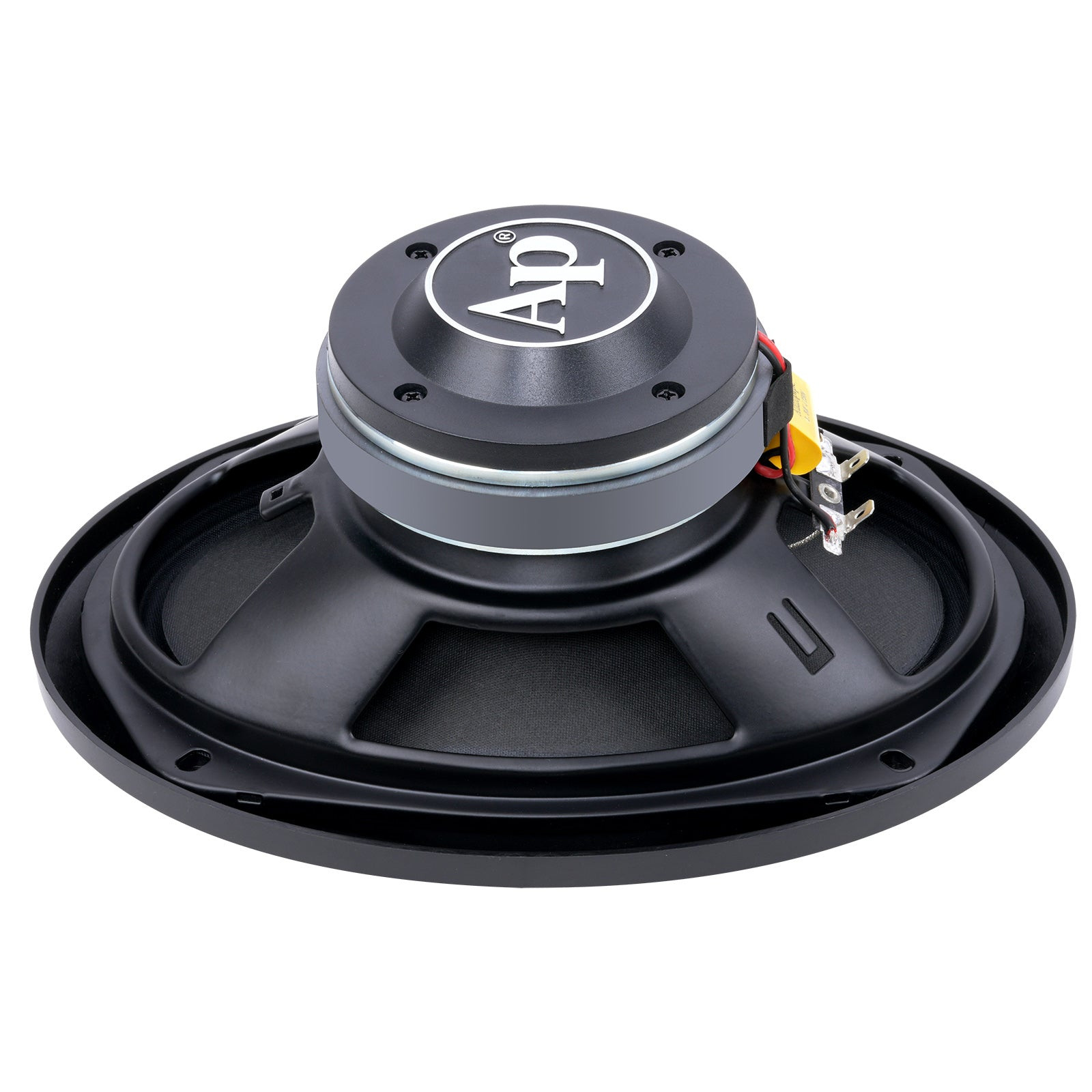

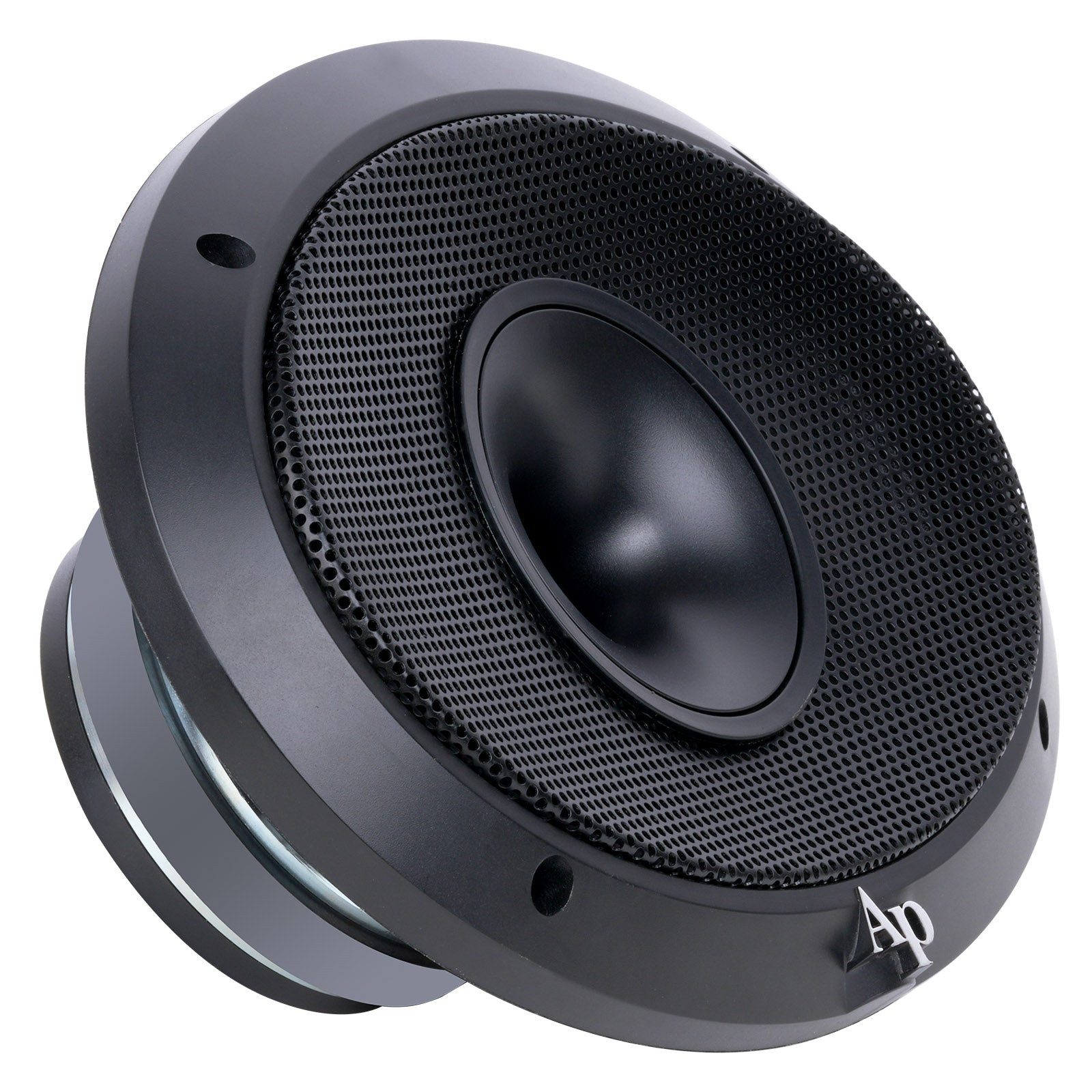

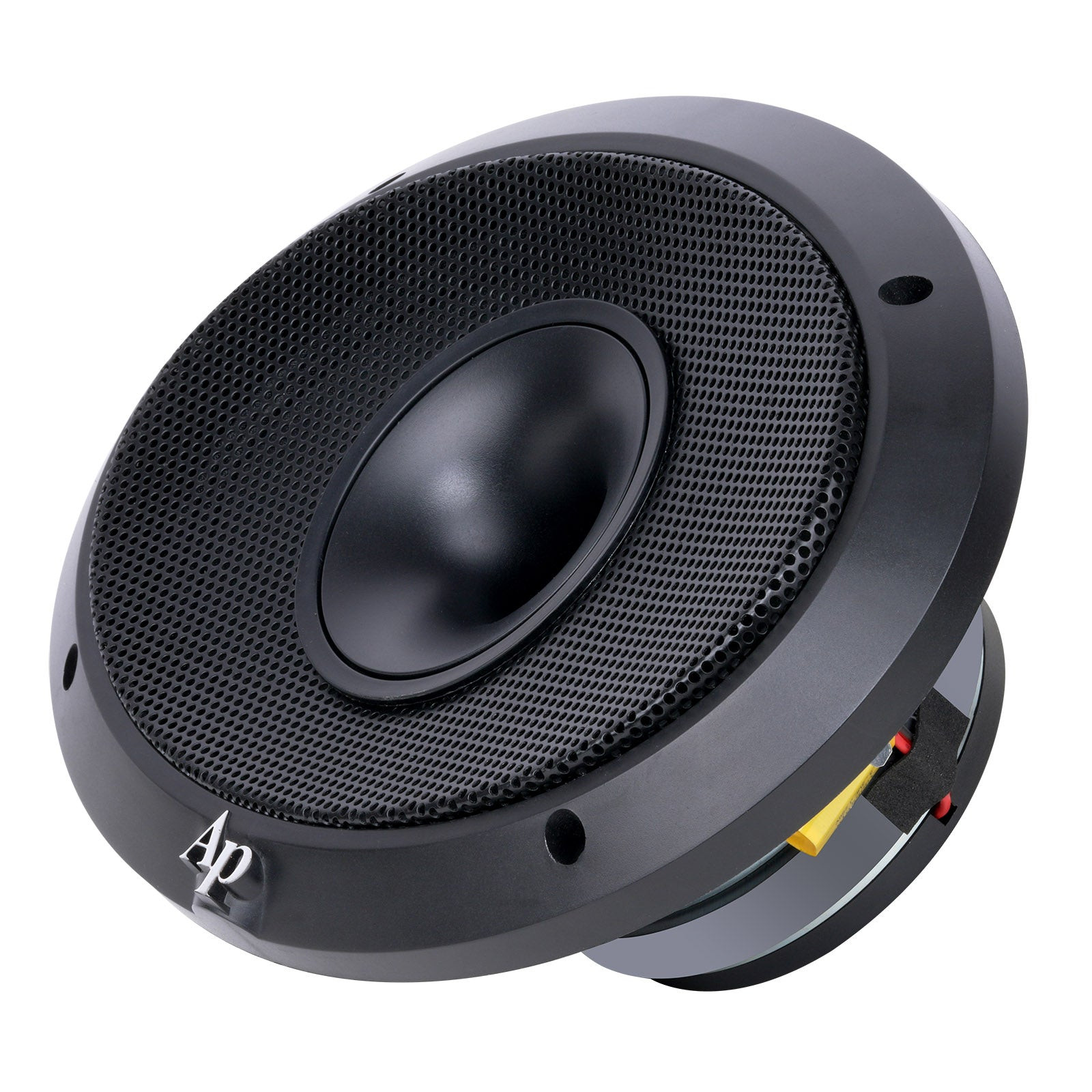

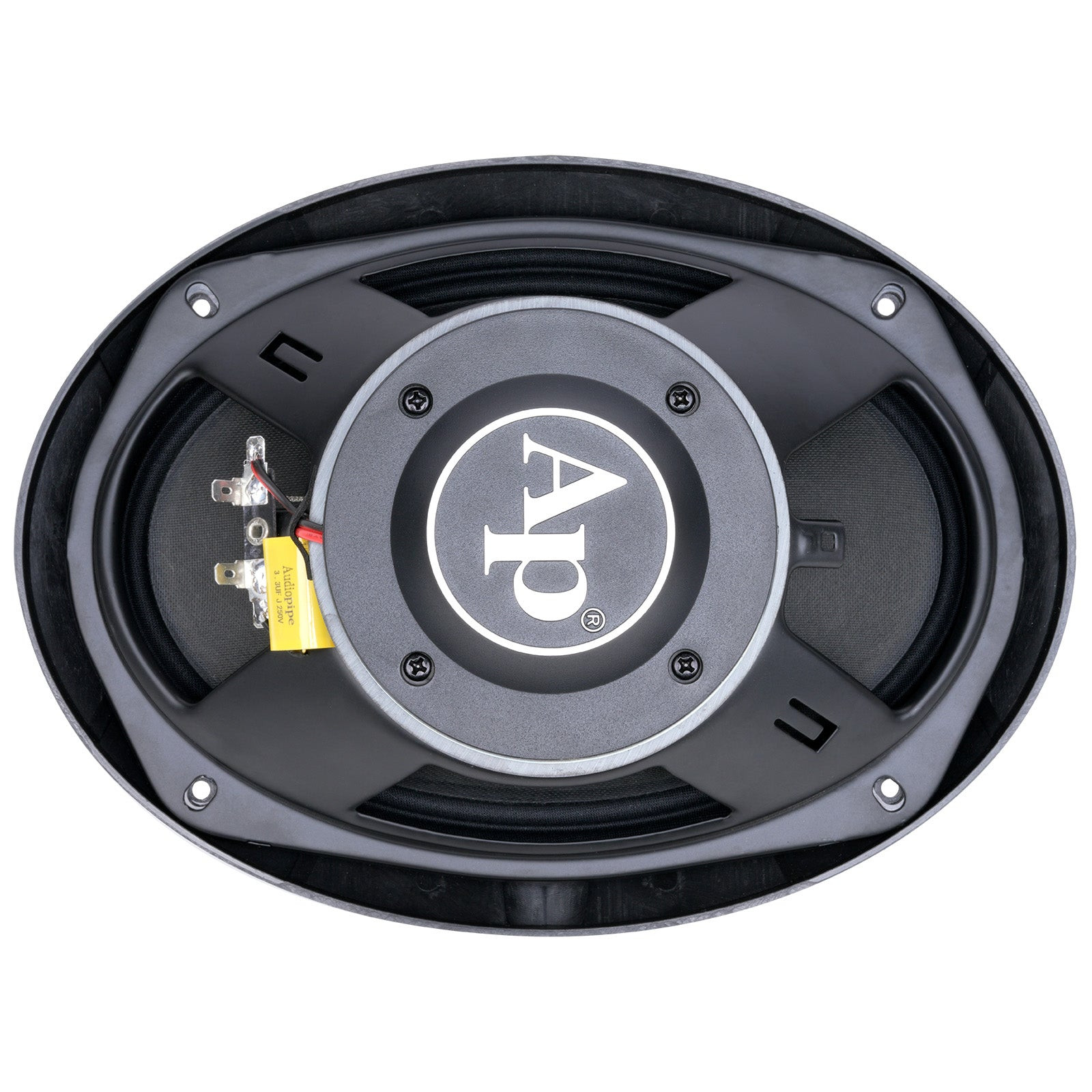

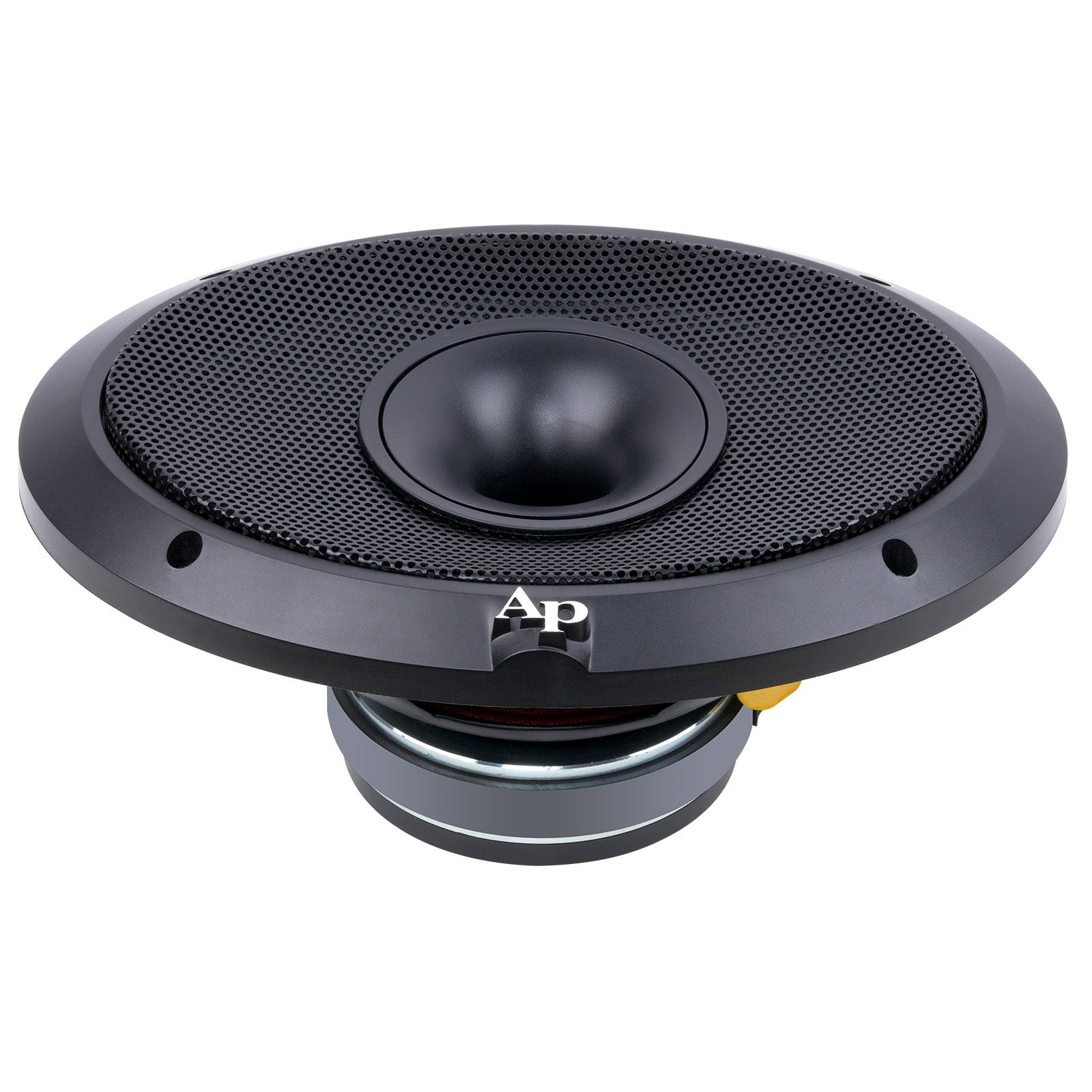

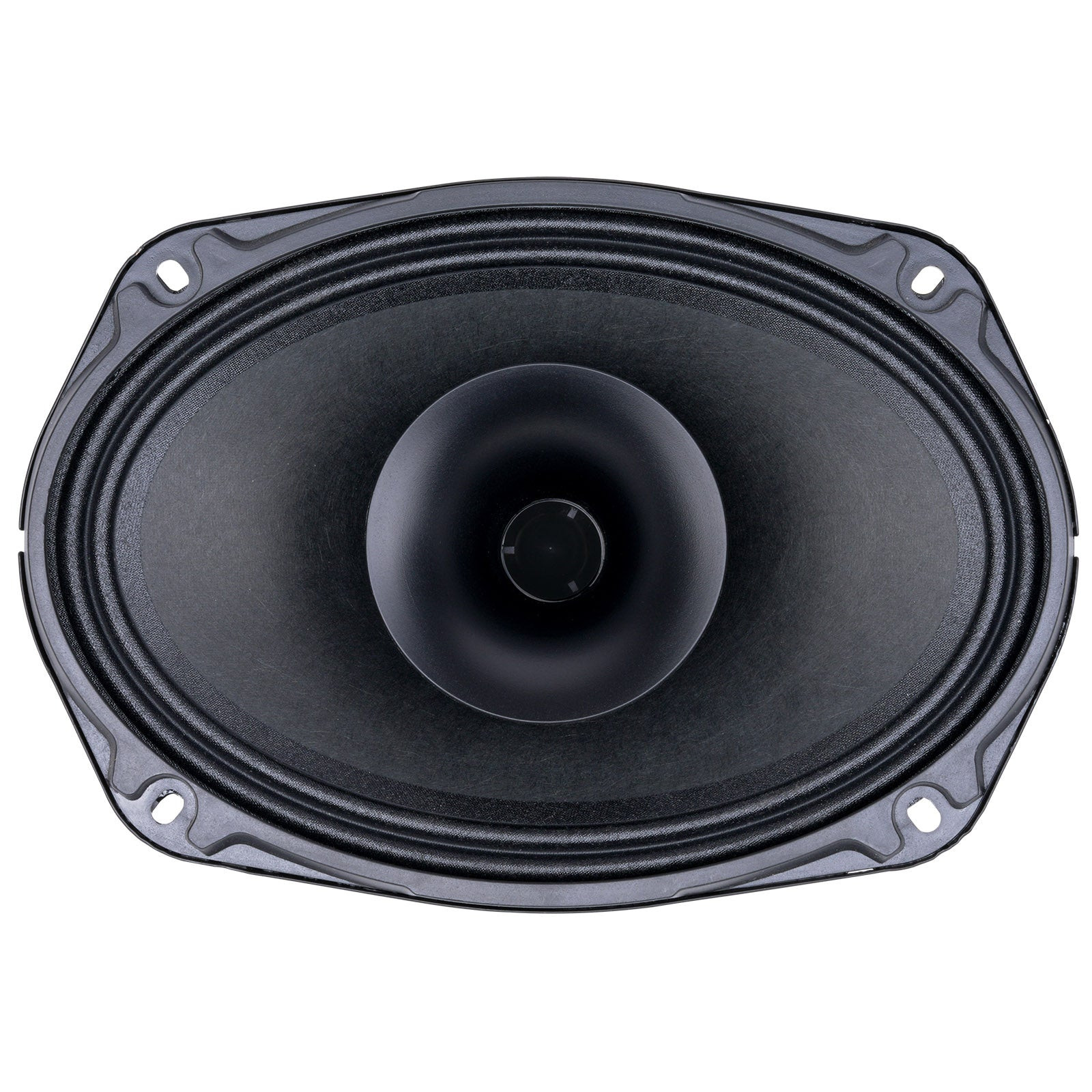

Audiopipe® APMB-698G-CHF - 6 X 9" Compression Horn Mid-Range Loudspeaker

0 reviews|Item # mpn5294693310

Universal Fit

Not Vehicle Specific

Authorized Dealer

$54.99

In Stock (6) - Ships in 24 to 48 hrs

Have a Question? Ask a Specialist

888-584-4732Live Chat

Vehicle Fitment

This part is universal

Features

PROFESSIONAL MID-RANGE PERFORMANCE: A 2-way coaxial design combines a high-output mid-range driver with a precision-loaded compression horn, delivering balanced acoustics with exceptional clarity across vocals and instruments
HIGH-POWER HANDLING: Supports 200W RMS / 400W PMPO for distortion-free audio even at peak volumes, making it ideal for demanding environments

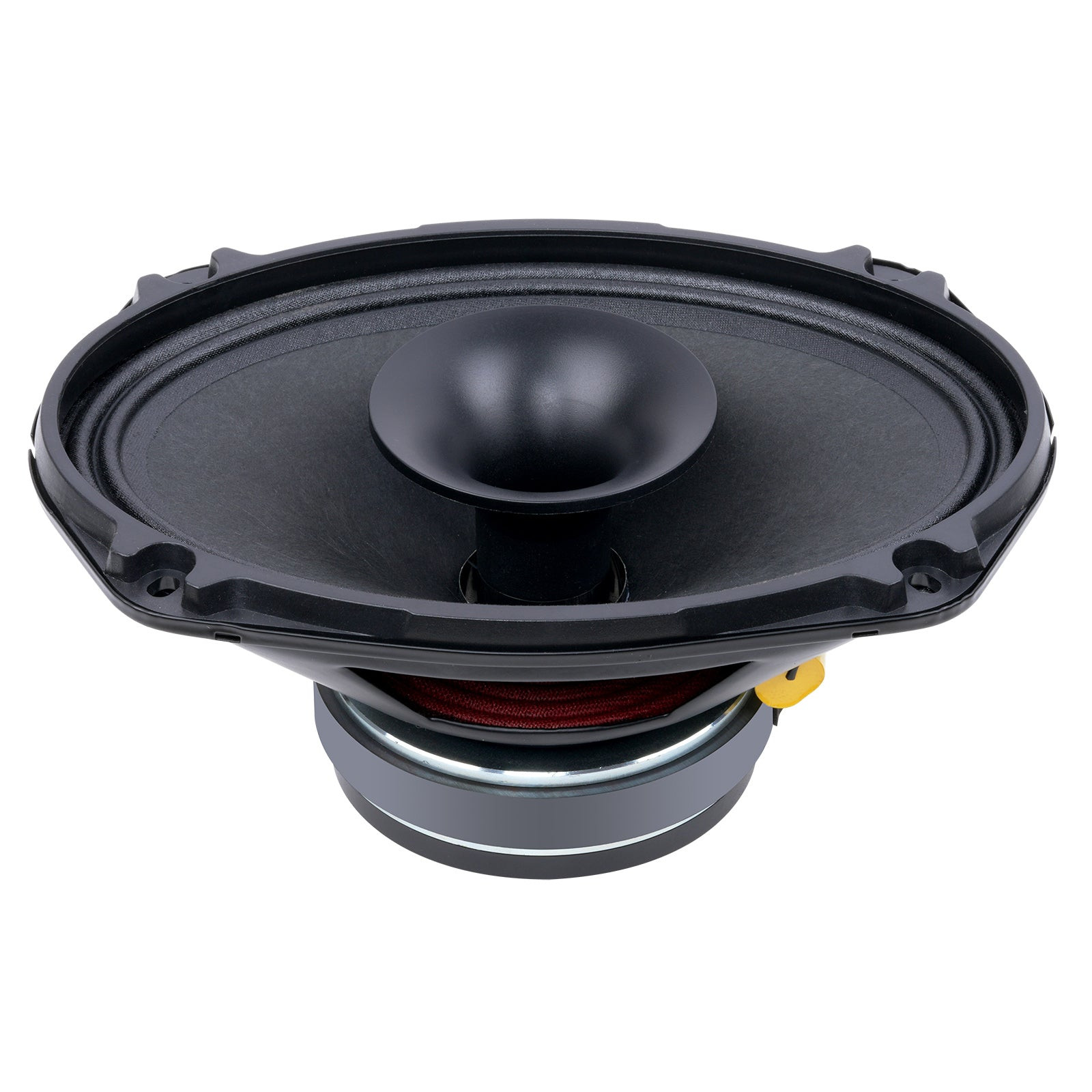

BUILT-IN COMPRESSION HORN DRIVER: The integrated 3" horn enhances high-frequency projection, while the replaceable design allows easy upgrades or maintenance without replacing the entire unit
FLAT STEEL BASKET: Ultra-slim, rigid construction ensures compatibility with most 6x9" openings (e.g., car door panels) for hassle-free installation
PROTECTIVE GRILL INCLUDED: Durable steel grill shields the driver from debris and impacts while maintaining acoustic transparency
PEAK POWER: 400 Watts Power (P.M.P.O.)
CONTINUOUS POWER: 200 Watts Power (R.M.S.)
FREQUENCY RESPONSE: 80Hz–20kHz (±3dB)
SENSITIVITY: 91dB
IMPEDANCE: 4 Ohms
VOICE COIL: 1.5" Kapton
HORN DIAMETER: 3"
MAGNET: 18 Oz Ferrite + Neodymium Hybrid
MOUNTING DEPTH: 98mm [3-7/8"]
SOLD INDIVIDUALLY:

Product Details

Universal 6 X 9" Compression Horn Mid-Range Loudspeaker by Audiopipe®. Sold individually. Transform your sound system with the APMB-698G-CHF 6x9" Compression Horn Mid-range Loudspeaker, engineered to deliver crystal-clear audio with robust power handling. Designed for seamless integration into tight spaces, its shallow profile and advanced components ensure professional-grade performance for car audio, stage setups, and commercial installations.

Audiopipe® - 2021 Product Catalog Audiopipe Authorized Dealer

Brand:

Audiopipe

Part Number:

APMB-698G-CHF

UPC:

784644235706

Alternate MPN:

APMB698GCHF

Warranty

When purchased from an authorized Audiopipe Dealer, this product is warranted against all defects in material and workmanship for a period of one year from the original date of purchase. The conditions of this warranty and the extent of Audiopipe's responsibility under this warranty are as follows:

Proof of the date of purchase will be required for warranty service of this product.
This warranty will become void if service is performed by anyone other than an approved Audiopipe Warranty Service Center.
This warranty does not apply to any product which has been subject to misuse, neglect, involved in an accident or has had the serial number altered, defaced, and/or repaired or has been connected, installed, adjusted and/or repaired other than in accordance with the instructions furnished by Audiopipe Inc.
This warranty does not cover static or electrical interference, tape head cleaning or space adjustments or the labor costs associated with the reinstallation of the unit for repair.
The sole responsibility of Audiopipe Inc. under this warranty shall be limited to the repair or replacement at the sole discretion of Audiopipe Inc.
If it becomes necessary to send the product or any defective part to Audiopipe Inc. or an Authorized Warranty Service Center, the product must be shipped in its original carton or an equivalent carton. Audiopipe Inc. will not assume responsibility for any loss or damage incurred in shipping.
All implied warranties except to the extent prohibited by applicable law shall have no greater duration than the warranty period set forth above. Under no circumstances shall Audiopipe Inc. be liable for any loss or damage, direct or consequential, or exclusions or limitations of the incidental or consequential damages arising out of the use or inability to use the product because some states do not allow limitation on how long an implied warranty lasts. The above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other rights, which vary from state to state.

Magnuson-Moss Warranty Act:

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)) Learn More
