Arc Lighting® BB6011D - 15" Work Bar Strobe

0 reviews|Item # mpn5215418714
Universal Fit
Fitment notes:
  • Not Vehicle Specific
Authorized Dealer
$206.49
In Stock (9) - Ships Tomorrow 06.11.26
Have a Question? Ask a Specialist
800-505-3274Live Chat

Vehicle Fitment

This part is universal

Specifications

Compliance
SAE J845 CLASS 1, California Title 13 and R10 requirements
LED Count
144 pcs
Patterns
78 Flash Patterns
Voltage
10~30 V DC
Avg. Current
5.5A @12V DC (varies with flash pattern)
Avg. Power
70 W (varies with flash pattern)
Max. Current
6A @12V DC
Max. Power
76 W

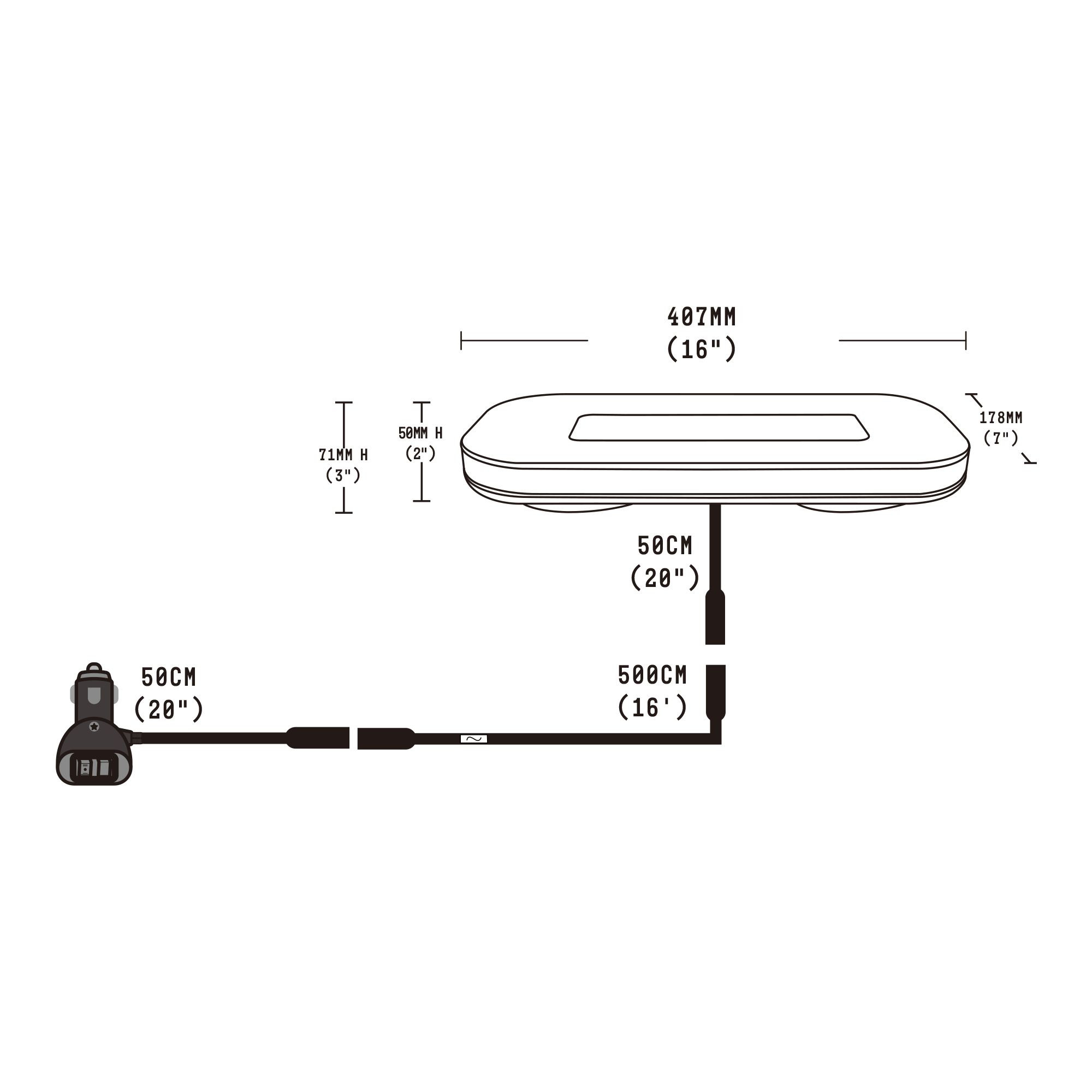

Wires Length Light Bar to connector
16 Feet
Wires Length Connector to cigarette plug
5 Feet
Recommended Fuse
10 Amps
Lens Color
Clear
LED Color
Amber & Green
Operating Temperature
-40°F to + 149°F
IP Rating
IP69K
Dim
1.5" H x 7″ W x 15″ L
Connector(s)
Circular Waterproof Connector
Material Type (Lens)
Ultra strong UV stabilized polycarbonate lens
Material Type (Body)
Polycarbonate
Material Type (Hardware)
304 Stainless Steel
Warranty
5 Year

Includes

  • 1x LED Light Bar
  • 2 x Vacuum Magnetic Mounts
  • 2 x Bolt Mount Studs and Hardware Kit
  • 1 x Bolt Mount Foam Gasket
  • 1 x 4 Pin Wire Pigtail
  • 1 x Cigarette Lighter Switch
  • 1 x 16′ Extension Wire

Features

  • Meets SAE J845 CLASS 1, California Title 13, EMC R10 Requirements
  • 12 and 24 VDC compatible
  • Sleek modern low profile design with 360° diffused lens
  • 360° strobe in green, amber and dual color
  • Seventy Eight (78) selectable flash patterns
  • Integrated cruise and flood mode
  • Integrated steady burn and strobe split mode
  • Comes with dash mount switch and plug with on/off switch and flash pattern toggle
  • Quick disconnect waterproof connectors allows for easy switching between temporary and permanent switch
  • Rugged magnetic feet and permanent stud mount included
  • Weatherproof IP69K rated
  • Five (5) year warranty

Product Details

Universal 15" Work Bar Strobe (BB6011D) by Arc Lighting®. Mini Light Bar 15 Inch, Amber/Green, All In One Package (1EA). BUILTBRIGHT® Work Bar Strobe 15 is designed to incorporate a compact sleek design with the ultimate light output to meet the SAE CLASS I standard. This product also boasts major industry requirements such as IP69K, EMC R10 approvals and comes as standard with seventy eight (78) flash patterns including flood, strobe, split and full flood pattern. It features ultra bright latest generation LEDs under an all new, wide diffused lens with dual color options. The Work Bar Strobe 15 is available in a variety of mount options whether you require a permanent or temporary magnetic mount. It also comes with a cigarette plug switch and hard wire pigtail and switch panel, making it the one stop solution for emergency services, amber safety and commercial vehicles. The Work Bar Strobe 15 is designed tough enough for a fit-and-forget-it purpose and has a five (5) year warranty.

Part Number:
BB6011D
UPC:
732388002900
Alternate MPN:
BB6011D, ARLBB6011D
