Aeromotive® 18658 - Stealth Fuel Tank

0 reviews|Item # mpn358595297

Vehicle SpecificCannot Confirm Fitment

We need more information

Confirm Fitment

Notes:

This is a Race Only product that is to be used solely for competition. It cannot be used on vehicles that are operated on public streets, roads or highways. Its use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization. Any other use, including recreational off-road use, could be in violation of local, state and federal laws. Shipping Restriction: CA, NY, ME.

Authorized Dealer

$1,154.13

In Stock (2)

Have a Question? Ask a Specialist

888-577-6964Live Chat

Vehicle Fitment

Chevy

Specifications

Baffled Sump	No
Fitting Attachment 1	Female threads
Fitting Attachment 2	Female threads
Fitting Attachment 3	Female threads
Fuel Pump Included	Yes
Fuel Sump Welded on Tank	No
Hardware Included	No
Lock Ring Kit Included	No
Outlet Quantity	Three
Size	-6 AN O-ring
Capacity	18 Gallons
Flow Rate	90 GPH/340 LPH
Material	Steel
Finish	Silver Powdercoated
Quantity	1 Piece

Includes

Innovative baffling/tray system to control fuel slosh
Preinstalled GM 0-90 ohm sending unit

Features

Silver Powdercoat finish
EFI-style internal baffling
0-90 Ohm Universal Fuel Level Sending Unit
Black Anodized Pump Hanger Assembly
340 Stealth Fuel Pump (P/N 11140)
Pre-Pump Filter Sock Assembly
(3) ORB-06 Ports - Outlet, Return and Vent

Product Details

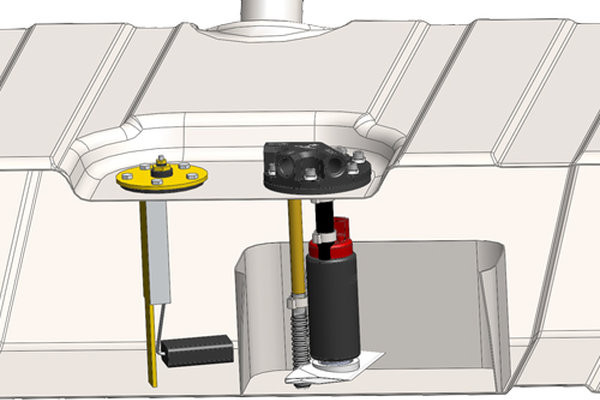

Stealth Fuel Tank by Aeromotive®. Why an Aeromotive 340 Stealth Fuel Tank? These Aeromotive 340 Stealth fuel tanks feature our ground breaking 340 Stealth electric fuel pump mounted to our CNC machined, billet aluminum hat and hanger assembly. With an incredible 340 lph flow, using a turbine pumping mechanism for increased durability and quiet operation, the Stealth Tank is equipped with the most proven, powerful, quiet operating fuel pump available in it’s class. All Aeromotive Stealth fuel tanks feature an innovative baffle and tray design to control fuel slosh, ensuring good street drivability even even at lower fuel levels. A fuel level sending unit with the correct ohm rating for the factory gauge in the dash comes pre-installed. The 340 Stealth pump has its own pre-pump filter sock for protection and is supported by a billet hat with robust electrical bulkhead connections and ORB-06 outlet, return and vent ports, ensuring high flow capacity and a positive, leak free seal at any pressure.

Installation

Aeromotive® - Stealth Fuel Tank Installation Instructions

Aeromotive is here with excellent products that are available at a competitive price. The company does its utmost to provide the best possible solutions for your needs. All products by Aeromotive are made with expert care and created by professionals to meet all your requirements. The company does not accept compromises when it is going about quality, so you can be sure that all products have only first-rate quality. With many years of manufacturing experience, Aeromotive is the name you can trust.

Aeromotive® - Stealth Fuel Tank Installation Instructions Aeromotive® - Information Aeromotive® - Warranty Aeromotive® - Catalogs Made In USA Aeromotive Authorized Dealer Product lines FAQ About us

Brand:

Aeromotive

Part Number:

18658

UPC:

684980004823

Warranty

Aeromotive warrants its products to be free from defects in materials or workmanship for a period of 1 year. The warranty period begins on the date the product is delivered. The warranty is granted to the end-user and applies to products which are purchased, installed, and used for the purposes for which they are originally designed. This warranty covers defects arising under normal use and does not cover malfunctions or failures resulting from misuse, abuse, neglect, improper installation, or incorrect maintenance. During the warranty period, Aeromotive will repair or replace, at no charge, a product that is defective in materials or workmanship. Aeromotive reserves the right to either repair or replace a defective component at its discretion and reserves the right to substitute an equivalent product under the terms of this warranty.
