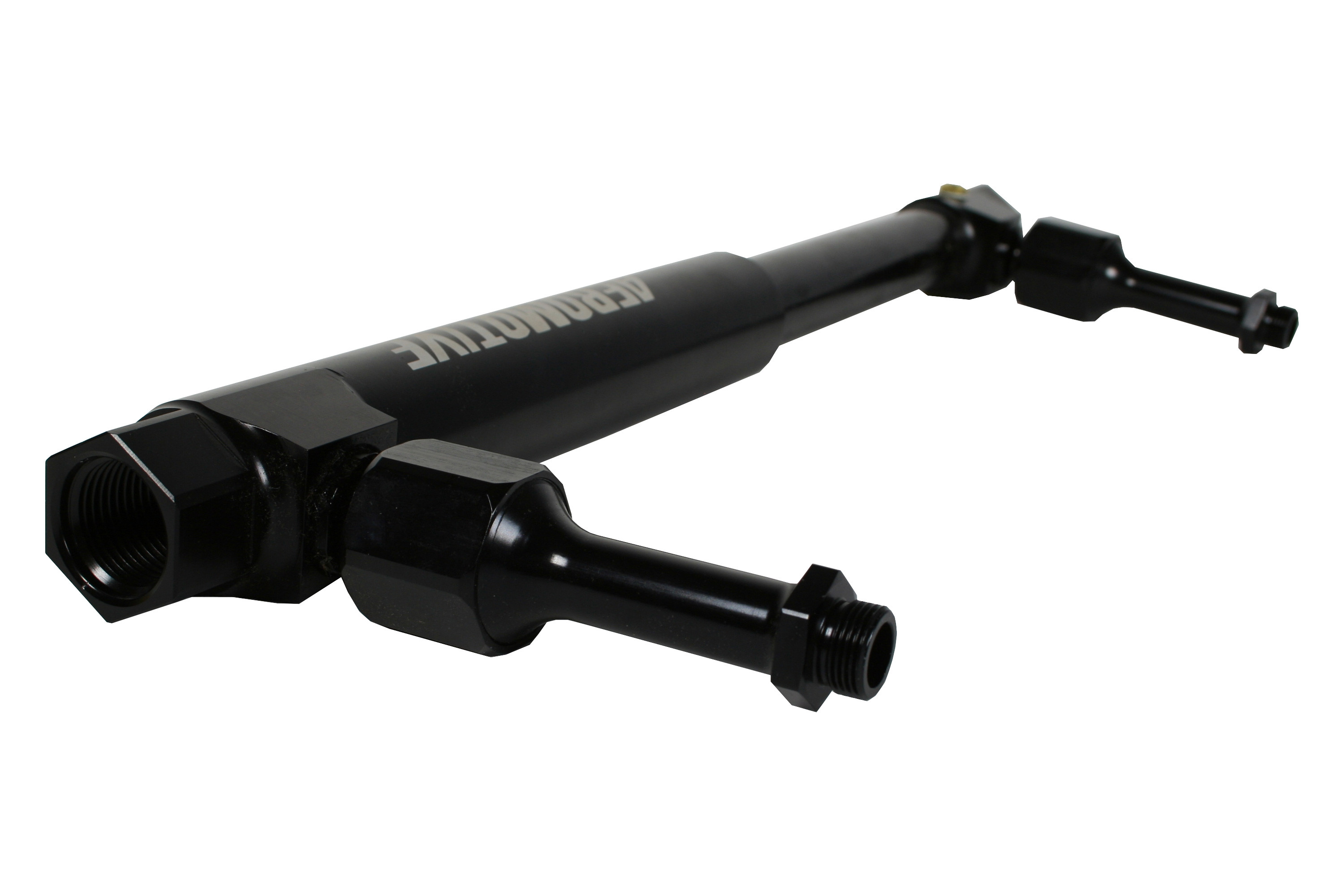

Aeromotive® 14202 - Fuel Log

Name: Aeromotive® 14202 - Fuel Log
Brand: Aeromotive
SKU: mpn5180248260
Price: 468.34 USD
Availability: InStock

0 reviews|Item # mpn5180248260

Universal Fit

Fitment notes:

Not Vehicle Specific

Notes:

For Use with Demon Carburetors
This is a Race Only product that is to be used solely for competition. It cannot be used on vehicles that are operated on public streets, roads or highways. Its use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization. Any other use, including recreational off-road use, could be in violation of local, state and federal laws. Shipping Restriction: CA, NY, ME

Authorized Dealer

$468.34

In Stock (5) - Ships in 24 to 48 hrs

See similar products

Have a Question? Ask a Specialist

800-505-3274Live Chat

Vehicle Fitment

This part is universal

Specifications

Adjustable	Yes
Fuel Filter Included	No
Fuel Line Inlet Size	-10 AN
Fuel Line Type	Aluminum log
Fuel Pressure Gauge Included	No
Gauge Port	Yes
Inlet Attachment	Female threads
Inlet Quantity	One
Maximum Center to Center Distance	13.450"
Minimum Center to Center Distance (in)	7.700"
Outlet Attachment	Male threads
Outlet Quantity	Two
Size	1/8" NPT
Float Style	Demon
Material	Billet Aluminum
Inlet and Outlet Size	9/16-24"
Finish	Black Anodized
Quantity	1 Piece

Features

Carburetor inlets swivel + or -20º in all directions for optimum clearance from valve cover and intake runners
Telescoping center line is 7.700″ to 13.450″ adapts to standard and high capacity float bowls
ORB-10 inlet and outlet ports can be adapted from AN-12 to AN-06 with available Aeromotive ORB port fittings
Two 1/8″ NPT ports for gauges and/or pressure transducers
1.056/.806″ ID bore for high flow capacity
Type II bright-dip black anodized finish for durability and great looks

Product Details

Fuel Log by Aeromotive®. Why an Aeromotive 200 Stealth Fuel Tank? These Aeromotive 200 Stealth fuel tank features our 200 LPH Stealth electric fuel pump mounted to our CNC machined, billet aluminum hat and hanger assembly. With 200 lph flow, using a turbine pumping mechanism for increased durability and quiet operation, the Stealth Tank is equipped with the most proven, capable, quiet operating fuel pump available in it’s class. All Aeromotive Stealth fuel tanks feature an innovative baffle and tray design to control fuel slosh, ensuring good street drivability even even at lower fuel levels. A fuel level sending unit with the correct ohm rating for the factory gauge in the dash comes pre-installed. The 340 Stealth pump has its own pre-pump filter sock for protection and is supported by a billet hat with robust electrical bulkhead connections and ORB-06 outlet, return and vent ports, ensuring high flow capacity and a positive, leak free seal at any pressure.

Aeromotive is here with excellent products that are available at a competitive price. The company does its utmost to provide the best possible solutions for your needs. All products by Aeromotive are made with expert care and created by professionals to meet all your requirements. The company does not accept compromises when it is going about quality, so you can be sure that all products have only first-rate quality. With many years of manufacturing experience, Aeromotive is the name you can trust.

Aeromotive® - Information Aeromotive® - Warranty Aeromotive® - Catalogs Made In USA Aeromotive Authorized Dealer Product lines FAQ About us

Brand:

Aeromotive

Part Number:

14202

UPC:

684980001303

Warranty

Aeromotive warrants its products to be free from defects in materials or workmanship for a period of 1 year. The warranty period begins on the date the product is delivered. The warranty is granted to the end-user and applies to products which are purchased, installed, and used for the purposes for which they are originally designed. This warranty covers defects arising under normal use and does not cover malfunctions or failures resulting from misuse, abuse, neglect, improper installation, or incorrect maintenance. During the warranty period, Aeromotive will repair or replace, at no charge, a product that is defective in materials or workmanship. Aeromotive reserves the right to either repair or replace a defective component at its discretion and reserves the right to substitute an equivalent product under the terms of this warranty.
