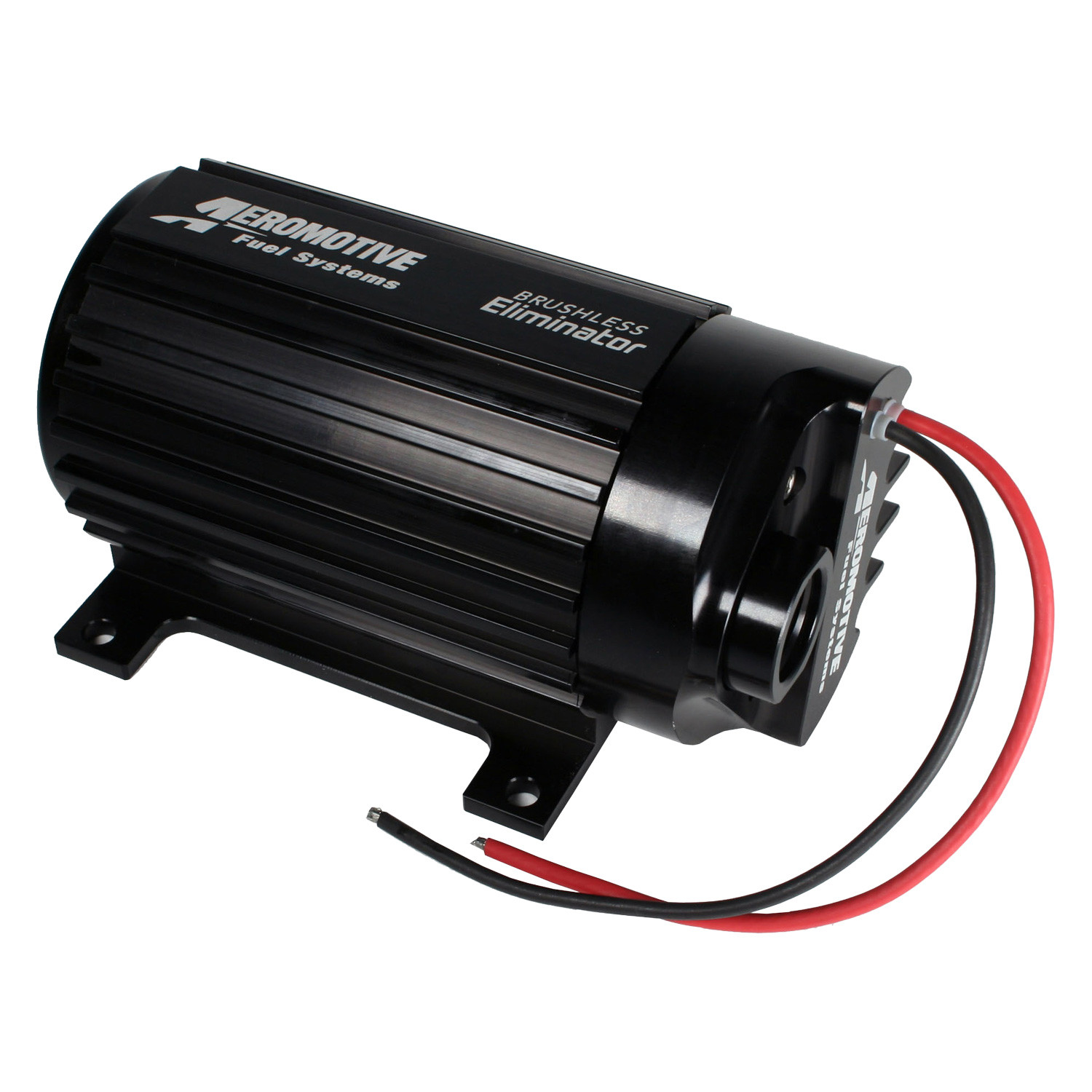

Aeromotive® 11184 - Brushless External Fuel Pump

0 reviews|Item # mpn4524446853
Universal Fit
Fitment notes:
  • Supports Fuel Injected Engines: Up to 1900 FWHP – naturally aspirated, Up to 1400 FWHP – forced air induction
  • Supports Carbureted Engines: Up to 2300 FWHP – naturally aspirated, Up to 1700 FWHP – forced air induction.
Notes:
  • This is a Race Only product that is to be used solely for competition. It cannot be used on vehicles that are operated on public streets, roads or highways. Its use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization. Any other use, including recreational off-road use, could be in violation of local, state and federal laws. Shipping Restriction: CA, NY, ME.
Authorized Dealer
$1,143.11
In Stock (7) - Ships in 24 to 48 hrs
Have a Question? Ask a Specialist
800-505-3274Live Chat

Vehicle Fitment

This part is universal
  • Supports Fuel Injected Engines: Up to 1900 FWHP – naturally aspirated, Up to 1400 FWHP – forced air induction
  • Supports Carbureted Engines: Up to 2300 FWHP – naturally aspirated, Up to 1700 FWHP – forced air induction.

Specifications

Carb Rated Flow
1,300 lb/hr at 9 psi, 13.5 volts
EFI Rated Flow
1,000 lb/hr at 45 psi, 13.5 volts
Fuel Pump
Electric
Pressure
70 PSI

Features

  • E85 Compatible, reduce max FWHP by 30%
  • Lighter than the traditional Eliminator pump
  • Reduced current draw at higher, EFI pressures
  • Extended service life in methanol and ethanol
  • Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability
  • Quieter than the traditional Eliminator pump
  • ORB-12 inlet and ORB-10 outlet ports

Product Details

Brushless External Fuel Pump by Aeromotive®. Why an Aeromotive 200 Stealth Fuel Tank? These Aeromotive 200 Stealth fuel tank features our 200 LPH Stealth electric fuel pump mounted to our CNC machined, billet aluminum hat and hanger assembly. With 200 lph flow, using a turbine pumping mechanism for increased durability and quiet operation, the Stealth Tank is equipped with the most proven, capable, quiet operating fuel pump available in it’s class. All Aeromotive Stealth fuel tanks feature an innovative baffle and tray design to control fuel slosh, ensuring good street drivability even even at lower fuel levels.  A fuel level sending unit with the correct ohm rating for the factory gauge in the dash comes pre-installed.  The 340 Stealth pump has its own pre-pump filter sock for protection and is supported by a billet hat with robust electrical bulkhead connections and ORB-06 outlet, return and vent ports, ensuring high flow capacity and a positive, leak free seal at any pressure.

Aeromotive is here with excellent products that are available at a competitive price. The company does its utmost to provide the best possible solutions for your needs. All products by Aeromotive are made with expert care and created by professionals to meet all your requirements. The company does not accept compromises when it is going about quality, so you can be sure that all products have only first-rate quality. With many years of manufacturing experience, Aeromotive is the name you can trust.

Part Number:
11184
UPC:
684980009033
