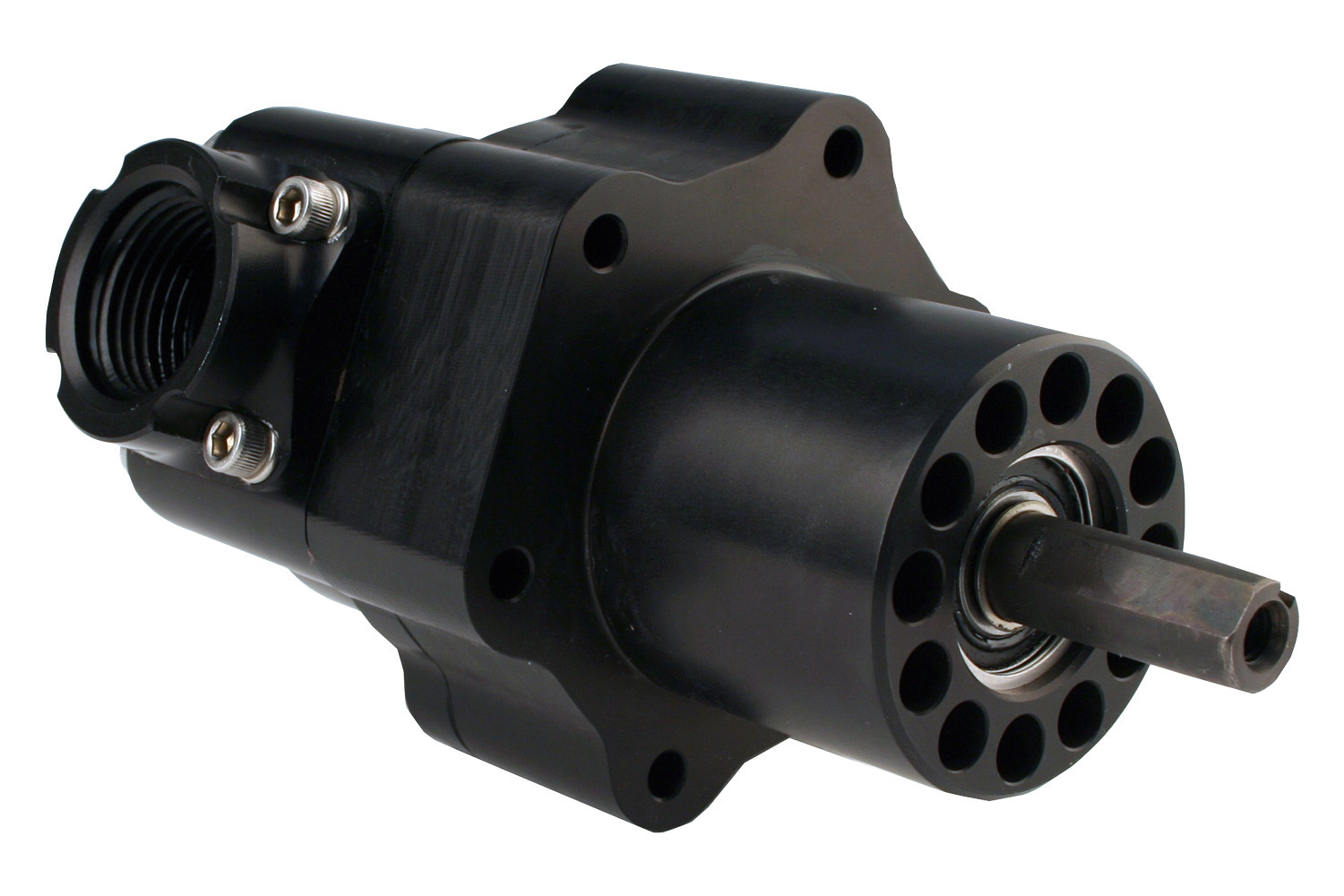

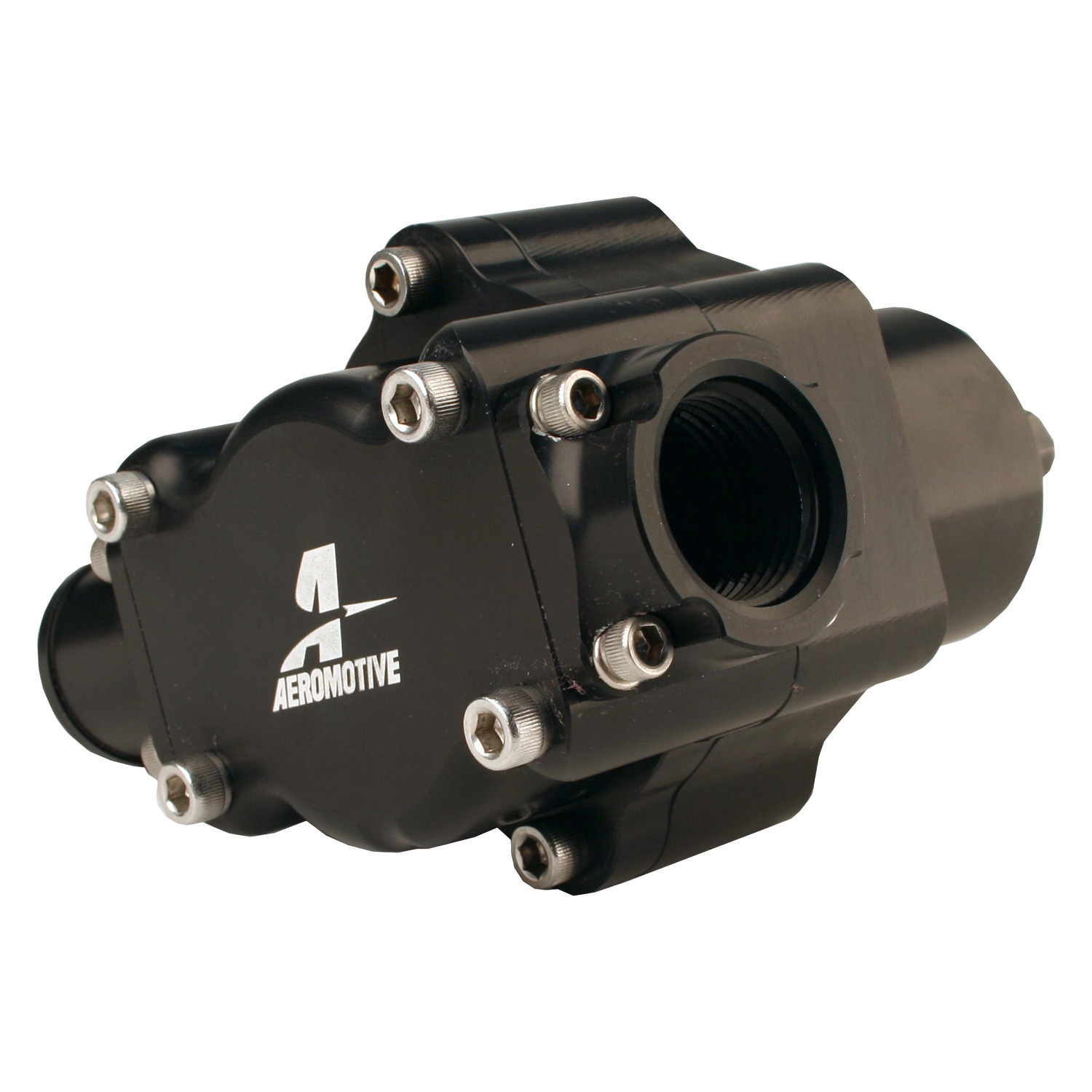

Aeromotive® 11115 - Belt Drive Mechanical Fuel Pump

Specifications

Features

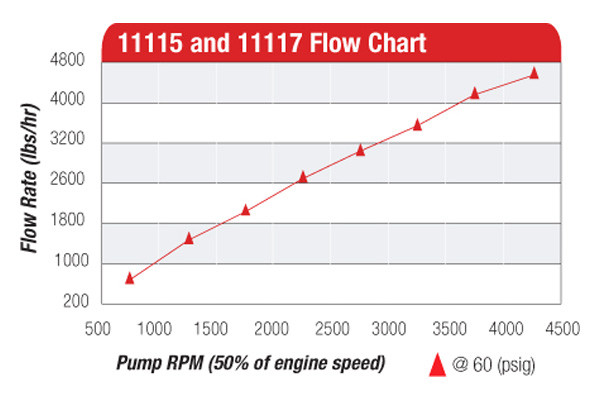

• Flows in excess of 4500 lbs/hr (over 12 GPM at 100 PSI)
• Supports over 5000 HP gas, 2500 HP methanol
• Type III hard coat anodize protects the 6061 T6 aircraft aluminum alloy housing
• Features removable ports with a 1.25" inlet and ORB-12 outlet port
• EFI applications require regulator P/N 13113
• Bracket (P/N 11705) and Cog Pulley (P/N 21109) sold separately

Product Details

Belt Drive Mechanical Fuel Pump by Aeromotive®. Why an Aeromotive 200 Stealth Fuel Tank? These Aeromotive 200 Stealth fuel tank features our 200 LPH Stealth electric fuel pump mounted to our CNC machined, billet aluminum hat and hanger assembly. With 200 lph flow, using a turbine pumping mechanism for increased durability and quiet operation, the Stealth Tank is equipped with the most proven, capable, quiet operating fuel pump available in it’s class. All Aeromotive Stealth fuel tanks feature an innovative baffle and tray design to control fuel slosh, ensuring good street drivability even even at lower fuel levels.  A fuel level sending unit with the correct ohm rating for the factory gauge in the dash comes pre-installed.  The 340 Stealth pump has its own pre-pump filter sock for protection and is supported by a billet hat with robust electrical bulkhead connections and ORB-06 outlet, return and vent ports, ensuring high flow capacity and a positive, leak free seal at any pressure.

Installation
